Stock Status: 1x unit in stock
Cold-start capable
Provides temporary battery power when the utility power is out.
Energy meter
Provides actual kilowatt hours of usage for energy conscious users.
Green mode
Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
High online efficiency
Reduces utility costs, generates less heat.
Intuitive LCD interface
Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
Predictive replace battery date
Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
Pure sine wave output on battery
Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
Sequenced network shutdown and reboot
Customize network shutdown and reboot sequence of connected servers and UPSs.
Single switched outlet group
Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
SmartConnect
Innovative, easy to use remote monitoring feature that provides automatic notifications, firmware updates, and advanced support services.
SmartSlot
Customize UPS capabilities with management cards.
StruxureWare Data Center Expert compatible
Enables centralized management via StruxureWare Data Center Expert.
Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.
Specs
| Weight & dimensions |
| Width |
197 mm |
| Depth |
544 mm |
| Height |
435 mm |
| Weight |
52.5 kg |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-15 - 45 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating altitude |
0 - 3000 m |
| Non-operating altitude |
0 - 15000 m |
| Ports & interfaces |
| AC outlet types |
C13 coupler, C19 coupler |
| Power plug |
C20 coupler |
| AC outlets quantity |
9 AC outlet(s) |
| Number of output IEC jumpers |
2 |
| USB port |
Y |
| SmartSlot |
Y |
| Battery |
| Battery technology |
Sealed Lead Acid (VRLA) |
| Typical backup time at full load |
5.1 min |
| Typical backup time at half load |
17.2 min |
| Battery life (max) |
5 year(s) |
| Battery recharge time |
3 h |
| Hot-swap battery |
Y |
| Automatic battery test |
Y |
| Cold start |
Y |
| Design |
| Form factor |
Tower |
| Product colour |
Black |
| Cable length |
1.83 m |
| LED indicators |
Status |
| Display |
LCD |
| RoHS compliance |
Y |
| Certification |
CE, CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE, REACH, PEP, EOLI |
| Features |
| UPS topology |
Line-Interactive |
| Output power capacity |
3 kVA |
| Output power |
2700 W |
| Waveform |
Sine |
| Input operation voltage (min) |
151 V |
| Input operation voltage (max) |
302 V |
| Input frequency |
50/60 Hz |
| Output operation voltage (min) |
220 V |
| Output operation voltage (max) |
240 V |
| Output frequency |
50/60 Hz |
| Automatic Voltage Regulation (AVR) |
Y |
| Surge energy rating |
365 J |
| Efficiency |
98.4% |
| Emergency Power Off (EPO) |
Y |
| Noise level |
53 dB |
| Audible alarm(s) |
Y |
| Auto-restart |
Y |
| Logistics data |
| Quantity per pallet |
9 pc(s) |
| Products per pallet |
9 pc(s) |
| Packaging data |
| Cables included |
RS-232, USB cable |
| Quick installation guide |
Y |
| Package width |
381 mm |
| Package depth |
762 mm |
| Package height |
699 mm |
| Package weight |
63.7 kg |
| Technical details |
| Sustainability certificates |
RoHS |
Features

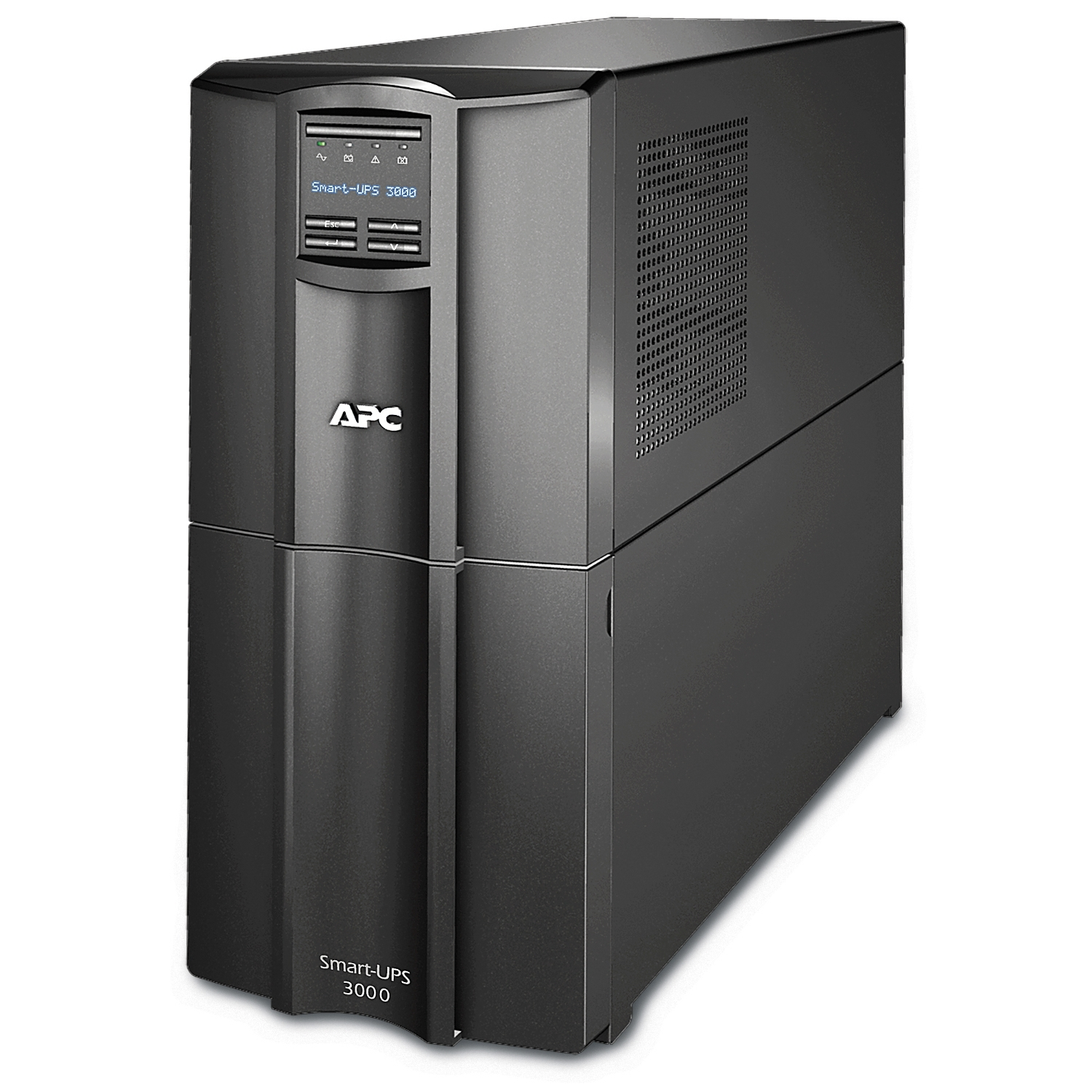

APC SMT3000IC. UPS topology: Line-Interactive, Output power capacity: 3 kVA, Output power: 2700 W. AC outlet types: C13 coupler, C19 coupler, Power plug: C20 coupler, AC outlets quantity: 9 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Typical backup time at full load: 5.1 min, Typical backup time at half load: 17.2 min. Form factor: Tower, Product colour: Black, Cable length: 1.83 m. Width: 197 mm, Depth: 544 mm, Height: 435 mm
Product Description
Cold-start capable
Provides temporary battery power when the utility power is out.
Energy meter
Provides actual kilowatt hours of usage for energy conscious users.
Green mode
Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
High online efficiency
Reduces utility costs, generates less heat.
Intuitive LCD interface
Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
Predictive replace battery date
Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
Pure sine wave output on battery
Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
Sequenced network shutdown and reboot
Customize network shutdown and reboot sequence of connected servers and UPSs.
Single switched outlet group
Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
SmartConnect
Innovative, easy to use remote monitoring feature that provides automatic notifications, firmware updates, and advanced support services.
SmartSlot
Customize UPS capabilities with management cards.
StruxureWare Data Center Expert compatible
Enables centralized management via StruxureWare Data Center Expert.
Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.
