Stock Status: 1x unit in stock

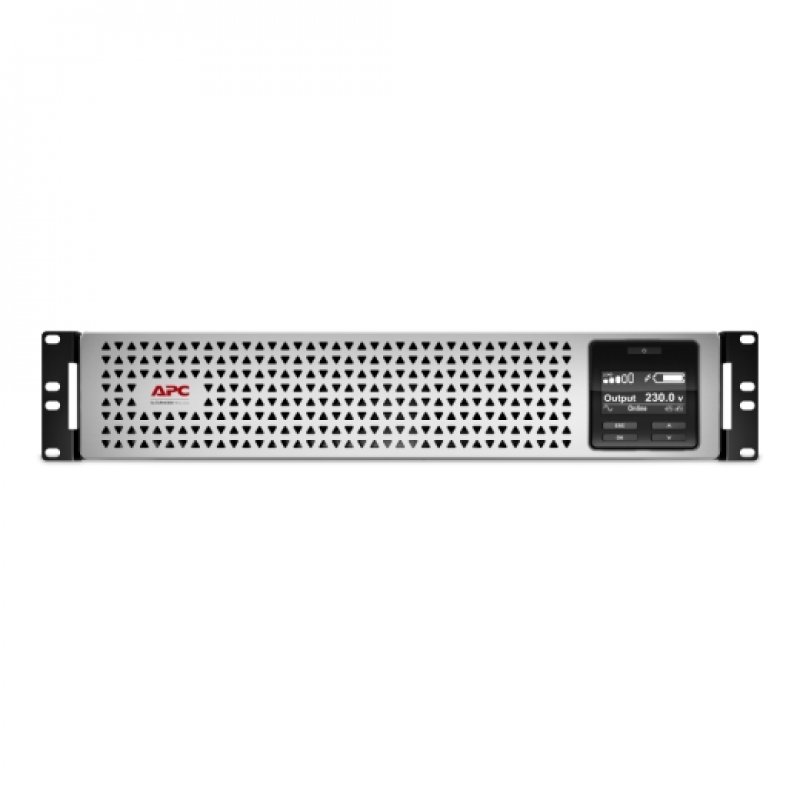

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 1000VA on-line 2U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with 1x IEC 320 C14 input and 8x IEC 320 C13 outlets. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 5-year warranty, and has to be used with an external Lithium-ion battery sold separately.
Specs
| Weight & dimensions |
| Width |
432 mm |
| Depth |
590 mm |
| Height |
85 mm |
| Weight |
17.5 kg |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-15 - 45 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Operating altitude |
0 - 3048 m |
| Non-operating altitude |
0 - 15240 m |
| Ports & interfaces |
| AC outlet types |
C13 coupler, C14 coupler |
| AC outlets quantity |
8 AC outlet(s) |
| USB port |
Yes |
| Serial ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| Design |
| Form factor |
Rackmount |
| Product colour |
Black |
| Rack capacity |
2U |
| International Protection (IP) code |
IP20 |
| Features |
| UPS topology |
Double-conversion (Online) |
| Output power capacity |
1 kVA |
| Output power |
900 W |
| Waveform |
Sine |
| Input operation voltage (min) |
80 V |
| Input operation voltage (max) |
240 V |
| Input frequency |
40 - 70 Hz |
| Output operation voltage (min) |
220 V |
| Output operation voltage (max) |
240 V |
| Output frequency |
50/60 Hz |
| Surge energy rating |
340 J |
| Heat dissipation |
400 BTU/h |
| Crest factor |
3:1 |
| Output voltage Total Harmonic Distortion (THD) |
2% |
| Noise level |
50 dB |
| Logistics data |
| Total carbon footprint (kg of CO2e) |
1788.84 |
| Packaging data |
| Package width |
810 mm |
| Package depth |
600 mm |
| Package height |
245 mm |
| Package weight |
28.2 kg |
| Certification |
| Certification |
CE, CE Mark, EAC, RCM, UK PSTI, VDE |
Features
APC Smart-UPS On-Line, 1000VA, Rackmount 2U, 230V, 8x C13 IEC outlets, SmartSlot, Extended runtime, W/ rail kit, W/O Lithium-ion external battery. UPS topology: Double-conversion (Online), Output power capacity: 1 kVA, Output power: 900 W. AC outlet types: C13 coupler, C14 coupler, AC outlets quantity: 8 AC outlet(s). Form factor: Rackmount, Product colour: Black, Rack capacity: 2U. Certification: CE, CE Mark, EAC, RCM, UK PSTI, VDE. Width: 432 mm, Depth: 590 mm, Height: 85 mm
Product Description
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 1000VA on-line 2U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with 1x IEC 320 C14 input and 8x IEC 320 C13 outlets. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 5-year warranty, and has to be used with an external Lithium-ion battery sold separately.
