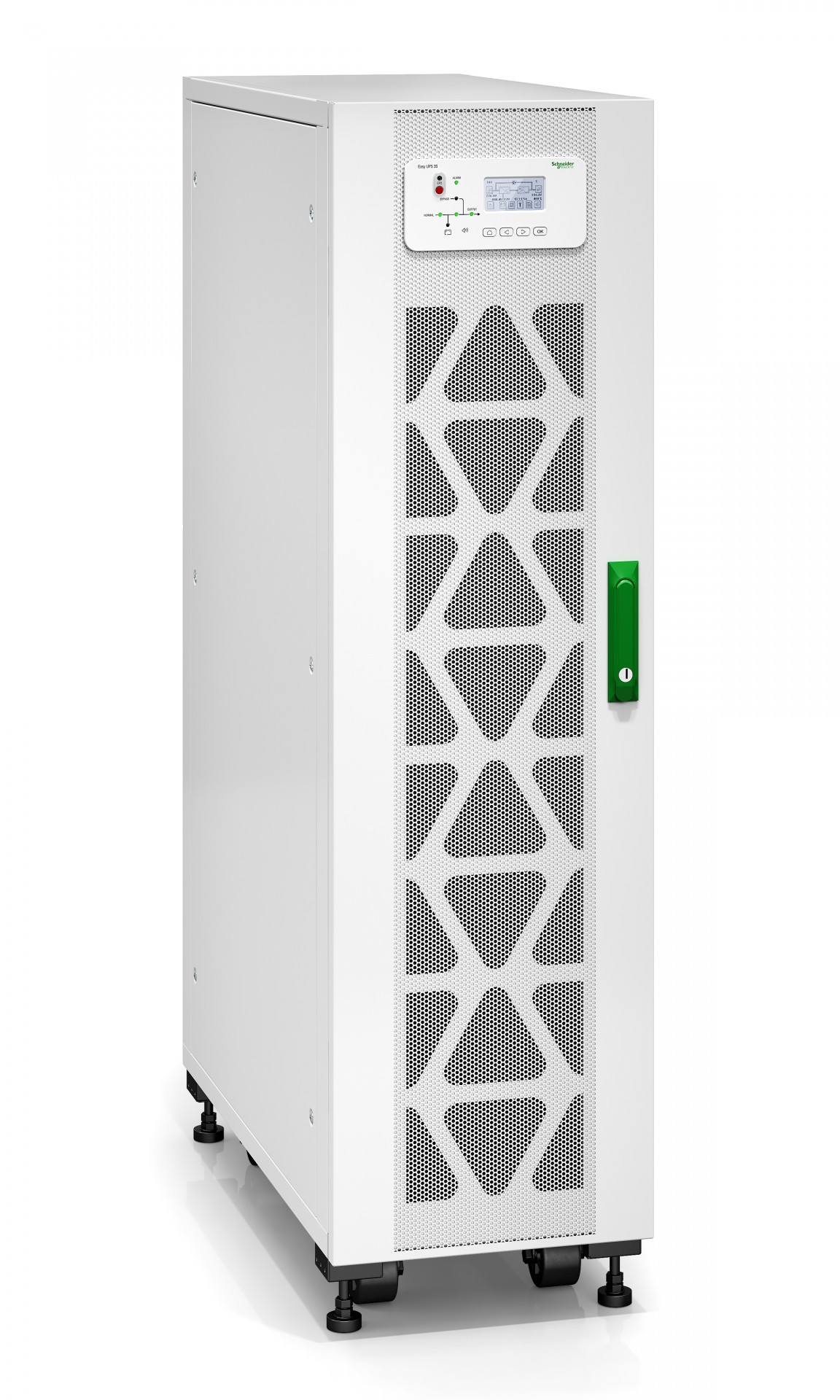

Apc - Smart Ups Online Easy Ups3s 20kva 400v 3:3 Ups High Tower In E3sups20khb
[E3SUPS20KHB]

Name: Apc - Smart Ups Online Easy Ups3s 20kva 400v 3:3 Ups High Tower In E3sups20khb
Brand: APC
SKU: E3SUPS20KHB
Price: 4424.00 GBP
Availability: InStock

Part Number: E3SUPS20KHB

Manufacturer: APC

Condition: New

Short Description:

Apc - Smart Ups Online E3sups20khb Easy Ups3s 20kva 400v 3:3 Ups

Apc - Smart Ups Online Easy Ups3s 20kva 400v 3:3 Ups High Tower In E3sups20khb

£4,424.00
£5,308.80 - Inc VAT

Stock Status: 1x unit in stock

Reviews

Specs

Weight & dimensions
Width	380 mm
Depth	928 mm
Height	1400 mm
Weight	122 kg
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 40 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 999.9 m
Non-operating altitude	0 - 15000 m
Other features
Output voltage	400 V
Battery
Battery technology	Sealed Lead Acid (VRLA)
Battery voltage	220 V
Number of batteries supported	3
Design
Form factor	Tower
Product colour	White
Display type	LED
International Protection (IP) code	IP20
Features
UPS topology	Double-conversion (Online)
Output power capacity	20 kVA
Output power	20000 W
Waveform	Pure sine
Input operation voltage (min)	304 V
Input operation voltage (max)	477 V
Input frequency	45/65 Hz
Output operation voltage (min)	380 V
Output operation voltage (max)	415 V
Output frequency	50/60 Hz
Maximum current	37 A
Number of input phases	3
Number of output phases	3
Input power factor	0.99
Output voltage Total Harmonic Distortion (THD)	3%
Input current Total Harmonic Distortion (THD)	3%
Logistics data
Harmonized System (HS) code	85078000
Packaging data
Package width	563 mm
Package depth	1014 mm
Package height	1640 mm
Package weight	158 kg
Certification
Compliance certificates	RoHS
Certification	CE, EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM, WEEE, REACH
Packaging content
Quick installation guide	Yes

Related Products

Refurbished Printers

Apc - Smart Ups Online Easy Ups 3s Modular Battery Cabinet In E3sxr6

APC Network Management Card 3 Ups Cards For Easy 3 Series AP9547 - eet01

Easy Ups 3s High Capacity Battery St E3sbth4 - WC01

Schneider Electric Galaxy VS Maintenance Bypass Panel 10-20kW 400V - Single Unit - Bypass Switch (wall Mountable) - White GVSBPSU10K20H - C2000

Features

APC Easy 3S. UPS topology: Double-conversion (Online), Output power capacity: 20 kVA, Output power: 20000 W. Battery technology: Sealed Lead Acid (VRLA), Battery voltage: 220 V. Form factor: Tower, Product colour: White, Display type: LED. Compliance certificates: RoHS, Certification: CE, EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM, WEEE, REACH. Width: 380 mm, Depth: 928 mm, Height: 1400 mm
