Stock Status: 1x unit in stock
High availability, ruggedized power protection for shipboard and other transportation applications.
Specs
| Weight & dimensions |
| Width |
130 mm |
| Depth |
660 mm |
| Height |
432 mm |
| Weight |
54.5 kg |
| Operational conditions |
| Operating temperature (T-T) |
0 - 55 °C |
| Storage temperature (T-T) |
-15 - 45 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating altitude |
0 - 3000 m |
| Non-operating altitude |
0 - 15000 m |
| Ports & interfaces |
| AC outlet types |
C13 coupler, C19 coupler |
| AC outlets quantity |
10 AC outlet(s) |
| Number of output IEC jumpers |
2 |
| Ethernet LAN (RJ-45) ports |
1 |
| Other features |
| Dimensions (WxDxH) |
130 x 660 x 432 mm |
| Nominal output voltage |
230 V |
| Nominal input voltage |
230 V |
| Package dimensions (WxDxH) |
603 x 980 x 347 mm |
| Battery |
| Battery technology |
Sealed Lead Acid (VRLA) |
| Battery recharge time |
2.5 h |
| Design |
| Form factor |
Rackmount |
| Product colour |
Black |
| Rack capacity |
3U |
| Cable length |
2.5 m |
| Features |
| Output power capacity |
2.2 kVA |
| Output power |
1540 W |
| Input operation voltage (min) |
100 V |
| Input operation voltage (max) |
280 V |
| Input frequency |
50/60 Hz |
| Output operation voltage (min) |
220 V |
| Output operation voltage (max) |
240 V |
| Surge energy rating |
480 J |
| Efficiency |
92% |
| Crest factor |
3:1 |
| Emergency Power Off (EPO) |
Yes |
| Output voltage Total Harmonic Distortion (THD) |
3% |
| Noise level |
55 dB |
| Audible alarm(s) |
Yes |
| Logistics data |
| Harmonized System (HS) code |
85078000 |
| Packaging data |
| Package weight |
63.6 kg |
| Certification |
| Compliance certificates |
RoHS |
| Certification |
CE, DNV, EN 50091-1, EN 50091-2, EN 55022 Cl. A, EN 60950, EN 61000-3-2. |
Features

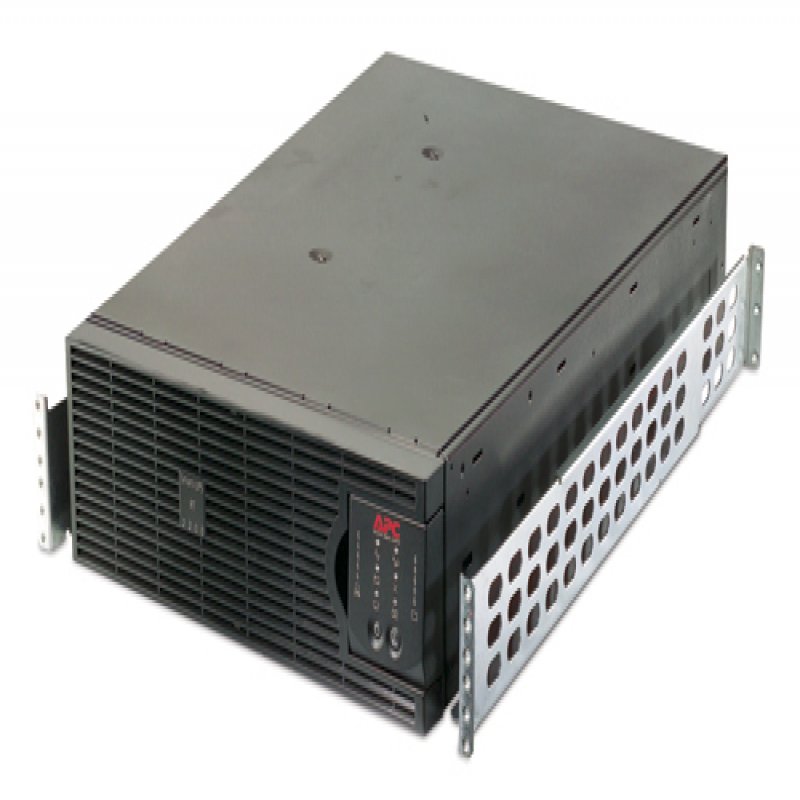

APC Smart-UPS RT 2200VA 230V - Marine. Output power capacity: 2.2 kVA, Output power: 1540 W, Input operation voltage (min): 100 V. AC outlet types: C13 coupler, C19 coupler, AC outlets quantity: 10 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery recharge time: 2.5 h. Form factor: Rackmount, Product colour: Black, Rack capacity: 3U. Compliance certificates: RoHS, Certification: CE, DNV, EN 50091-1, EN 50091-2, EN 55022 Cl. A, EN 60950, EN 61000-3-2.
Product Description
High availability, ruggedized power protection for shipboard and other transportation applications.
