Stock Status: 1x unit in stock

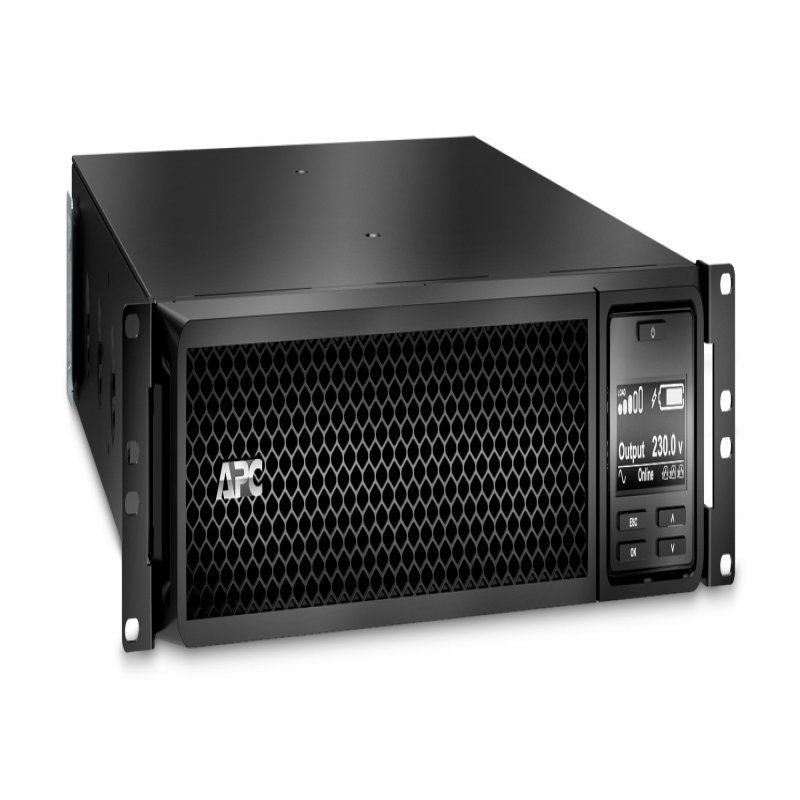

A versatile UPS developed for unstable power conditions worldwide
Smart-UPS On-Line provides high-density, double-conversion, online power protection for servers, voice/data networks, medical labs, and light industrial applications. The Smart-UPS On-Line is capable of supporting loads from 2.2 kVA – 10 kVA in a rack/tower convertible chassis. The 6 kVA, 8 kVA, and 10 kVA models feature unity output power factor enabling them to support power-hungry blade servers or heavily loaded equipment racks. When business-critical systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with multiple battery packs to meet aggressive runtime demands.
The included PowerChute Network Shutdown management software provides unattended graceful shutdown of network operating systems. Models 5 kVA to 10 kVA include an integrated network management card for remote management. The entire Smart-UPS On-Line family provides value to customers with demanding power conditions, including a very wide input voltage window, extremely tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.
Specs
| Weight & dimensions |
| Width |
432 mm |
| Depth |
635 mm |
| Height |
85 mm |
| Weight |
31.3 kg |
| Package width |
599 mm |
| Package depth |
871 mm |
| Package height |
246 mm |
| Package weight |
39.3 kg |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-15 - 45 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating altitude |
0 - 3000 m |
| Non-operating altitude |
0 - 15000 m |
| Ports & interfaces |
| AC outlet types |
C13 coupler, C19 coupler |
| Power plug |
C20 coupler |
| USB port |
Y |
| Serial interface |
Y |
| Serial interface type |
RJ-45 |
| SmartSlot |
Y |
| Other features |
| Output voltage |
230 V |
| Battery |
| Battery technology |
Sealed Lead Acid (VRLA) |
| Battery capacity |
505 VAh |
| Typical backup time at full load |
4 min |
| Typical backup time at half load |
11.8 min |
| Battery life (max) |
5 year(s) |
| Battery recharge time |
3 h |
| Hot-swap battery |
Y |
| Automatic battery test |
Y |
| Cold start |
Y |
| Design |
| Form factor |
Rackmount |
| Product colour |
Black |
| Rack capacity |
2U |
| Cable length |
2.44 m |
| Display type |
LCD |
| LED indicators |
Battery replacement |
| International Protection (IP) code |
IP20 |
| Certification |
CE, VDE, RCM, EAC, IEC/EN 62040-1, IEC/EN 62040-2, UL-1778, FCC 15 A, CSA |
| Features |
| UPS topology |
Double-conversion (Online) |
| Output power capacity |
3 kVA |
| Output power |
2700 W |
| Waveform |
Sine |
| Input operation voltage (min) |
100 V |
| Input operation voltage (max) |
275 V |
| Input frequency |
40 - 70 Hz |
| Output operation voltage (min) |
220 V |
| Output operation voltage (max) |
240 V |
| Output frequency |
50/60 Hz |
| Automatic Voltage Regulation (AVR) |
Y |
| Surge energy rating |
340 J |
| Efficiency |
92% |
| Crest factor |
3:1 |
| Emergency Power Off (EPO) |
Y |
| Output voltage Total Harmonic Distortion (THD) |
2% |
| Noise level |
55 dB |
| Surge protection |
Y |
| Power protection features |
Overload |
| Audible alarm(s) |
Y |
| Audible alarm modes |
Battery replacement |
| Auto-restart |
Y |
| Logistics data |
| Products per pallet |
6 pc(s) |
| Packaging data |
| Quick installation guide |
Y |
| Technical details |
| Sustainability certificates |
RoHS |
| Harmonized System (HS) code |
85078000 |
Features
APC Smart-UPS On-Line SRT. UPS topology: Double-conversion (Online), Output power capacity: 3 kVA, Output power: 2700 W. AC outlet types: C13 coupler, C19 coupler, Power plug: C20 coupler, Serial interface type: RJ-45. Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 505 VAh, Typical backup time at full load: 4 min. Form factor: Rackmount, Product colour: Black, Rack capacity: 2U. Width: 432 mm, Depth: 635 mm, Height: 85 mm
Product Description
A versatile UPS developed for unstable power conditions worldwide
Smart-UPS On-Line provides high-density, double-conversion, online power protection for servers, voice/data networks, medical labs, and light industrial applications. The Smart-UPS On-Line is capable of supporting loads from 2.2 kVA – 10 kVA in a rack/tower convertible chassis. The 6 kVA, 8 kVA, and 10 kVA models feature unity output power factor enabling them to support power-hungry blade servers or heavily loaded equipment racks. When business-critical systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with multiple battery packs to meet aggressive runtime demands.
The included PowerChute Network Shutdown management software provides unattended graceful shutdown of network operating systems. Models 5 kVA to 10 kVA include an integrated network management card for remote management. The entire Smart-UPS On-Line family provides value to customers with demanding power conditions, including a very wide input voltage window, extremely tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.
