Stock Status: 1x unit in stock

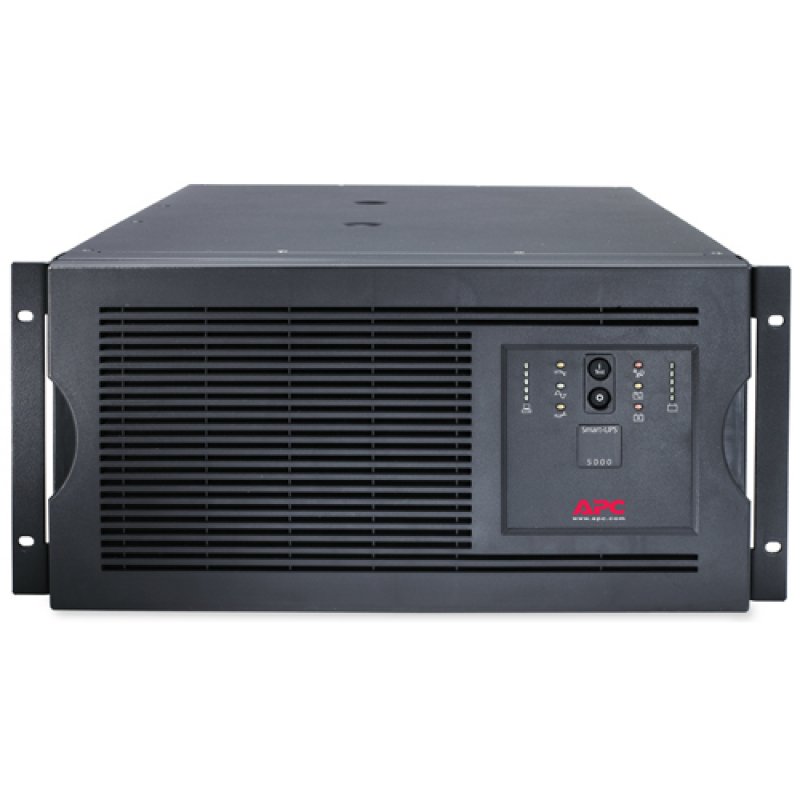

APC Smart-UPS, 4000 Watts / 5000 VA,Input 230V / Output 230V, Rack Height 5 U
Includes: CD with software, Documentation CD, Installation guide, Rack mounting hardware, Rack Mounting support rails, Smart UPS signalling RS-232 cable, User Manual, Web/SNMP Management Card
Standard Lead Time: Usually Ships within 4 Weeks
-Adjustable voltage-transfer points.
-Audible alarms.
-Automatic self-test.
-Boost and Trim Automatic Voltage Regulation (AVR).
-Cold-start capable.
-Disconnected battery notification.
-Hot-swappable batteries.
-LED status indicators.
-Network manageable.
-Plug-and-Play installation.
-Rack/Tower convertible.
-Resettable circuit breakers.
-Safety-agency approved
-Serial Connectivity.
-SmartSlot.
-Temperature-compensated battery charging.
Specs
| Weight & dimensions |
| Width |
483 mm |
| Depth |
660 mm |
| Height |
222 mm |
| Weight |
97.7 kg |
| Package width |
610 mm |
| Package depth |
762 mm |
| Package height |
635 mm |
| Package weight |
106.8 kg |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-15 - 45 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating altitude |
0 - 9000 m |
| Non-operating altitude |
0 - 15000 m |
| Ports & interfaces |
| AC outlet types |
C13 coupler, C19 coupler |
| Power plug |
Hard Wire 3-wire |
| AC outlets quantity |
10 AC outlet(s) |
| Number of output IEC jumpers |
4 |
| Other features |
| Nominal output voltage |
230 V |
| Nominal input voltage |
230 V |
| Packaging content |
Web/SNMP Management Card |
| Battery |
| Battery technology |
Sealed Lead Acid (VRLA) |
| Battery capacity |
1632 VAh |
| Typical backup time at full load |
9.4 min |
| Typical backup time at half load |
26.7 min |
| Battery life (max) |
5 year(s) |
| Battery recharge time |
3 h |
| Hot-swap battery |
Yes |
| Automatic battery test |
Yes |
| Cold start |
Yes |
| Design |
| Form factor |
Rackmount/Tower |
| Product colour |
Black |
| Rack capacity |
5U |
| LED indicators |
Battery replacement |
| Certification |
C-tick, CE, EN 50091-1, EN 50091-2, GOST, GS Mark, VDE, REACH, PEP, EOLI |
| Features |
| UPS topology |
Line-Interactive |
| Output power capacity |
5 kVA |
| Output power |
4000 W |
| Waveform |
Sine |
| Input operation voltage (min) |
151 V |
| Input operation voltage (max) |
302 V |
| Input frequency |
50/60 Hz |
| Output operation voltage (min) |
220 V |
| Output operation voltage (max) |
240 V |
| Output frequency regulation |
47 - 53 Hz |
| Automatic Voltage Regulation (AVR) |
Yes |
| Surge energy rating |
480 J |
| Hold time (min) |
2 ms |
| Hold time (max) |
4 ms |
| Number of output phases |
1 |
| Efficiency |
96% |
| Noise level |
53 dB |
| Surge protection |
Yes |
| Audible alarm(s) |
Yes |
| Auto-restart |
Yes |
| Logistics data |
| Products per pallet |
4 pc(s) |
| Harmonized System (HS) code |
85078000 |
| Products per master (outer) case |
1 pc(s) |
| Packaging data |
| Rack mount kit |
Yes |
| Cables included |
RS-232 |
| Manual |
Yes |
| Quick installation guide |
Yes |
| Software CD |
Yes |
| Technical details |
| Compliance certificates |
RoHS |
Features
APC Smart-UPS. UPS topology: Line-Interactive, Output power capacity: 5 kVA, Output power: 4000 W. AC outlet types: C13 coupler, C19 coupler, Power plug: Hard Wire 3-wire, AC outlets quantity: 10 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 1632 VAh, Typical backup time at full load: 9.4 min. Form factor: Rackmount/Tower, Product colour: Black, Rack capacity: 5U. Width: 483 mm, Depth: 660 mm, Height: 222 mm
Product Description
APC Smart-UPS, 4000 Watts / 5000 VA,Input 230V / Output 230V, Rack Height 5 U
Includes: CD with software, Documentation CD, Installation guide, Rack mounting hardware, Rack Mounting support rails, Smart UPS signalling RS-232 cable, User Manual, Web/SNMP Management Card
Standard Lead Time: Usually Ships within 4 Weeks
-Adjustable voltage-transfer points.
-Audible alarms.
-Automatic self-test.
-Boost and Trim Automatic Voltage Regulation (AVR).
-Cold-start capable.
-Disconnected battery notification.
-Hot-swappable batteries.
-LED status indicators.
-Network manageable.
-Plug-and-Play installation.
-Rack/Tower convertible.
-Resettable circuit breakers.
-Safety-agency approved
-Serial Connectivity.
-SmartSlot.
-Temperature-compensated battery charging.
