Stock Status: 1x unit in stock

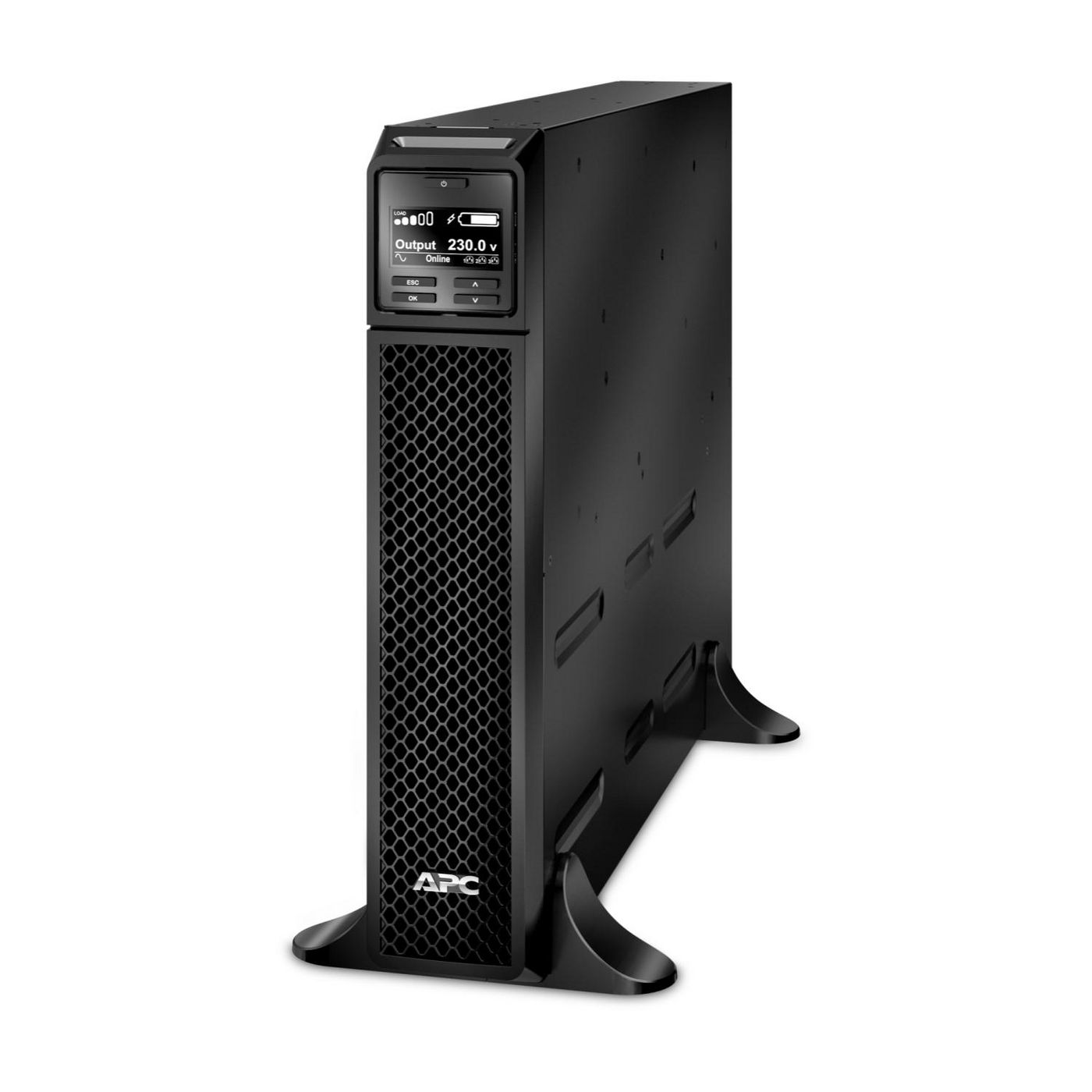

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 1000VA on-line tower UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with 1x IEC 320 C14 input and 6x IEC 320 C13 outlets. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. The UPS is compatible with SRTRK4 (4-post) and SRTRK3 (2-post) rail kits sold separately.
Specs
| Weight & dimensions |
| Width |
85 mm |
| Depth |
505 mm |
| Height |
432 mm |
| Weight |
20.5 kg |
| Battery width |
59.4 cm |
| Battery depth |
74.9 cm |
| Battery height |
24.6 cm |
| Battery weight |
29.6 kg |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-20 - 50 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Operating altitude |
0 - 3048 m |
| Non-operating altitude |
0 - 15240 m |
| Ports & interfaces |
| AC outlet types |
C13 coupler |
| Power plug |
C14 coupler |
| AC outlets quantity |
12 AC outlet(s) |
| USB port |
Yes |
| Serial interface |
Yes |
| Serial interface type |
RJ-45 |
| Serial ports quantity |
1 |
| SmartSlot |
Yes |
| Other features |
| Nominal output voltage |
230 V |
| Nominal input voltage |
230 V |
| Battery |
| Battery technology |
Sealed Lead Acid (VRLA) |
| Battery voltage |
48 V |
| Typical backup time at full load |
8 min |
| Typical backup time at half load |
21 min |
| Battery life (max) |
5 year(s) |
| Battery recharge time |
3 h |
| Hot-swap battery |
Yes |
| Automatic battery test |
Yes |
| Cold start |
Yes |
| Design |
| Form factor |
Rackmount/Tower |
| Product colour |
Black |
| Rack capacity |
2U |
| Cable length |
1.8 m |
| Cooling type |
Active |
| Built-in fan |
Yes |
| Display type |
LCD |
| LED indicators |
Yes |
| International Protection (IP) code |
IP20 |
| Features |
| UPS topology |
Double-conversion (Online) |
| Output power capacity |
1 kVA |
| Output power |
1000 W |
| Waveform |
Sine |
| Input operation voltage (min) |
220 V |
| Input operation voltage (max) |
240 V |
| Input frequency |
40/70 Hz |
| Output operation voltage (min) |
50 V |
| Output operation voltage (max) |
240 V |
| Output frequency |
50/60 Hz |
| Surge energy rating |
432 J |
| Crest factor |
3:1 |
| ECO mode |
Yes |
| Emergency Power Off (EPO) |
Yes |
| Output voltage Total Harmonic Distortion (THD) |
2% |
| Noise level |
50 dB |
| Audible alarm(s) |
Yes |
| Audible alarm modes |
Alarm when on battery, Battery replacement |
| Auto-restart |
Yes |
| Logistics data |
| Harmonized System (HS) code |
85078000 |
| Total carbon footprint (kg of CO2e) |
1839.69 |
| Certification |
| Compliance certificates |
CE |
| Certification |
CE, EAC |
| Packaging content |
| Cables included |
USB cable |
| Quick installation guide |
Yes |
| Sustainability |
| Sustainability certificates |
Green Premium |
| Sustainability compliance |
Yes |
Features
APC Smart-UPS On-Line, 1000VA/1000W, Tower, 230V, 6x C13 IEC outlets, SmartSlot, Extended runtime, W/O rail kit. UPS topology: Double-conversion (Online), Output power capacity: 1 kVA, Output power: 1000 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 12 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery voltage: 48 V, Typical backup time at full load: 8 min. Form factor: Rackmount/Tower, Product colour: Black, Rack capacity: 2U. Compliance certificates: CE, Certification: CE, EAC
Product Description
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 1000VA on-line tower UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with 1x IEC 320 C14 input and 6x IEC 320 C13 outlets. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. The UPS is compatible with SRTRK4 (4-post) and SRTRK3 (2-post) rail kits sold separately.
