Battery backup and surge protection
Outlets provide abundant runtime for network gateway equipment and other critical low-power devices, allowing for hours of internet access during a power outage.
Battery and surge protected outlets
Back up and protect your hardware and data during power outages, surges and spikes.
Safety-agency approved
Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
Boost Automatic Voltage Regulation (AVR)
Preserves battery life and maximizes runtime by correcting low voltages without discharging the battery.
Cold-start capable
Provides temporary battery power when the utility power is out.
Sleek design
Slim, modern design can be upright, flat, or wall-mounted to comfortably fit any electronics set-up and complement home décor.
Transformer-block spaced outlets
Protect equipment with input transformer blocks without blocking access to other receptacles.
LED Indicators
Provide easy-to-read status of the unit and utility power conditions.
Audible alarms
Provides notification of changing utility power and UPS power conditions.
Advanced Safety Features
Safeguard your Home UPS from overloads, excessive mains voltages, short circuits, installation mishaps and battery damage due to low voltage situations.
Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance
Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.
Specs
| Weight & dimensions |
| Width |
140 mm |
| Depth |
390 mm |
| Height |
190 mm |
| Weight |
12.2 kg |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-15 - 40 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Operating altitude |
0 - 3000 m |
| Non-operating altitude |
0 - 3000 m |
| Ports & interfaces |
| AC outlet types |
Type F |
| Power plug |
Type F |
| AC outlets quantity |
4 AC outlet(s) |
| Battery |
| Battery technology |
Lead-Acid |
| Battery capacity |
9 Ah |
| Battery voltage |
24 V |
| Battery life (max) |
3 year(s) |
| Battery recharge time |
8 h |
| Cold start |
Yes |
| Design |
| Product colour |
Black |
| Cable length |
1.2 m |
| LED indicators |
Yes |
| International Protection (IP) code |
IP20 |
| Features |
| UPS topology |
Line-Interactive |
| Output power capacity |
2.2 kVA |
| Output power |
1200 W |
| Waveform |
Sine |
| Input operation voltage (min) |
140 V |
| Input operation voltage (max) |
300 V |
| Input frequency |
50/60 Hz |
| Output frequency |
50/60 Hz |
| Automatic Voltage Regulation (AVR) |
Yes |
| Surge energy rating |
273 J |
| Response time |
6 ms |
| Audible alarm(s) |
Yes |
| Logistics data |
| Harmonized System (HS) code |
85078000 |
| Packaging data |
| Package width |
495 mm |
| Package depth |
235 mm |
| Package height |
297 mm |
| Package weight |
13.2 kg |
| Certification |
| Certification |
CE, EN/IEC 62040-1, EN/IEC 62040-2 |
| Packaging content |
| Cables included |
Input power cable |
Features

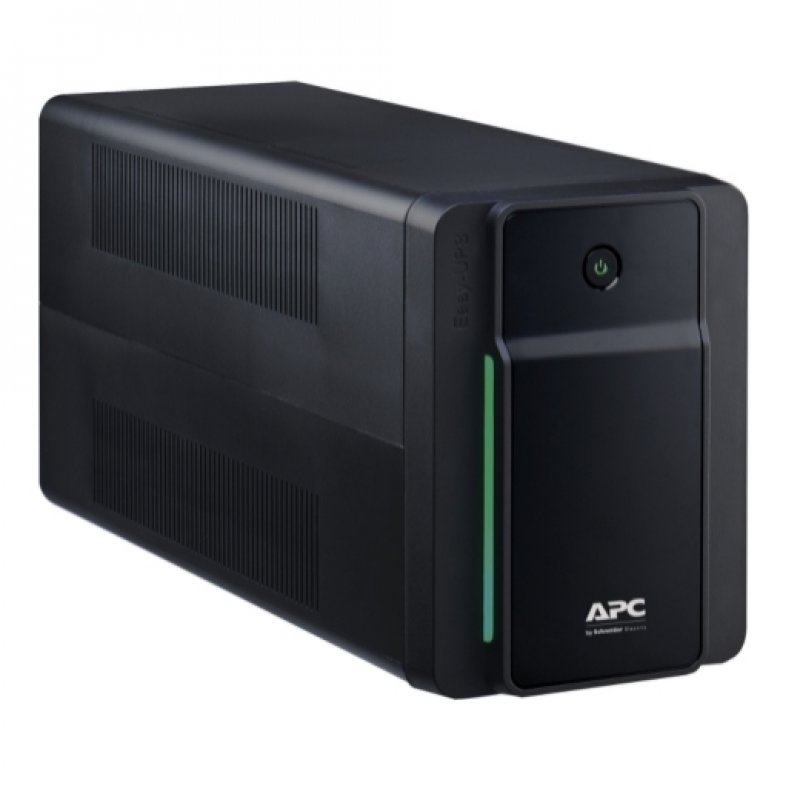

APC Easy UPS. UPS topology: Line-Interactive, Output power capacity: 2.2 kVA, Output power: 1200 W. AC outlet types: Type F, Power plug: Type F, AC outlets quantity: 4 AC outlet(s). Battery technology: Lead-Acid, Battery capacity: 9 Ah, Battery voltage: 24 V. Product colour: Black, Cable length: 1.2 m, International Protection (IP) code: IP20. Certification: CE, EN/IEC 62040-1, EN/IEC 62040-2
Product Description
Battery backup and surge protection
Outlets provide abundant runtime for network gateway equipment and other critical low-power devices, allowing for hours of internet access during a power outage.
Battery and surge protected outlets
Back up and protect your hardware and data during power outages, surges and spikes.
Safety-agency approved
Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
Boost Automatic Voltage Regulation (AVR)
Preserves battery life and maximizes runtime by correcting low voltages without discharging the battery.
Cold-start capable
Provides temporary battery power when the utility power is out.
Sleek design
Slim, modern design can be upright, flat, or wall-mounted to comfortably fit any electronics set-up and complement home décor.
Transformer-block spaced outlets
Protect equipment with input transformer blocks without blocking access to other receptacles.
LED Indicators
Provide easy-to-read status of the unit and utility power conditions.
Audible alarms
Provides notification of changing utility power and UPS power conditions.
Advanced Safety Features
Safeguard your Home UPS from overloads, excessive mains voltages, short circuits, installation mishaps and battery damage due to low voltage situations.
Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance
Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.
