Stock Status: 1x unit in stock

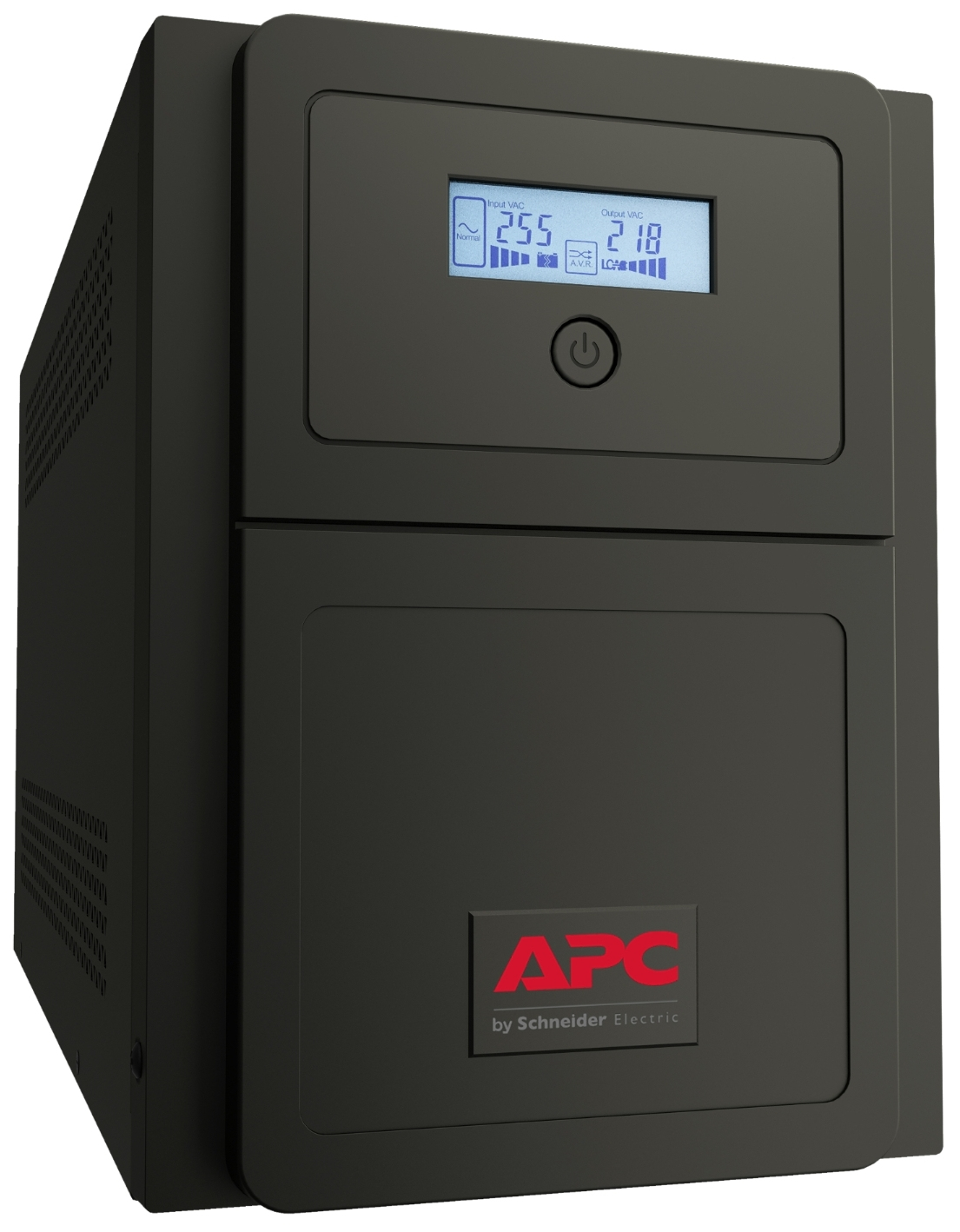

This APC Single phase Easy UPS is designed for essential power protection needs of small to medium businesses even in the most unstable power conditions. This 1500VA line interactive tower UPS provides pure sine wave power to handle a wide voltage range and inconsistent power conditions. The plug and play SMV comes with IEC 320 C14 input connection and 6x IEC 320 C13 outlets. The line interactive UPS supports communication interfaces like the USB port and RS-232 for monitoring and management. The Easy UPS and built-in lead-acid battery are covered by a 2-year warranty. Ideal for business PC/workstations, small offices, server rooms, audio/video systems, and retail point-of-sale. The UPS is compatible with the replacement battery APCRBCV207.
Specs
| Weight & dimensions |
| Width |
160 mm |
| Depth |
410 mm |
| Height |
220 mm |
| Weight |
17.8 kg |
| Battery width |
27.2 cm |
| Battery depth |
50.8 cm |
| Battery height |
33.9 cm |
| Battery weight |
20.8 kg |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-10 - 40 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating altitude |
0 - 3000 m |
| Non-operating altitude |
0 - 3000 m |
| Ports & interfaces |
| AC outlet types |
C13 coupler |
| Power plug |
C14 coupler |
| AC outlets quantity |
6 AC outlet(s) |
| USB port |
Yes |
| USB 2.0 ports quantity |
1 |
| Other features |
| Nominal output voltage |
230 V |
| Nominal input voltage |
230 V |
| Battery |
| Battery technology |
Sealed Lead Acid (VRLA) |
| Battery life (max) |
5 year(s) |
| Battery recharge time |
4 h |
| Cold start |
Yes |
| Design |
| Form factor |
Tower |
| Product colour |
Black, Grey |
| Display type |
LCD |
| LED indicators |
Yes |
| Features |
| UPS topology |
Line-Interactive |
| Output power capacity |
1.5 kVA |
| Output power |
1050 W |
| Waveform |
Sine |
| Input operation voltage (min) |
160 V |
| Input operation voltage (max) |
295 V |
| Input frequency |
45/65 Hz |
| Output frequency |
50/60 Hz |
| Automatic Voltage Regulation (AVR) |
Yes |
| Response time |
2 ms |
| Efficiency |
98.2% |
| Crest factor |
3:1 |
| Noise level |
45 dB |
| Audible alarm(s) |
Yes |
| Audible alarm modes |
Alarm when on battery, Low battery alarm, Overload alarm |
| Logistics data |
| Harmonized System (HS) code |
85078000 |
| Certification |
| Certification |
CE |
| Packaging content |
| Cables included |
USB cable |
| Manual |
Yes |
Features
APC Easy UPS 1 Ph Line Interactive, 1500VA, Tower, 230V, 6 IEC C13 outlets, AVR, Dry Contact, LCD, W/O Network Card support. UPS topology: Line-Interactive, Output power capacity: 1.5 kVA, Output power: 1050 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 6 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery life (max): 5 year(s), Battery recharge time: 4 h. Form factor: Tower, Product colour: Black, Grey, Display type: LCD. Certification: CE
Product Description
This APC Single phase Easy UPS is designed for essential power protection needs of small to medium businesses even in the most unstable power conditions. This 1500VA line interactive tower UPS provides pure sine wave power to handle a wide voltage range and inconsistent power conditions. The plug and play SMV comes with IEC 320 C14 input connection and 6x IEC 320 C13 outlets. The line interactive UPS supports communication interfaces like the USB port and RS-232 for monitoring and management. The Easy UPS and built-in lead-acid battery are covered by a 2-year warranty. Ideal for business PC/workstations, small offices, server rooms, audio/video systems, and retail point-of-sale. The UPS is compatible with the replacement battery APCRBCV207.
