Stock Status: 1x unit in stock

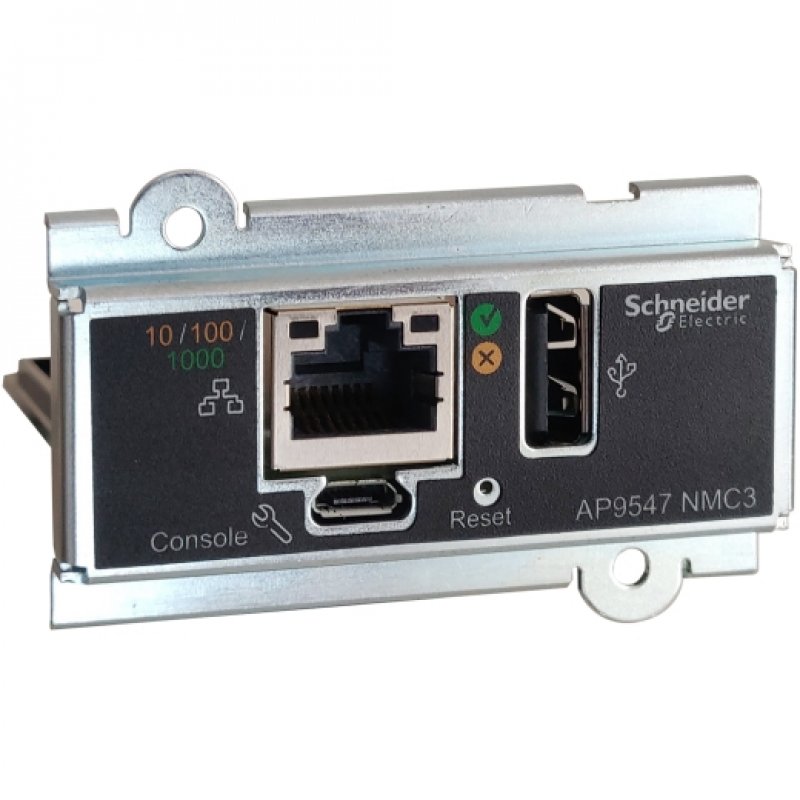

The Network Management Card for Easy UPS 3 Series enables secure remote monitoring and control of one Easy UPS 3S, Easy UPS 3M or Easy UPS 3L through the easy-to-use web browser interface, via EcoStruxure™ IT Software or another SNMP-enabled system. The high-speed processor provides a fast and powerful experience offering gigabit ethernet connectivity and simultaneous multiple user logins. Best-in-class security compliance keeps sensitive data secure. The Network Management Card includes a 1-year Secure NMC Subscription which provides automatic access to new features, enhancements, and advanced support to ensure the most resilient, secure and sustainable IT infrastructure.
Specs
| Features |
| Product type |
Network management card |
| Product colour |
Black, Metallic |
| MIB support |
PowerNet MIB |
| Easy to use |
Yes |
| Compatibility |
Easy UPS 3 Series |
| Weight & dimensions |
| Width |
52 mm |
| Depth |
80 mm |
| Height |
44 mm |
| Weight |
50 g |
| Power |
| Number of phases |
3 |
| Operational conditions |
| Operating temperature (T-T) |
-5 - 45 °C |
| Storage temperature (T-T) |
-15 - 65 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating altitude |
0 - 3048 m |
| Non-operating altitude |
0 - 15240 m |
| Packaging content |
| Cables included |
USB |
| Manual |
Yes |
| Ports & interfaces |
| Interface type |
RJ-45 |
| Ethernet LAN (RJ-45) ports |
1 |
| Ethernet interface type |
Gigabit Ethernet |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Cabling technology |
10/100/1000 |
| Security algorithms |
HTTPS, SNMP, SNMPv3, SSH |
| Logistics data |
| Total carbon footprint (kg of CO2e) |
69.41 |
| Certificates |
| Compliance certificates |
Federal Communications Commission (FCC), ICES, RoHS, VCCI |
| Certification |
AS/NZS, CISPR 32, EN 55024, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-6-2, EN/IEC 62040-2, FCC Class A, ICES-003, VCCI class A |
| Sustainability |
| Sustainability compliance |
Yes |
| Packaging data |
| Package width |
170 mm |
| Package depth |
240 mm |
| Package height |
50 mm |
| Package weight |
300 g |
| Performance |
| Web-based management |
Yes |
| Management protocols |
BACnet |
| Password protection |
Yes |
| Reset button |
Yes |
| Syslog |
Yes |
Features
APC Network Management Card, Network Management Cards, for Easy UPS 3 Series, 3-Phase, remotely monitor and manage the UPS. Product type: Network management card, Product colour: Black, Metallic, MIB support: PowerNet MIB. Management protocols: BACnet. Interface type: RJ-45, Ethernet interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s. Compliance certificates: Federal Communications Commission (FCC), ICES, RoHS, VCCI, Certification: AS/NZS, CISPR 32, EN 55024, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6,.... Width: 52 mm, Depth: 80 mm, Height: 44 mm
Product Description
The Network Management Card for Easy UPS 3 Series enables secure remote monitoring and control of one Easy UPS 3S, Easy UPS 3M or Easy UPS 3L through the easy-to-use web browser interface, via EcoStruxure™ IT Software or another SNMP-enabled system. The high-speed processor provides a fast and powerful experience offering gigabit ethernet connectivity and simultaneous multiple user logins. Best-in-class security compliance keeps sensitive data secure. The Network Management Card includes a 1-year Secure NMC Subscription which provides automatic access to new features, enhancements, and advanced support to ensure the most resilient, secure and sustainable IT infrastructure.
