Stock Status: 1x unit in stock
Catastrophic Event Protection
SurgeArrest components such as MOVs and Thermal fuse ensure instantaneous reaction to lightning strikes and wiring faults. If the surge components are damaged due to power spike or over voltage, excess power cannot reach your equipment. Unlike the APC SurgeArrest products, most surge suppressors continue to let power through even after circuits have been damaged, leaving your equipment exposed to other damaging surges.
EMI and RFI noise filtering
Reduces line noise that can cause data loss and keyboard errors.
Protection Working Indicator
SurgeArrest will warn you if its circuitry has been damaged by heavy strike or power line surge and it is unable to provide 100% protection. If still under warranty, APC will then replace your damaged SurgeArrest free of charge.
Specs
| Weight & dimensions |
| Cable length |
1.5 m |
| Weight |
470 g |
| Width |
303.9 mm |
| Depth |
63.1 mm |
| Height |
40 mm |
| Technical details |
| Sustainability certificates |
RoHS |
| Compliance certificates |
RoHS |
| Power |
| Surge energy rating |
680 J |
| AC outlets quantity |
5 AC outlet(s) |
| AC outlet types |
Type F |
| Nominal input voltage |
230 V |
| AC input frequency |
50 - 60 Hz |
| Nominal current output |
10 A |
| Peak power |
2300 W |
| Peak current, normal mode |
15000 A |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-15 - 45 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Storage relative humidity (H-H) |
0 - 95% |
| Ports & interfaces |
| Power plug |
Type F (Schuko) |
| Packaging data |
| Package width |
118 mm |
| Package depth |
46 mm |
| Package height |
334 mm |
| Package tare weight |
555 g |
| Certificates |
| Certification |
CE, CE Mark |
| Packaging content |
| Cables included |
AC |
| Logistics data |
| Harmonized System (HS) code |
85364900 |
| Products per pallet |
324 pc(s) |
| Features |
| Product colour |
Black |
| EMI/RFI noise filtering |
40 dB |
| Wall mountable |
Yes |
Features

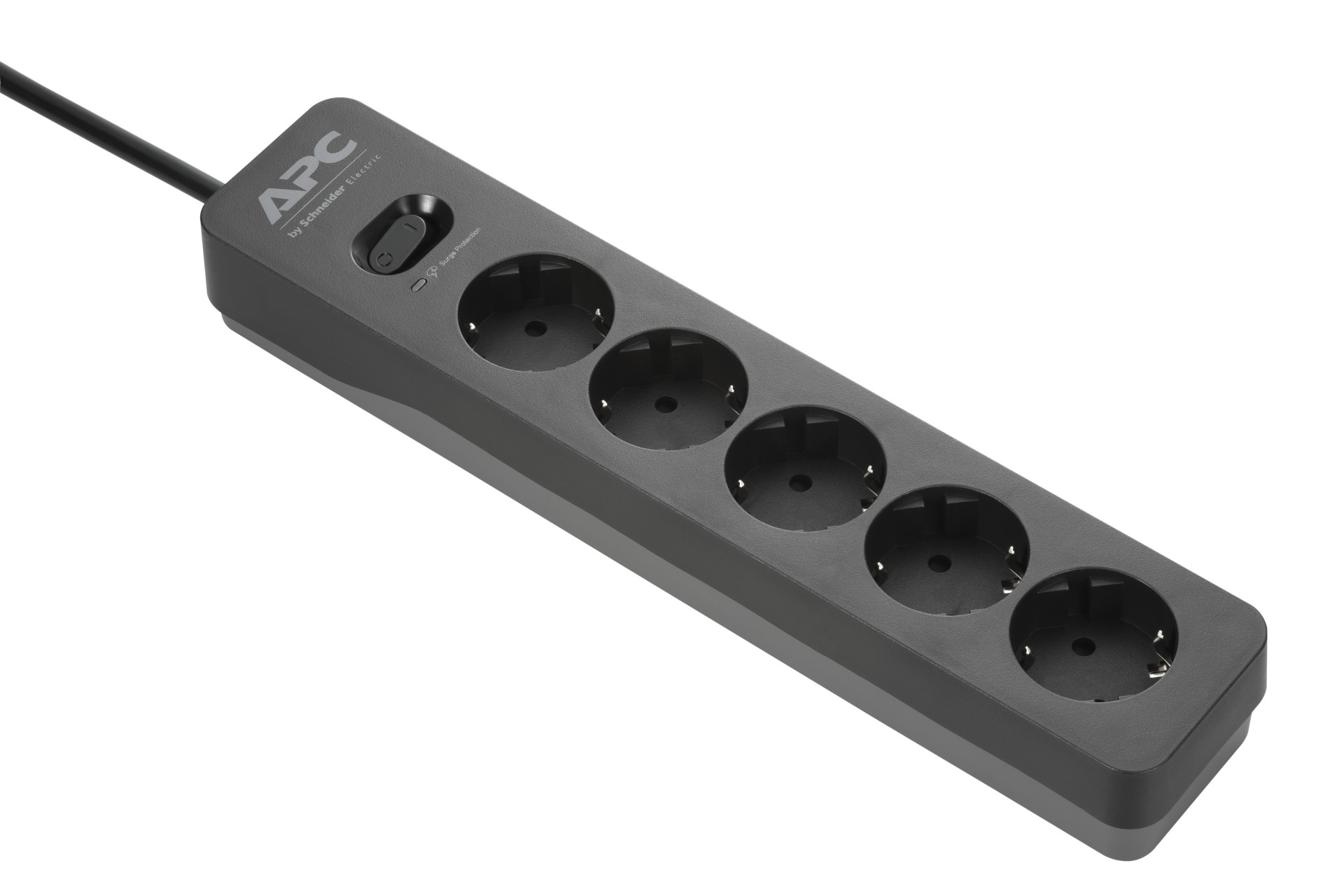

APC PME5B-GR. Surge energy rating: 680 J, AC outlets quantity: 5 AC outlet(s), AC outlet types: Type F. Power plug: Type F (Schuko). Product colour: Black, EMI/RFI noise filtering: 40 dB. Cable length: 1.5 m, Weight: 470 g, Width: 303.9 mm. Certification: CE, CE Mark
Product Description
Catastrophic Event Protection
SurgeArrest components such as MOVs and Thermal fuse ensure instantaneous reaction to lightning strikes and wiring faults. If the surge components are damaged due to power spike or over voltage, excess power cannot reach your equipment. Unlike the APC SurgeArrest products, most surge suppressors continue to let power through even after circuits have been damaged, leaving your equipment exposed to other damaging surges.
EMI and RFI noise filtering
Reduces line noise that can cause data loss and keyboard errors.
Protection Working Indicator
SurgeArrest will warn you if its circuitry has been damaged by heavy strike or power line surge and it is unable to provide 100% protection. If still under warranty, APC will then replace your damaged SurgeArrest free of charge.
