Stock Status: 1x unit in stock
Automatic internal bypass
Supplies utility power to the connected loads in the event of a UPS power overload or fault.
2 years repair or replace
Automatic restart of loads after UPS shutdown
Automatically starts up the connected equipment upon the return of utility power.
ECO Mode
Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection.
Input power factor correction
Minimizes installation costs by enabling the use of smaller generators and cabling.
Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.
LCD display
Alpha-Numeric Display which displays system parameters and alarms.
Serial connectivity
Provides management of the UPS via a serial port.
USB connectivity
Provides management of the UPS via a USB port (not available on all models).
Features
Management Software
Allows you to easily monitor your utility power and manage your UPS.
ECO Mode
Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection.
Input power factor correction
Minimizes installation costs by enabling the use of smaller generators and cabling.
High efficiency
High efficiency rates that remain stable even at lower operating power levels.
SmartSlot
Customize UPS capabilities with management cards.
Intuitive LCD interface
Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
Double conversion on-line topology
Guarantees a consistently high level of power quality. Any disturbances on the distribution waveform are regenerated via the zero transfer time AC to DC then DC to AC conversion process. The battery is only used as a back-up source.
Generator compatible
Ensures clean, uninterrupted power to protected equipment when generator power is used.
Wide input voltage range
Designed for harsh electrical environments to save battery life.
Serviceability
Disconnected battery notification
Warns when a battery is not available to provide backup power.
Audible alarms
Provides notification of changing utility power and UPS power conditions.
Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Predicitive failure notification
Provides early-warning fault analysis ensuring proactive component replacement.
Manageability
Serial connectivity
Provides management of the UPS via a serial port.
SmartSlot
Customize UPS capabilities with management cards.
LCD graphics display
Text and mimic diagrams that display modes of operation, system parameters and alarms.
Network manageable
Provides remote power management of the UPS over the network.
LED Indicators
Provide easy-to-read status of the unit and utility power conditions.
Availability
Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.
Specs
| Weight & dimensions |
| Width |
437 mm |
| Depth |
632 mm |
| Height |
86 mm |
| Weight |
27.6 kg |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-20 - 50 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating altitude |
0 - 3000 m |
| Non-operating altitude |
0 - 14763.6 m |
| Ports & interfaces |
| AC outlet types |
C13 coupler, C19 coupler |
| AC outlets quantity |
7 AC outlet(s) |
| USB port |
Yes |
| USB port type |
USB Type-B |
| Serial interface |
Yes |
| Serial ports quantity |
1 |
| SmartSlot |
Yes |
| Other features |
| Nominal output voltage |
230 V |
| Nominal input voltage |
230 V |
| Battery |
| Battery technology |
Sealed Lead Acid (VRLA) |
| Battery recharge time |
4 h |
| Automatic battery test |
Yes |
| Design |
| Form factor |
Rackmount |
| Product colour |
Black |
| Rack capacity |
1U |
| Display type |
LCD |
| LED indicators |
Yes |
| Features |
| UPS topology |
Double-conversion (Online) |
| Output power capacity |
3 kVA |
| Output power |
2400 W |
| Waveform |
Sine |
| Input operation voltage (min) |
160 V |
| Input operation voltage (max) |
280 V |
| Input frequency |
40/70 Hz |
| Output operation voltage (min) |
220 V |
| Output operation voltage (max) |
240 V |
| Output frequency |
50/60 Hz |
| Output voltage regulation |
1% |
| Surge energy rating |
600 J |
| Transfer time (Line Mode to Battery Mode) |
0 ms |
| Number of input phases |
1 |
| Number of output phases |
1 |
| Efficiency |
88% |
| Input power factor |
0.95 |
| Output power factor |
0.8 |
| Crest factor |
3:1 |
| ECO mode |
Yes |
| Emergency Power Off (EPO) |
No |
| Output voltage Total Harmonic Distortion (THD) |
3% |
| Noise level |
50 dB |
| Audible alarm(s) |
Yes |
| Audible alarm modes |
Alarm when on battery, Fault, Low battery alarm, Overload alarm |
| Auto-restart |
Yes |
| Maintenance-free |
Yes |
| Socket circuit breaker |
Yes |
| Logistics data |
| Harmonized System (HS) code |
85078000 |
| Packaging data |
| Software CD |
Yes |
| Package width |
569 mm |
| Package depth |
795 mm |
| Package height |
229 mm |
| Package weight |
29 kg |
| Certification |
| Compliance certificates |
RoHS |
| Certification |
CE, IEC 62040-1-1, IEC 62040-1-2
REACH |
| Packaging content |
| Cables included |
USB cable |
| Manual |
Yes |
Features

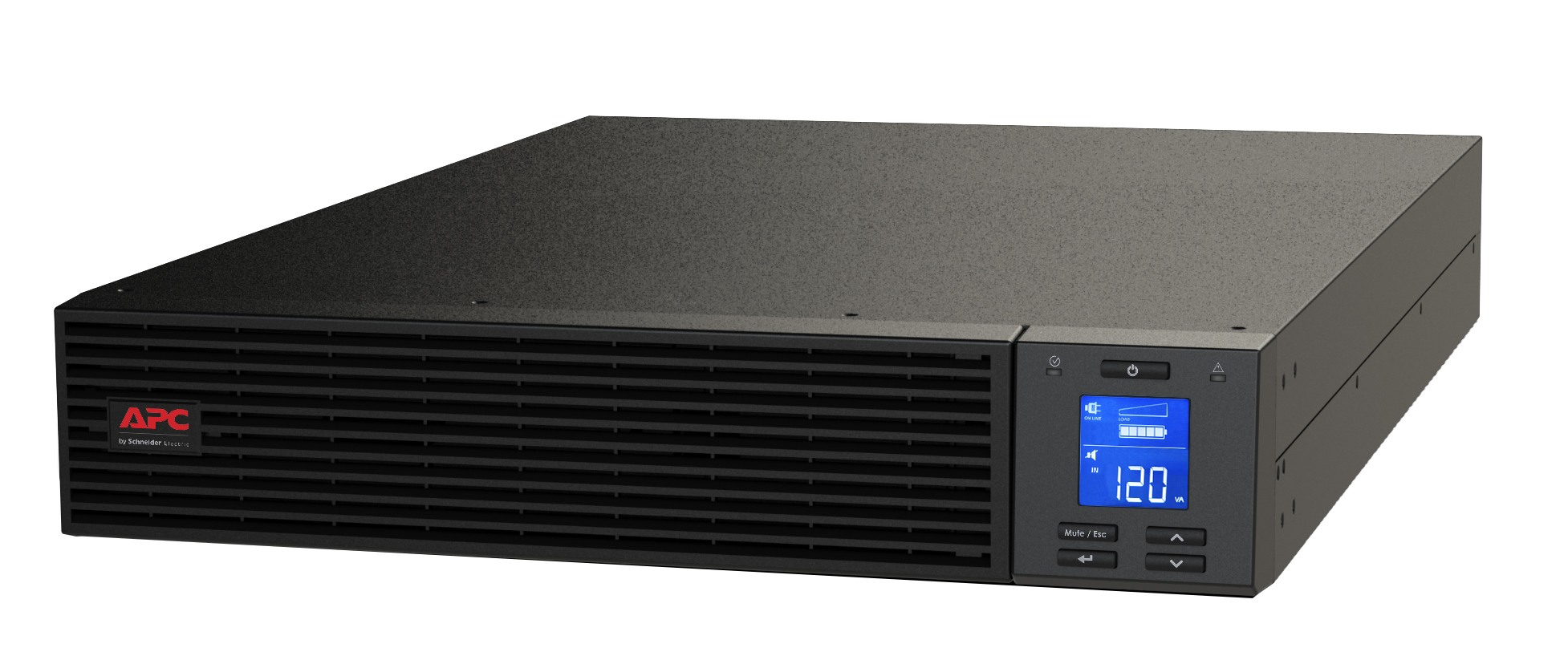

APC SRV3KRI. UPS topology: Double-conversion (Online), Output power capacity: 3 kVA, Output power: 2400 W. AC outlet types: C13 coupler, C19 coupler, AC outlets quantity: 7 AC outlet(s), USB port type: USB Type-B. Battery technology: Sealed Lead Acid (VRLA), Battery recharge time: 4 h. Form factor: Rackmount, Product colour: Black, Rack capacity: 1U. Compliance certificates: RoHS, Certification: CE, IEC 62040-1-1, IEC 62040-1-2 REACH
