Stock Status: 1x unit in stock
The 7000 Series Mobility Controller running ArubaOS delivers industry-leading network services that maximize Wi-Fi performance, ensure seamless roaming, and extends secure VPN access for Remote APs, Instant APs and VIA VPN clients.
The 7000 Series also serves as the key policy enforcement agent within the Dynamic Segmentation solution. Enforcement is accomplished through an industry-first user firewall (PEF), built-in Layer 7 application visibility and control, and web content filtering (WebCC).
As part of a controller cluster managed by Aruba's Mobility Master, the 7000 Series can take advantage of the full ArubaOS feature set, including centralized configuration hierarchy, AI-powered AirMatch, live firmware upgrades and secure multi-tenant SSID segmentation (MultiZone).
With support for up to 64 access points (APs), 24 Ethernet ports, and multiple WAN connections, the 7000 Series can provide up to 6 Gbps of firewall throughput—plenty of capacity for the most demanding distributed enterprise environments.
Specs
| Power |
| Power over Ethernet (PoE) |
Y |
| Power consumption (typical) |
450 W |
| Total Power over Ethernet (PoE) budget |
400 W |
| Weight & dimensions |
| Dimensions (WxDxH) |
442 x 313 x 43.7 mm |
| Weight |
5.13 kg |
| Ports & interfaces |
| Connectivity technology |
Wired |
| Ethernet LAN (RJ-45) ports |
24 |
| Installed SFP modules quantity |
2 |
| Console port |
RJ-45/micro-USB |
| USB 2.0 ports quantity |
1 |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
10 - 95% |
| Storage temperature (T-T) |
-40 - 70 °C |
| Security |
| Security algorithms |
3DES,AES |
| Management features |
| VLAN support |
Y |
| Networking |
| Networking standards |
IEEE 802.11ad,IEEE 802.11ax,IEEE 802.3af,IEEE 802.3at |
| Ethernet LAN |
Y |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Design |
| Form factor |
1U |
| Rack mounting |
Y |
| Product colour |
Grey |
| Performance |
| Firewall throughput |
4000 Mbit/s |
| Number of LAN Access Points (max) |
32 |
| Number of Remote Access Points (max) |
32 |
| Number of users |
2048 user(s) |
| Concurrent IPSec tunnels |
1024 |
| Number of VLANs |
4094 |
Features

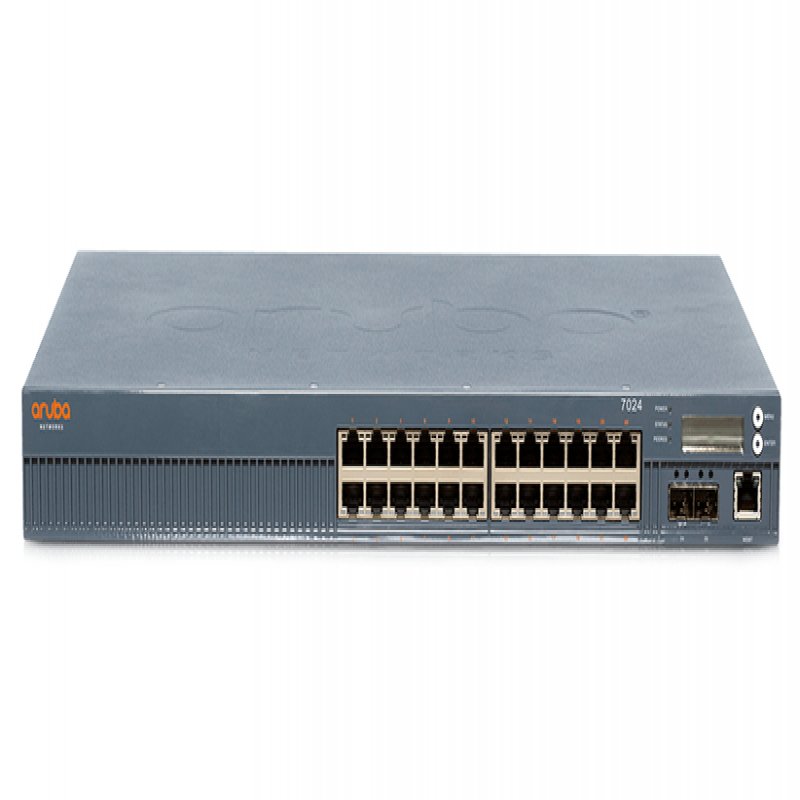

Hewlett Packard Enterprise Aruba 7024 (US). Firewall throughput: 4000 Mbit/s, Number of users: 2048 user(s). Networking standards: IEEE 802.11ad,IEEE 802.11ax,IEEE 802.3af,IEEE 802.3at, Ethernet LAN data rates: 10,100,1000 Mbit/s. Security algorithms: 3DES,AES. Connectivity technology: Wired, Console port: RJ-45/micro-USB. Power consumption (typical): 450 W, Total Power over Ethernet (PoE) budget: 400 W
Product Description
The 7000 Series Mobility Controller running ArubaOS delivers industry-leading network services that maximize Wi-Fi performance, ensure seamless roaming, and extends secure VPN access for Remote APs, Instant APs and VIA VPN clients.
The 7000 Series also serves as the key policy enforcement agent within the Dynamic Segmentation solution. Enforcement is accomplished through an industry-first user firewall (PEF), built-in Layer 7 application visibility and control, and web content filtering (WebCC).
As part of a controller cluster managed by Aruba's Mobility Master, the 7000 Series can take advantage of the full ArubaOS feature set, including centralized configuration hierarchy, AI-powered AirMatch, live firmware upgrades and secure multi-tenant SSID segmentation (MultiZone).
With support for up to 64 access points (APs), 24 Ethernet ports, and multiple WAN connections, the 7000 Series can provide up to 6 Gbps of firewall throughput—plenty of capacity for the most demanding distributed enterprise environments.
