Stock Status: 1x unit in stock
Optimized for 802.11ac, the 7200 series features a central processor with eight CPU cores to support over 32,000 devices and stateful firewall policy enforcement at 40 Gbps.
New levels of visibility offered by AppRFTM technology allow IT to see applications by user, prioritize them, and control access based on policies.
It also manages authentication, encryption, VPNs, IPv4/IPv6 services, the Policy Enforcement FirewallTM, Adaptive Radio ManagementTM, and RFProtectTM spectrum analysis and wireless intrusion protection.
Specs
| Power |
| Power over Ethernet (PoE) |
Y |
| Power supply |
350 W |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50 - 60 Hz |
| Power consumption (typical) |
125 W |
| Weight & dimensions |
| Weight |
7.45 kg |
| Ports & interfaces |
| Ethernet LAN (RJ-45) ports |
2 |
| Installed SFP modules quantity |
4 |
| Console port |
RJ-45 |
| USB 2.0 ports quantity |
1 |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage temperature (T-T) |
-40 - 70 °C |
| Storage relative humidity (H-H) |
10 - 95% |
| Management features |
| VLAN support |
Y |
| Networking |
| Networking standards |
IEEE 802.11ac |
| Ethernet LAN |
Y |
| Ethernet LAN data rates |
1000,10000 Mbit/s |
| Design |
| Form factor |
1U |
| Product colour |
Grey |
| Performance |
| Firewall throughput |
40000 Mbit/s |
| Number of LAN Access Points (max) |
1024 |
| Number of Remote Access Points (max) |
1024 |
| Concurrent IPSec tunnels |
24576 |
| Concurrent connections |
24576 |
| Number of VLANs |
4094 |
Features

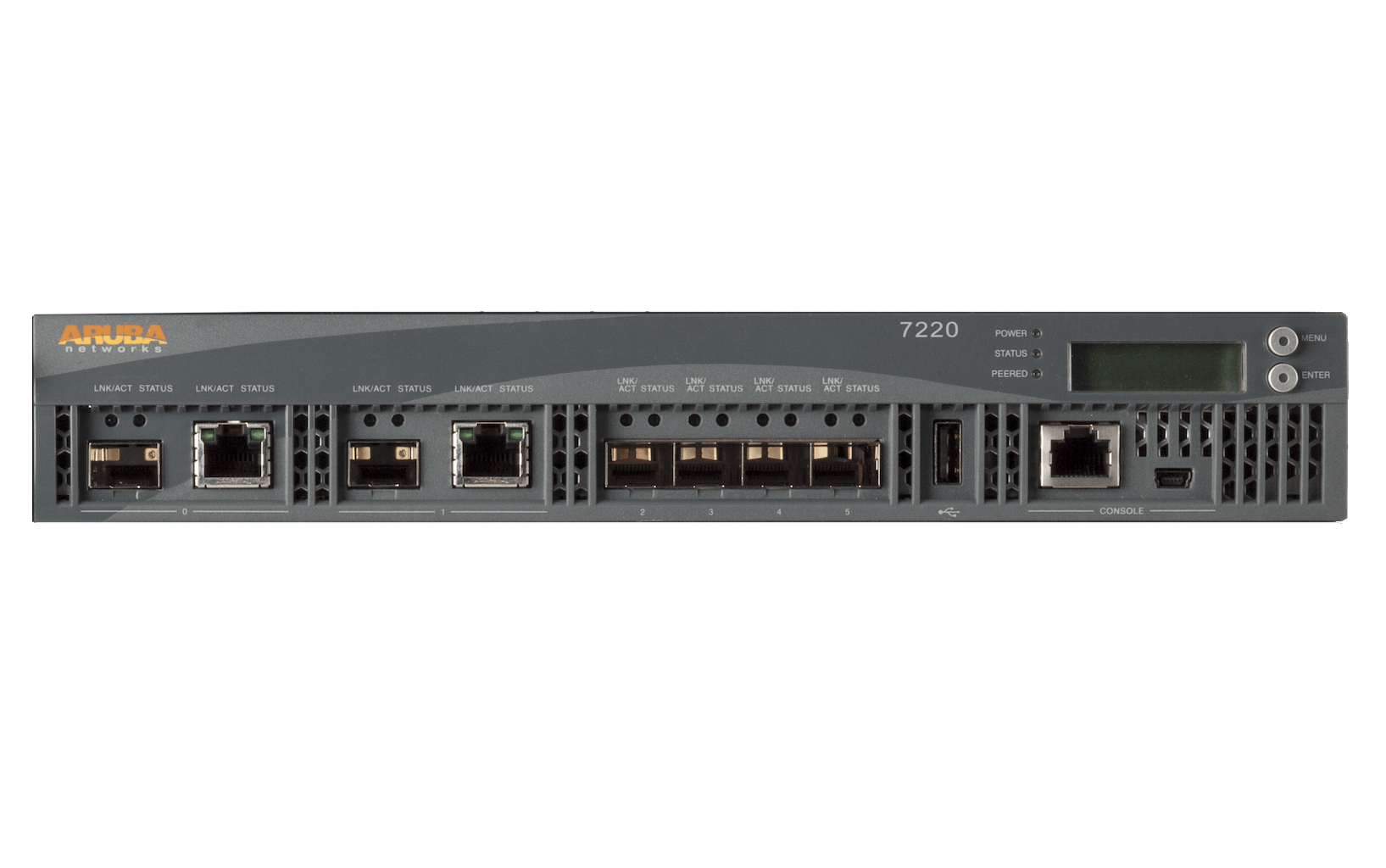

Hewlett Packard Enterprise Aruba 7220 (RW). Firewall throughput: 40000 Mbit/s. Networking standards: IEEE 802.11ac, Ethernet LAN data rates: 1000,10000 Mbit/s. Console port: RJ-45. Power supply: 350 W, AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz. Form factor: 1U, Product colour: Grey
Product Description
Optimized for 802.11ac, the 7200 series features a central processor with eight CPU cores to support over 32,000 devices and stateful firewall policy enforcement at 40 Gbps.
New levels of visibility offered by AppRFTM technology allow IT to see applications by user, prioritize them, and control access based on policies.
It also manages authentication, encryption, VPNs, IPv4/IPv6 services, the Policy Enforcement FirewallTM, Adaptive Radio ManagementTM, and RFProtectTM spectrum analysis and wireless intrusion protection.
