Stock Status: 1x unit in stock

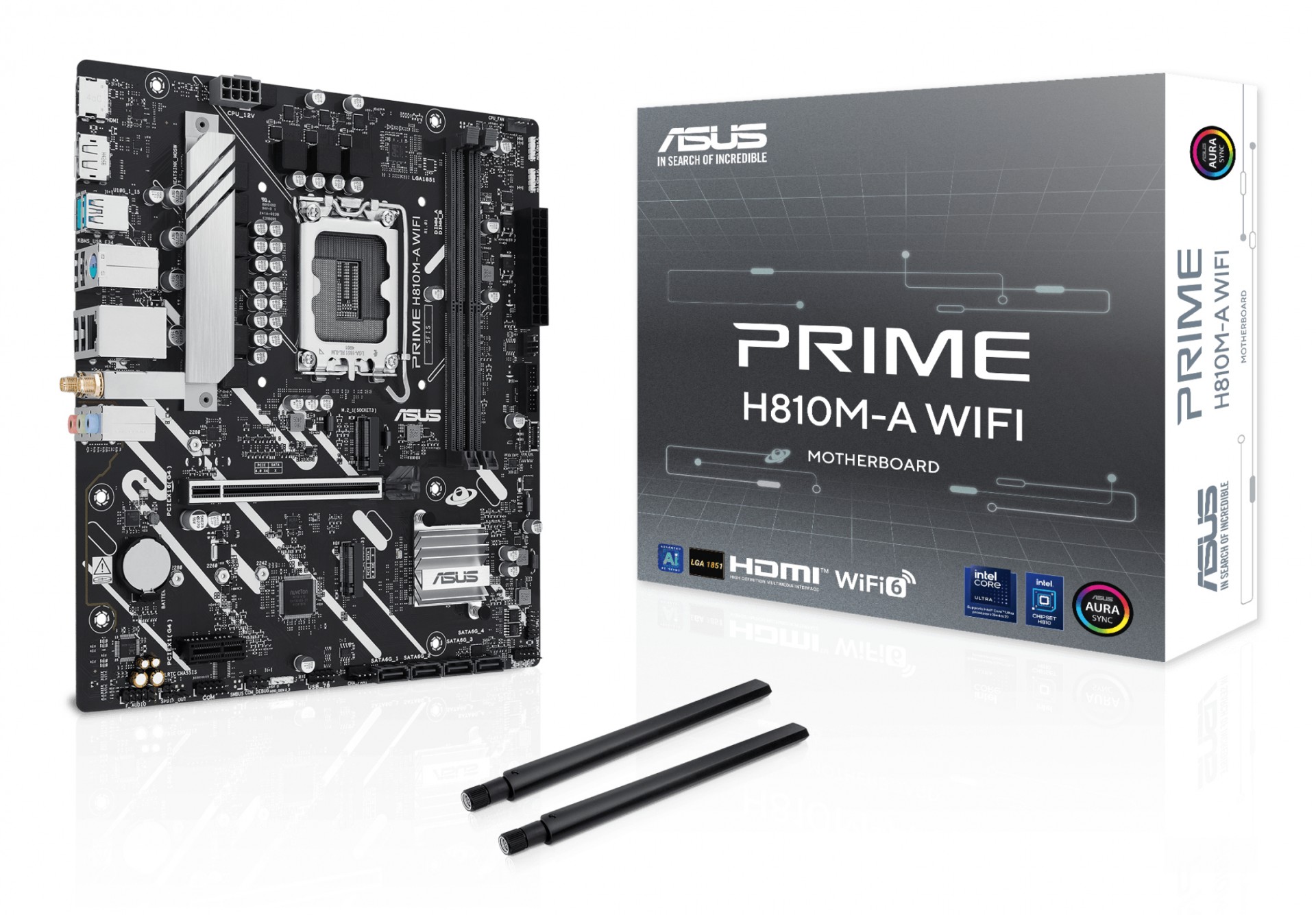

H810M-A WIFI
ASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel® Core™ Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME H810M-A WIFI motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.
Specs
| Weight & dimensions |
| Width |
244 mm |
| Depth |
222 mm |
| Memory |
| Supported memory types |
DDR5-SDRAM |
| Number of memory slots |
2 |
| Maximum internal memory |
128 GB |
| Memory slots type |
DIMM |
| Memory channels |
Dual-channel |
| ECC сompatibility |
Non-ECC |
| Unbuffered memory |
Yes |
| Processor |
| Processor manufacturer |
Intel |
| Processor socket |
LGA 1851 (Socket V1) |
| Compatible processor series |
Intel Core Ultra (Series 2) |
| Supported processor sockets |
LGA 1851 |
| Back panel I/O ports |
| USB 2.0 ports quantity |
4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
0 |
| Ethernet LAN (RJ-45) ports |
1 |
| VGA (D-Sub) ports quantity |
0 |
| HDMI ports quantity |
1 |
| DVI-D ports quantity |
0 |
| PS/2 ports quantity |
1 |
| DisplayPorts quantity |
1 |
| WiFi-AP antenna jack |
1 |
| Internal I/O |
| USB 2.0 connectors |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
2 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors |
0 |
| Number of SATA III connectors |
4 |
| S/PDIF out connector |
Yes |
| Front panel audio connector |
Yes |
| ATX Power connector (24-pin) |
Yes |
| CPU fan connector |
Yes |
| Number of CPU fan connectors |
1 |
| Number of chassis fan connectors |
2 |
| Number of COM connectors |
1 |
| TPM connector |
Yes |
| 12V power connector |
Yes |
| Networking |
| Wi-Fi |
Yes |
| Ethernet LAN |
Yes |
| Ethernet interface type |
Gigabit Ethernet |
| Top Wi-Fi standard |
Wi-Fi 6 (802.11ax) |
| Wi-Fi standards |
Wi-Fi 6 (802.11ax) |
| Bluetooth |
Yes |
| Bluetooth version |
5.3 |
| Expansion slots |
| PCI Express x1 (Gen 4.x) slots |
1 |
| PCI Express x16 (Gen 4.x) slots |
1 |
| Number of M.2 (M) slots |
2 |
| 1st M.2 largest key size |
2280 |
| 1st M.2 highest PCI Express generation |
4.0 |
| 2nd M.2 largest key size |
2280 |
| 2nd M.2 highest PCI Express generation |
4.0 |
| Packaging content |
| Cables included |
SATA |
| Screws included |
Yes |
| BIOS |
| BIOS type |
UEFI AMI |
| BIOS memory size |
256 Mbit |
| Graphics |
| Parallel processing technology support |
Not supported |
| Features |
| Component for |
PC |
| Motherboard form factor |
micro ATX |
| Motherboard chipset family |
Intel |
| Motherboard chipset |
Intel H810 |
| Audio output channels |
7.1 channels |
| Windows operating systems supported |
Windows 10 x64, Windows 11 |
| Storage controllers |
| Supported storage drive interfaces |
M.2, SATA III |
| Supported storage drive types |
HDD & SSD |
| Number of HDDs supported |
4 |
| Number of storage drives supported |
6 |
| RAID support |
Yes |
| RAID levels |
0, 1, 5, 10 |
Features
ASUS PRIME H810M-A WIFI. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6 (802.11ax), Wi-Fi standards: Wi-Fi 6 (802.11ax). Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel
Product Description
H810M-A WIFI
ASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel® Core™ Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME H810M-A WIFI motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.
