Stock Status: 1x unit in stock

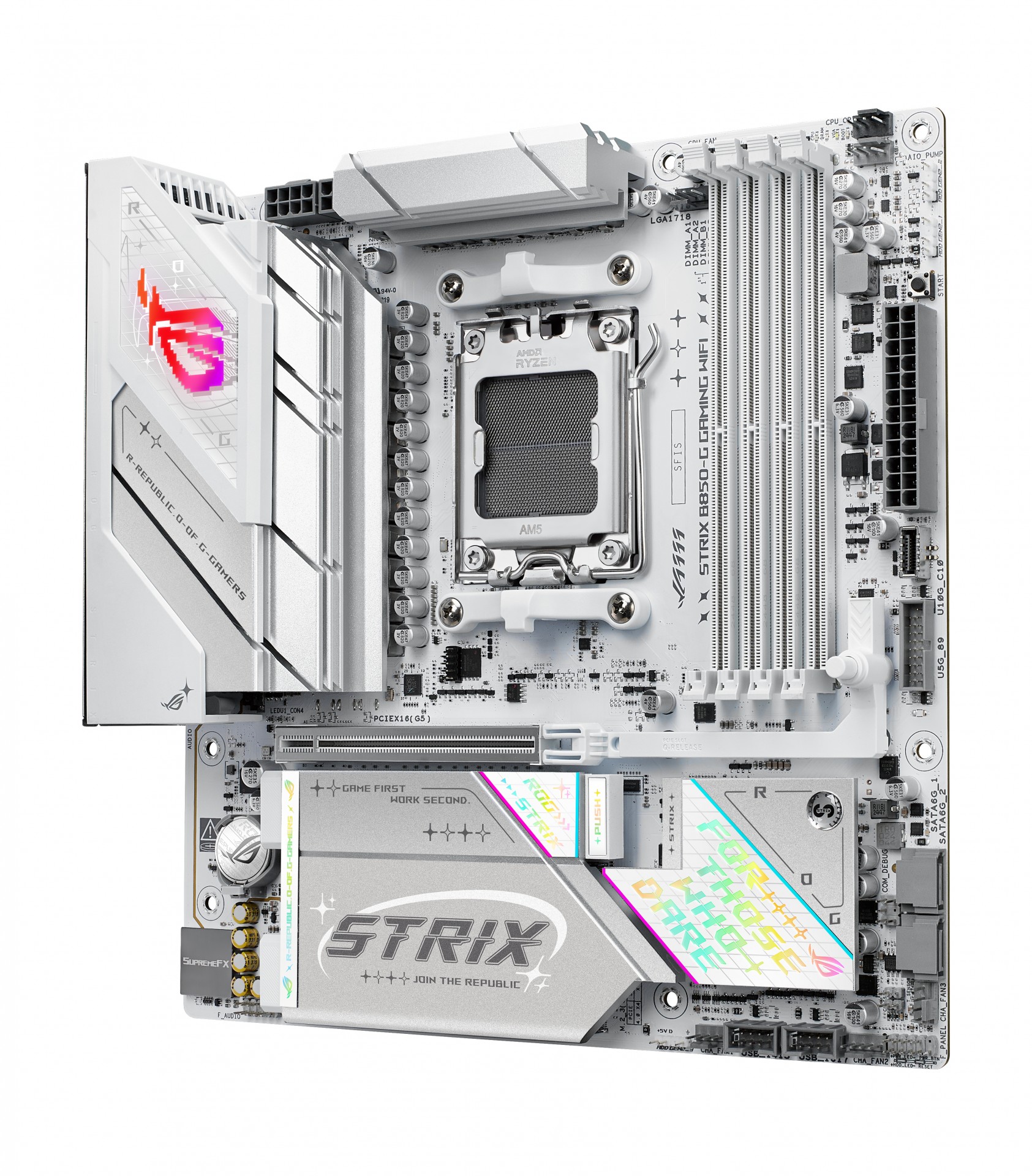

ASUS ROG Strix B850-G Gaming WiFi AMD mATX motherboard, 14+2+1 power stages, DDR5 slots, four M.2 slots, PCIe® 5.0, WiFi 7, USB 20Gbps Type-C® and Aura Sync RGB
Specs
| Weight & dimensions |
| Width |
244 mm |
| Depth |
244 mm |
| Memory |
| Supported memory types |
DDR5-SDRAM |
| Number of memory slots |
4 |
| Maximum internal memory |
256 GB |
| Memory slots type |
DIMM |
| Memory channels |
Dual-channel |
| ECC сompatibility |
ECC & Non-ECC |
| Supported memory clock speed (max) |
8000 MHz |
| Unbuffered memory |
Yes |
| Processor |
| Processor manufacturer |
AMD |
| Processor socket |
Socket AM5 |
| Compatible processor series |
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Back panel I/O ports |
| USB 2.0 ports quantity |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| VGA (D-Sub) ports quantity |
0 |
| HDMI ports quantity |
1 |
| DVI-D ports quantity |
0 |
| USB 3.2 Gen 2x2 Type-C ports quantity |
1 |
| DisplayPorts quantity |
1 |
| Microphone in |
Yes |
| S/PDIF out port |
Yes |
| WiFi-AP antenna jack |
2 |
| Internal I/O |
| USB 2.0 connectors |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors |
1 |
| Number of SATA III connectors |
2 |
| Front panel audio connector |
Yes |
| Front panel connector |
Yes |
| ATX Power connector (24-pin) |
Yes |
| CPU fan connector |
Yes |
| Number of CPU fan connectors |
1 |
| Number of chassis fan connectors |
3 |
| Chassis intrusion connector |
Yes |
| EPS power connector (8-pin) |
Yes |
| 12V power connector |
Yes |
| Networking |
| Wi-Fi |
Yes |
| Ethernet LAN |
Yes |
| Ethernet interface type |
2.5 Gigabit Ethernet |
| Top Wi-Fi standard |
Wi-Fi 7 (802.11be) |
| Wi-Fi standards |
Wi-Fi 7 (802.11be) |
| Bluetooth |
Yes |
| Bluetooth version |
5.4 |
| Expansion slots |
| PCI Express x16 (Gen 5.x) slots |
1 |
| Number of M.2 (M) slots |
4 |
| Packaging content |
| Antenna included |
Yes |
| BIOS |
| BIOS type |
UEFI AMI |
| BIOS memory size |
256 Mbit |
| Clear CMOS button |
Yes |
| Graphics |
| Parallel processing technology support |
Not supported |
| Features |
| Component for |
PC |
| Motherboard form factor |
micro ATX |
| Motherboard chipset family |
AMD |
| Motherboard chipset |
AMD B850 |
| Audio output channels |
7.1 channels |
| Product colour |
White |
| Windows operating systems supported |
Windows 11 |
| Storage controllers |
| Supported storage drive interfaces |
M.2, SATA III |
| Supported storage drive types |
HDD & SSD |
| Number of HDDs supported |
2 |
| Number of storage drives supported |
6 |
| RAID support |
Yes |
| RAID levels |
0, 1, 5, 10 |
| Packaging data |
| Package width |
285 mm |
| Package depth |
277 mm |
| Package height |
72.5 mm |
Features
ASUS ROG STRIX B850-G GAMING WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: Wi-Fi 7 (802.11be). Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: AMD
Product Description
ASUS ROG Strix B850-G Gaming WiFi AMD mATX motherboard, 14+2+1 power stages, DDR5 slots, four M.2 slots, PCIe® 5.0, WiFi 7, USB 20Gbps Type-C® and Aura Sync RGB
