Stock Status: 1x unit in stock
All the connections you need
ASUS Triple 4K Thunderbolt™ 4 Dock is an all-in-one docking station designed for creators, and is the smallest 12-in-1 Thunderbolt™ 4 dock. It requires just a single cable connection to a creator laptop to hook up to multiple 4K displays and peripherals, as well as memory card readers for a complete, highly efficient creative workstation.
Productivity
Triple 4K display support and dual HDMI 2.1
With Thunderbolt™ 4 and two HDMI 2.1 ports, ASUS Triple 4K Thunderbolt™ 4 Dock gives creators the ability to multitask and work with greater levels of detail across a single 8K monitor or a triple 4K display setup.
Versatility
Unparalleled 8K visuals
Enthralling viewing experiences are possible with ultrahigh 8K resolution via HDMI 2.1 or Thunderbolt™ 4. Check the table below for specific resolutions1 for all monitor2 combinations.
Connectivity
Simultaneous multi-device connections
ASUS Triple 4K Thunderbolt™ 4 Dock includes a multitude of I/O ports that enable simultaneous connections to a myriad of devices, including cameras, drones, and others. Plus, it includes two card readers catering to SD and microSD cards to give users the flexibility to back up data from various devices quickly and easily.
Faste speed
Faster data transfers
High-speed data transfers are facilitated with 2.5 G Ethernet and Thunderbolt™ 4 connectivity, even for large files, allowing users to get more done in less time. For example, 12 seconds is all it takes to transfer a 20 GB image file. The UFP Thunderbolt™ 4 port offers up to 96 W passthrough charging. The ASUS Triple 4K Thunderbolt™ 4 Dock also makes it easy for IT administrators to manage company assets and keep information safe with MAC address pass-through3, remote port-disablement, and Wake-on-LAN.
Design
Compact, innovative design

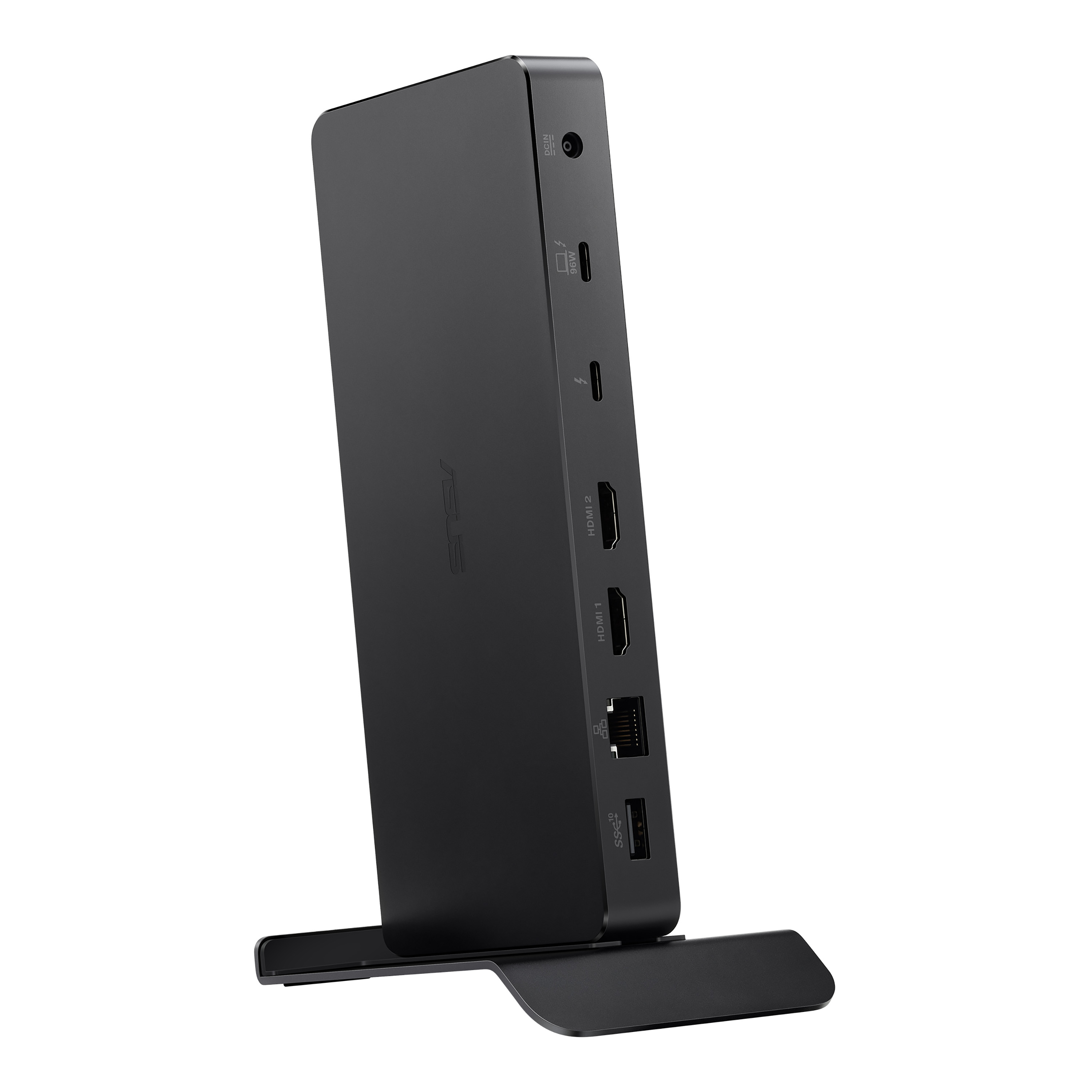

ASUS Triple 4K Thunderbolt™ 4 Dock is the smallest Thunderbolt™ 4-enabled 12-in-1 dock. Finished in aluminum, its chiseled, rectangular design fits perfectly under a monitor stand to ensure a neat workstation setup. Innovative cooling features keep internal temperatures at optimal levels to ensure sustained high performance.
Design
A well-organized workstation
The adjustable aluminum stand gives ASUS Triple 4K Thunderbolt™ 4 Dock a firm footing when placed on a table, and it even includes a locking knob that secures it to the edge of a desk or rear of a monitor.
Specs
| Weight & dimensions |
| Width |
185 mm |
| Depth |
80 mm |
| Height |
21 mm |
| Weight |
335 g |
| Ports & interfaces |
| Connectivity technology |
Wired |
| Host interface |
Thunderbolt 4 |
| USB 2.0 ports quantity |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
0 |
| HDMI ports quantity |
2 |
| Microphone in |
No |
| Headphone outputs |
0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
2 |
| USB Power Delivery (USB PD) |
Yes |
| USB Power Delivery up to |
96 W |
| HDMI version |
2.1 |
| Thunderbolt 4 ports quantity |
1 |
| Combo headphone/mic port |
Yes |
| DC-in jack |
Yes |
| Power |
| Power source type |
DC |
| Power supply |
150 W |
| Output voltage |
20 V |
| Output current |
7.5 A |
| Packaging content |
| AC adapter included |
Yes |
| Networking |
| Ethernet LAN |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| Ethernet LAN data rates |
10,100,1000,2500 Mbit/s |
| Wake-on-LAN ready |
Yes |
| Performance |
| Product colour |
Black |
| Card reader integrated |
Yes |
| Compatible memory cards |
MicroSD (TransFlash), SD |
| Maximum digital resolution |
3840 x 2160 pixels |
| Number of displays supported |
3 |
| Maximum refresh rate |
60 Hz |
| Cable lock slot |
Yes |
| Cable lock slot type |
Kensington |
| On/off switch |
Yes |
| Housing material |
Metal, Plastic |
| Software |
| Windows operating systems supported |
Windows 10, Windows 11 |
| Mac operating systems supported |
Yes |
| Packaging data |
| Quantity per pack |
1 pc(s) |
Features
ASUS Triple 4K Thunderbolt 4 Dock DC500. Connectivity technology: Wired, Host interface: Thunderbolt 4, USB Power Delivery up to: 96 W. Ethernet LAN data rates: 10,100,1000,2500 Mbit/s. Product colour: Black, Compatible memory cards: MicroSD (TransFlash), SD, Maximum digital resolution: 3840 x 2160 pixels. Power source type: DC, Power supply: 150 W, Output voltage: 20 V. Windows operating systems supported: Windows 10, Windows 11
