Extend your vision. Free your world.

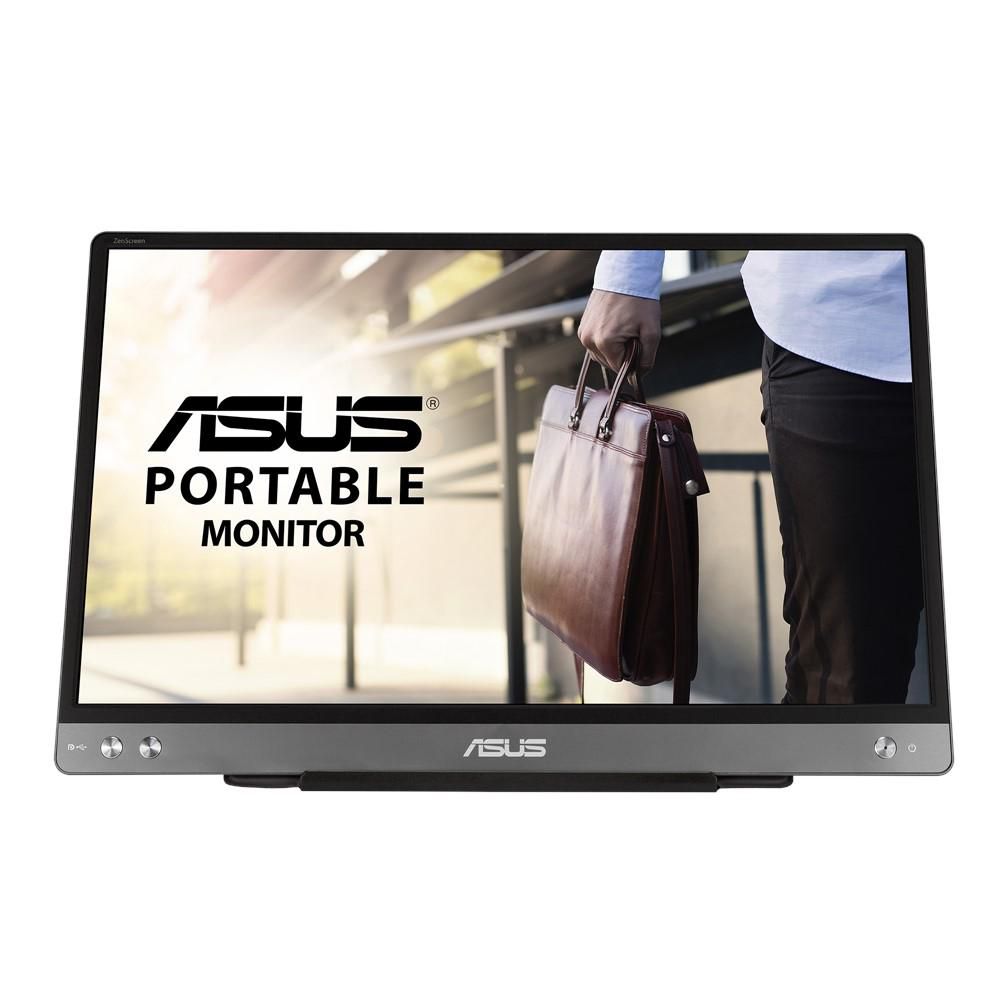

ASUS ZenScreen™ MB14AC is designed to keep you productive, wherever you are. It‘s the portable monitor with a hybrid USB-C signal solution(DP Alt mode+ USB 3.0), which means that it only needs a single USB-C cable for both power and video transmission. With a slim 9mm profile, and weighing just 0.59kg, ZenScreen MB14AC is also a compact 14-inch companion monitor to meet different needs for laptop users.
Hybrid-signal solution: USB Type-A and Type-C support
ZenScreen™ MB14AC only requires a single USB connection for both power and video transmission from your host device. It features an innovative hybrid-signal solution with native support for USB Type-C™ (USB-C™) connections, and uses an installed driver* to support USB Type-A connectors for full compatibility. The reversible, any-way-up USB-C design enables quick, hassle-free connection to any device.
*DisplayLink driver required for hybrid-signal connections via USB Type-A. Please visit the Support site to get the download information.
Slim and stylish ultraportable design
ZenScreen™ MB14AC is ideal for use as a secondary monitor for dual-monitor presentations, and its versatility helps you get things done more efficiently when you're on the go. It barely tips the scales at a lightweight 590g, and with its ultra-slim 9mm profile it fits easily in any travel bag.
Wide viewing angles
ZenScreen™ MB14AC features a Full HD panel that delivers stunning 1920 x 1080 resolution visuals with outstanding color reproduction. It uses IPS technology to give you more flexibility when extending your screen, so you still get superb color and contrast - even from extreme viewing positions.
Designed with versatility
The new foldable smart case protects ZenScreen™ MB14AC from dust and scratches with lighter weight. The case can be folded into a stand to prop the monitor up in either portrait or landscape orientation. Besides, the exclusively designed mounting hole on the rear cover, which supports standard 1/4 “ screw thread, lets you assemble a conventional tripod or tabletop mounting system with ease.
Protect your eyes with ASUS Eye Care technology
ASUS blue light filter
Exclusive ASUS Ultra-Low Blue Light technology protects you from harmful blue light. It offers four blue-light filter settings that are easily accessed through the onscreen display menu via the hotkey.
ASUS Flicker-free technology
It's time to say goodbye to those tired, strained eyes. ZenScreen MB14AC features TÜV Rheinland-certified ASUS Flicker-free technology to reduce flicker for a comfortable viewing experience. This technology helps minimize instances of eyestrain and other damaging ailments, especially when you spend long, countless hours in front of a display watching favorite videos.
Specs
| Weight & dimensions |
| Width (with stand) |
324.9 mm |
| Depth (with stand) |
11.2 mm |
| Height (with stand) |
208 mm |
| Weight (with stand) |
590 g |
| Power |
| Energy efficiency class (SDR) |
B |
| Energy consumption (SDR) per 1000 hours |
5 kWh |
| Power consumption (typical) |
7 W |
| Power consumption (off) |
0 W |
| Power consumption (PowerSave) |
0 W |
| Energy efficiency scale |
A to G |
| Display |
| Display diagonal |
35.6 cm (14") |
| Display resolution |
1920 x 1080 pixels |
| Native aspect ratio |
16:9 |
| Touchscreen |
No |
| HD type |
Full HD |
| Panel type |
IPS |
| Response time |
5 ms |
| Screen shape |
Flat |
| Contrast ratio (typical) |
700:1 |
| Maximum refresh rate |
60 Hz |
| Display number of colours |
16.78 million colours |
| Display brightness (typical) |
250 cd/m² |
| Supported graphics resolutions |
640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 960, 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080) |
| Aspect ratio |
16:9 |
| Viewing angle, horizontal |
178° |
| Viewing angle, vertical |
178° |
| Pixel pitch |
0.16 x 0.16 mm |
| Viewable size, horizontal |
30.9 cm |
| Viewable size, vertical |
17.4 cm |
| Viewable size diagonal |
35.6 cm |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Ports & interfaces |
| HDMI |
No |
| Headphone out |
No |
| VGA (D-Sub) ports quantity |
0 |
| DVI port |
No |
| HDMI ports quantity |
0 |
| DisplayPorts quantity |
0 |
| Audio input |
No |
| HDCP |
Yes |
| Ergonomics |
| VESA mounting |
No |
| Cable lock slot |
No |
| Height adjustment |
No |
| LED indicators |
Yes |
| Other features |
| Certification |
BSMI, CB, CCC, CU, FCC, J-MOSS, KCC, UkrSEPRO, UL/cUL, VCCI, WEEE, WHQL (Windows 10, Windows 8.1, Windows 7), TUV Flicker-free, TUV Low Blue Light, RCM |
| Design |
| Market positioning |
Business |
| Product colour |
Grey |
| Performance |
| Flicker-free technology |
Yes |
| Low Blue Light technology |
Yes |
| Multimedia |
| Built-in speaker(s) |
No |
| Built-in camera |
No |
| Packaging data |
| Package width |
392 mm |
| Package depth |
77 mm |
| Package height |
257 mm |
| Package weight |
1.3 kg |
| Logistics data |
| Harmonized System (HS) code |
85285210 |
| Packaging content |
| Cables included |
USB Type-C to USB Type-C |
| Network |
| Wi-Fi |
No |
Features
ASUS MB14AC. Display diagonal: 35.6 cm (14"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Response time: 5 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Product colour: Grey
Product Description
Extend your vision. Free your world.
ASUS ZenScreen™ MB14AC is designed to keep you productive, wherever you are. It‘s the portable monitor with a hybrid USB-C signal solution(DP Alt mode+ USB 3.0), which means that it only needs a single USB-C cable for both power and video transmission. With a slim 9mm profile, and weighing just 0.59kg, ZenScreen MB14AC is also a compact 14-inch companion monitor to meet different needs for laptop users.
Hybrid-signal solution: USB Type-A and Type-C support
ZenScreen™ MB14AC only requires a single USB connection for both power and video transmission from your host device. It features an innovative hybrid-signal solution with native support for USB Type-C™ (USB-C™) connections, and uses an installed driver* to support USB Type-A connectors for full compatibility. The reversible, any-way-up USB-C design enables quick, hassle-free connection to any device.
*DisplayLink driver required for hybrid-signal connections via USB Type-A. Please visit the Support site to get the download information.
Slim and stylish ultraportable design
ZenScreen™ MB14AC is ideal for use as a secondary monitor for dual-monitor presentations, and its versatility helps you get things done more efficiently when you're on the go. It barely tips the scales at a lightweight 590g, and with its ultra-slim 9mm profile it fits easily in any travel bag.
Wide viewing angles
ZenScreen™ MB14AC features a Full HD panel that delivers stunning 1920 x 1080 resolution visuals with outstanding color reproduction. It uses IPS technology to give you more flexibility when extending your screen, so you still get superb color and contrast - even from extreme viewing positions.
Designed with versatility
The new foldable smart case protects ZenScreen™ MB14AC from dust and scratches with lighter weight. The case can be folded into a stand to prop the monitor up in either portrait or landscape orientation. Besides, the exclusively designed mounting hole on the rear cover, which supports standard 1/4 “ screw thread, lets you assemble a conventional tripod or tabletop mounting system with ease.
Protect your eyes with ASUS Eye Care technology
ASUS blue light filter
Exclusive ASUS Ultra-Low Blue Light technology protects you from harmful blue light. It offers four blue-light filter settings that are easily accessed through the onscreen display menu via the hotkey.
ASUS Flicker-free technology
It's time to say goodbye to those tired, strained eyes. ZenScreen MB14AC features TÜV Rheinland-certified ASUS Flicker-free technology to reduce flicker for a comfortable viewing experience. This technology helps minimize instances of eyestrain and other damaging ailments, especially when you spend long, countless hours in front of a display watching favorite videos.
