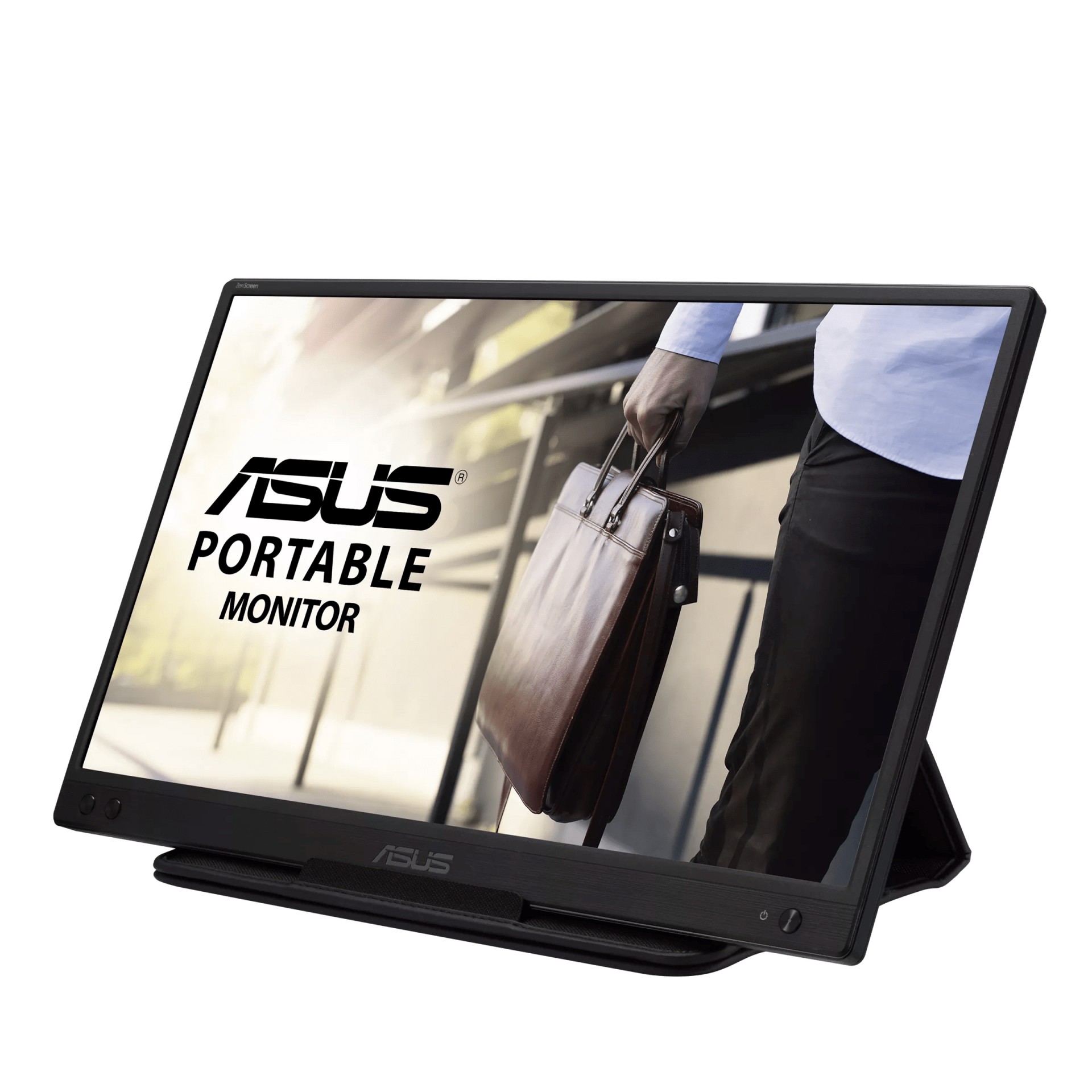

Sleek and portable design
ASUS ZenScreen™ MB166B is ideal for life on the road. This sleek portable display weighs just 0.78kg and has an 11.8 mm slim profile, so it fits easily in any travel bag and is ready for productivity, anytime and anywhere.
One cable is all you need
ZenScreen™ MB166B portable USB-powered monitor needs just one USB cable for both its video signal* and power, to be fully compatible with almost any laptop.
*Please install the USB Monitor Driver first (download) prior to using it. Then connect the upper micro B USB 3.0 port for video connection with PC/ laptop by inbox cable.
Work in comfort
A ¼”-threaded hole at the rear of the monitor lets you to attach ZenScreen MB166B to a conventional tripod* or table-mount easily.
*Tripod is not included with ZenScreen MB166B.
Work efficiently in portrait and landscape modes
With ASUS DisplayWidget software*, ZenScreen MB166B can automatically sense its orientation and switch the display between landscape and portrait modes while connected to your laptop. Landscape mode is ideal for presentations and spreadsheets, while Portrait mode gives you a perfect view of items such as documents, books or websites.
*Driver required. Auto Rotate function only works with Windows OS
Extend your workspace
The FHD (1920 x 1080) IPS panel delivers stunning visuals and 178° viewing angles, ensuring you get superb color and contrast even when viewing the screen from off-center positions.
Specs
| Weight & dimensions |
| Width (without stand) |
360.1 mm |
| Depth (without stand) |
11.8 mm |
| Height (without stand) |
225.6 mm |
| Weight (without stand) |
780 g |
| Power |
| Energy efficiency class (SDR) |
B |
| Energy consumption (SDR) per 1000 hours |
6 kWh |
| Power consumption (typical) |
7 W |
| Power consumption (off) |
0.3 W |
| Power consumption (PowerSave) |
0.5 W |
| Input current |
3 A |
| AC adapter output voltage |
5 V |
| Energy efficiency scale |
A to G |
| Display |
| Display diagonal |
39.6 cm (15.6") |
| Display resolution |
1920 x 1080 pixels |
| Native aspect ratio |
16:9 |
| Touchscreen |
No |
| HD type |
Full HD |
| Panel type |
IPS |
| Response time |
25 ms |
| Screen shape |
Flat |
| Contrast ratio (typical) |
1000:1 |
| Maximum refresh rate |
60 Hz |
| Display number of colours |
262000 colours |
| Backlight type |
LED |
| Display brightness (typical) |
250 cd/m² |
| Anti-glare screen |
Yes |
| Viewing angle, horizontal |
178° |
| Viewing angle, vertical |
178° |
| Pixel pitch |
0.179 x 0.179 mm |
| Viewable size, horizontal |
34.4 cm |
| Viewable size, vertical |
19.4 cm |
| Digital vertical frequency |
60 - 60 Hz |
| Display diagonal (metric) |
39.62 cm |
| Ports & interfaces |
| Built-in USB hub |
Yes |
| HDMI |
No |
| Headphone out |
No |
| USB hub version |
3.2 Gen 1 (3.1 Gen 1) |
| Number of upstream ports |
1 |
| Ergonomics |
| Height adjustment |
No |
| Design |
| Market positioning |
Home |
| Product colour |
Black |
| Performance |
| NVIDIA G-SYNC |
No |
| AMD FreeSync |
No |
| Multimedia |
| Built-in speaker(s) |
No |
| Built-in camera |
No |
| Packaging data |
| Package width |
434 mm |
| Package depth |
76 mm |
| Package height |
290 mm |
| Package weight |
1.65 kg |
| Package type |
Box |
| Packaging content |
| Cables included |
USB |
| Quick start guide |
Yes |
Features
ASUS ZenScreen MB166B. Display diagonal: 39.6 cm (15.6"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Response time: 25 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in USB hub, USB hub version: 3.2 Gen 1 (3.1 Gen 1). Product colour: Black
Product Description
Sleek and portable design
ASUS ZenScreen™ MB166B is ideal for life on the road. This sleek portable display weighs just 0.78kg and has an 11.8 mm slim profile, so it fits easily in any travel bag and is ready for productivity, anytime and anywhere.
One cable is all you need
ZenScreen™ MB166B portable USB-powered monitor needs just one USB cable for both its video signal* and power, to be fully compatible with almost any laptop.
*Please install the USB Monitor Driver first (download) prior to using it. Then connect the upper micro B USB 3.0 port for video connection with PC/ laptop by inbox cable.
Work in comfort
A ¼”-threaded hole at the rear of the monitor lets you to attach ZenScreen MB166B to a conventional tripod* or table-mount easily.
*Tripod is not included with ZenScreen MB166B.
Work efficiently in portrait and landscape modes
With ASUS DisplayWidget software*, ZenScreen MB166B can automatically sense its orientation and switch the display between landscape and portrait modes while connected to your laptop. Landscape mode is ideal for presentations and spreadsheets, while Portrait mode gives you a perfect view of items such as documents, books or websites.
*Driver required. Auto Rotate function only works with Windows OS
Extend your workspace
The FHD (1920 x 1080) IPS panel delivers stunning visuals and 178° viewing angles, ensuring you get superb color and contrast even when viewing the screen from off-center positions.
