Stock Status: 1x unit in stock

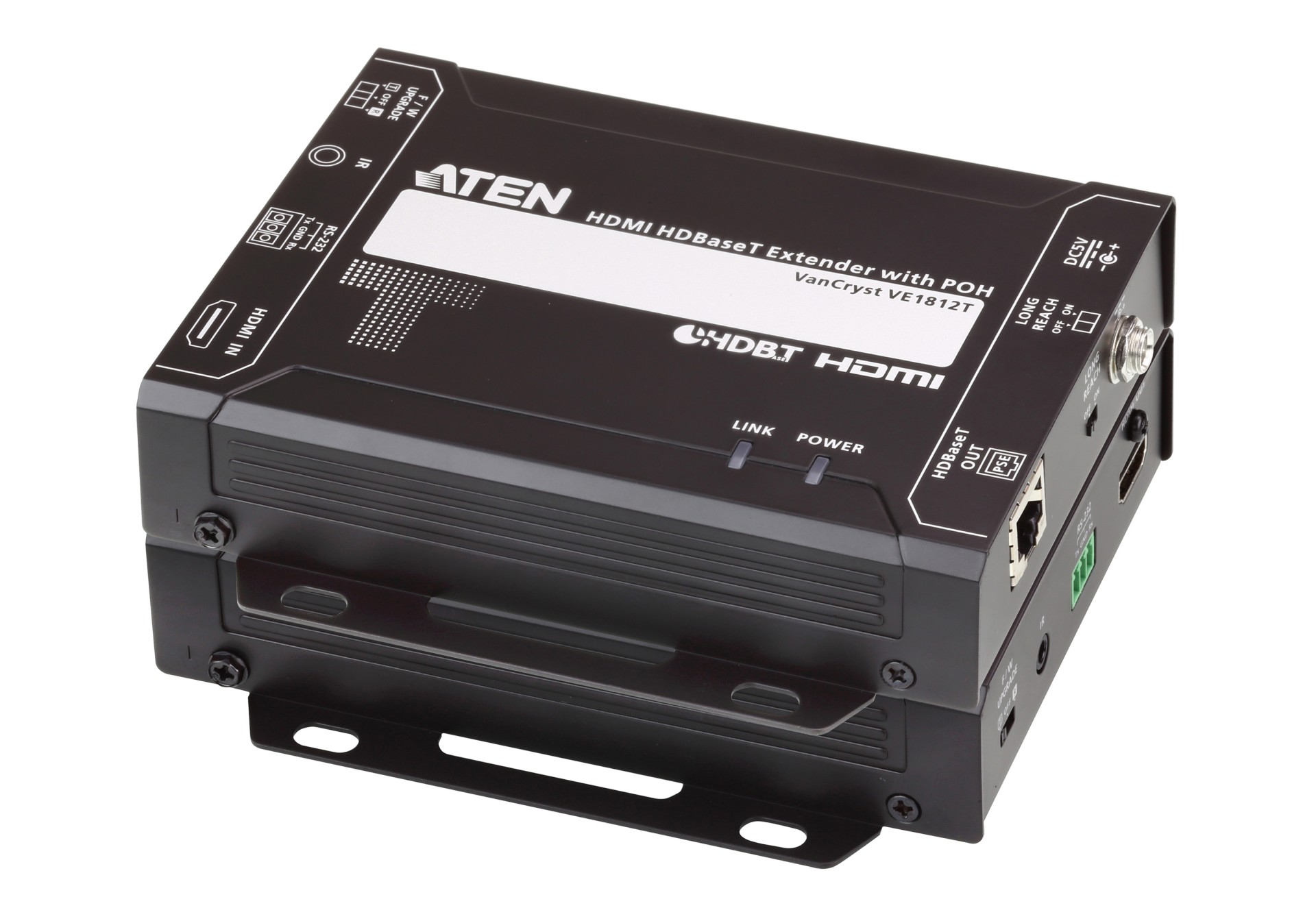

The VE1812 HDMI HDBaseT Extender with POH is the ideal solution for connecting equipment in remote locations up to 100m over a single Cat 5e / 6 / 6a cable. With Long Reach Mode enabled, the VE1812 can extend HDMI signal up to 150m @1080p.
The VE1812 supports RS-232 and IR signaling pass-through, allowing you to control the HDMI source device from the receiver unit (VE1812R) while also accessing the HDMI display device from the transmitter unit (VE1812T). The IR signals can also be extended in both directions.
The VE1812 features Power over HDBaseT (POH) which sends power from Tx to Rx over Cat 5e / 6 / 6a cable without any additional power supply. The VE1812 is HDMI (3D, Deep Color, 4kx2k) and HDCP compatible. When transmitting HDMI / 4K with a Cat 6a or ATEN 2L-2910 Cat 6 cable, the maximum distance can reach up to 100 meters. The VE1812 is perfect for digital classrooms, video conference rooms, gaming or any installation that requires superior video quality.
Specs
| Technical details |
| Compliance certificates |
RoHS |
| Ports & interfaces |
| Connectivity technology |
Wired |
| RJ-45 input ports |
1 |
| RJ-45 output ports |
1 |
| HDBaseT port |
Yes |
| HDMI in |
1 |
| Number of HDMI outputs |
1 |
| RS-232 input ports |
1 |
| RS-232 output ports |
1 |
| Video in |
1 |
| Video out |
1 |
| 3.5 mm (1/8-inch) in |
Yes |
| 3.5 mm (1/8-inch) out |
Yes |
| Remote (IR) input |
1 |
| Remote (IR) output |
1 |
| DC-in jack |
Yes |
| Weight & dimensions |
| Receiver dimensions (WxDxH) |
123 x 140.4 x 30 mm |
| Receiver weight |
450 g |
| Transmitter dimensions (WxDxH) |
123 x 140.4 x 30 mm |
| Transmitter weight |
470 g |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
0 - 80% |
| Power |
| Operating voltage (transmitter) |
5 V |
| Operating voltage (receiver) |
5 V |
| Power consumption (transmitter) (max) |
4.3 W |
| Power consumption (receiver) (max) |
6.4 W |
| External power adapter |
Yes |
| Packaging content |
| AC adapter included |
Yes |
| Quick start guide |
Yes |
| Features |
| Type |
AV transmitter & receiver |
| Maximum resolution |
4096 x 2160 pixels |
| Cable types supported |
Cat5e, Cat6, Cat6a |
| Maximum transfer distance |
150 m |
| LED indicators |
Yes |
| Supported video modes |
1080p |
| Supported graphics resolutions |
3840 x 2160, 4096 x 2160 |
| Bandwidth |
340 MHz |
| HDCP |
Yes |
| Material |
Metal |
| 3D |
Yes |
| Firmware upgradeable |
Yes |
| Consumer Electronics Control (CEC) support |
Yes |
| Impedance |
100 Ω |
| Product colour |
Black |
Related Products
|
ATEN VanCryst 4 X 4 4K HDMI Matrix Switch VM0404HA - Video/audio Switch - Desktop VM0404HA - C2000
|
|
ATEN CS1844 KVMP Switch - KVM / Audio / USB Switch - 4 X KVM / Audio / USB - 1 Local User - Desktop - For VanCryst VS184B CS1844 - C2000
|
|
ATEN VanCryst VM0202H 2x2 4K HDMI Matrix - Video/audio Switch - Desktop, Rack-mountable VM0202H - C2000
|
|
ATEN VanCryst VS184B - Video/audio Splitter - 4 X HDMI - Desktop - For VanCryst VS182B, VS184B VS184B - C2000
|
|
ATEN CS1842 2-Port USB 3.0 4K HDMI Dual Display KVMP Switch - KVM / Audio / USB Switch - 2 X KVM / Audio / USB - 1 Local User - Desktop - For VanCryst VS184B CS1842 - C2000
|
|
Aten 10M HDMI 1.4 Cable M/M 28AWG Gold Black 2L-7D10H - eet01
|
|
Aten High Speed HDMI Cable with Ethernet True 4K ( 4096X2160 2L-7D02H-1 - eet01
|
|
Aten LockPro - HDMI Cable Lock 2X-EA12, Yellow, HDMI, 64.7 x 2X-EA12 - eet01
|
|
ATEN VanCryst VE811 HDMI HDBaseT Extender - Transmitter And Receiver - Video/audio Extender - HDBaseT - Up To 150 M - For ATEN VM5404, VM5808, VanCryst VM0808, VM1600, VM3200, VM5404, VM6809, - C2000
|
|
ATEN 2L-7D01H - HDMI Cable With Ethernet - HDMI Male To HDMI Male - 1 M - Shielded - Black - 4K Support - For ATEN VM5404HA, VM5808HA, VanCryst VM0808HA, VM5404H, VM6404HB, VM6809H, VS0801H 2 - C2000
|
Features
ATEN VE1812. Type: AV transmitter & receiver, Maximum resolution: 4096 x 2160 pixels, Cable types supported: Cat5e, Cat6, Cat6a. Connectivity technology: Wired. Operating voltage (transmitter): 5 V, Operating voltage (receiver): 5 V, Power consumption (transmitter) (max): 4.3 W. Receiver dimensions (WxDxH): 123 x 140.4 x 30 mm, Receiver weight: 450 g, Transmitter dimensions (WxDxH): 123 x 140.4 x 30 mm
Product Description
The VE1812 HDMI HDBaseT Extender with POH is the ideal solution for connecting equipment in remote locations up to 100m over a single Cat 5e / 6 / 6a cable. With Long Reach Mode enabled, the VE1812 can extend HDMI signal up to 150m @1080p.
The VE1812 supports RS-232 and IR signaling pass-through, allowing you to control the HDMI source device from the receiver unit (VE1812R) while also accessing the HDMI display device from the transmitter unit (VE1812T). The IR signals can also be extended in both directions.
The VE1812 features Power over HDBaseT (POH) which sends power from Tx to Rx over Cat 5e / 6 / 6a cable without any additional power supply. The VE1812 is HDMI (3D, Deep Color, 4kx2k) and HDCP compatible. When transmitting HDMI / 4K with a Cat 6a or ATEN 2L-2910 Cat 6 cable, the maximum distance can reach up to 100 meters. The VE1812 is perfect for digital classrooms, video conference rooms, gaming or any installation that requires superior video quality.
