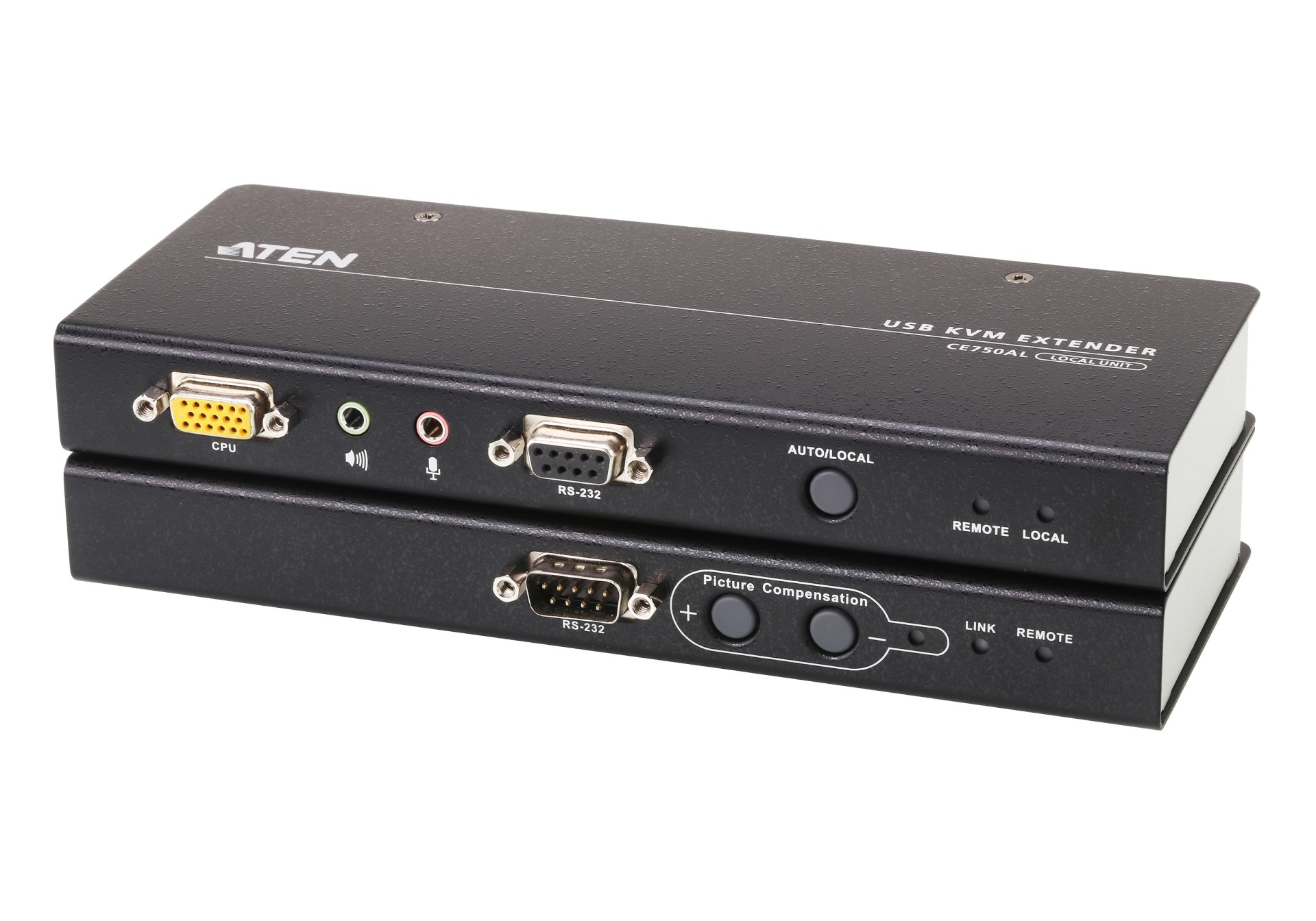

The CE750A is a USB-based KVM Extender with automatic signal compensation and RS-232 serial functionality that allows access to a computer system from a remote USB console (USB keyboard, monitor, and USB mouse).
Because it allows access to a computer system from a remote console, the CE750A is perfect for use in any type of installation where you need to place the console where it is conveniently accessible, but you want the system equipment to reside in a safe location – for example away from the dust and dirt of the factory floor or the harsh environment of a construction site.
The CE750A improves on previous designs by the addition of an RS-232 port, on both the Local and Remote Units, that allows you to connect to a serial terminal for configuration (Local Unit) or serial devices such as touchscreens and barcode scanners (Remote Unit).
Specs
| Operational conditions |
| Operating temperature (T-T) |
0 - 50 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
0 - 80% |
| Weight & dimensions |
| Transmitter width |
8.63 cm |
| Transmitter depth |
20.2 cm |
| Transmitter height |
2.5 cm |
| Transmitter weight |
470 g |
| Receiver width |
8.51 cm |
| Receiver depth |
20.2 cm |
| Receiver height |
2.5 cm |
| Receiver weight |
470 g |
| Features |
| Type |
Transmitter & receiver |
| Connectivity technology |
Wired |
| Maximum transfer distance |
200 m |
| Cable types supported |
Cat5 |
| Maximum digital resolution |
1920 x 1200 pixels |
| KVM port selection |
Push-buttons |
| Product colour |
Black |
| Material |
Metal |
| Certification |
RoHS |
| Transmitter |
| Transmitter local video port type |
VGA |
| Transmitter local keyboard/mouse port type |
USB |
| Receiver |
| Receiver local video port type |
VGA |
| Receiver local keyboard/mouse port type |
USB |
Features
ATEN USB VGA KVM Extender with Audio and RS-232 (200m). Type: Transmitter & receiver, Connectivity technology: Wired, Maximum transfer distance: 200 m. Transmitter local video port type: VGA, Transmitter local keyboard/mouse port type: USB. Receiver local video port type: VGA, Receiver local keyboard/mouse port type: USB. Transmitter width: 8.63 cm, Transmitter depth: 20.2 cm, Transmitter height: 2.5 cm
Product Description
The CE750A is a USB-based KVM Extender with automatic signal compensation and RS-232 serial functionality that allows access to a computer system from a remote USB console (USB keyboard, monitor, and USB mouse).
Because it allows access to a computer system from a remote console, the CE750A is perfect for use in any type of installation where you need to place the console where it is conveniently accessible, but you want the system equipment to reside in a safe location – for example away from the dust and dirt of the factory floor or the harsh environment of a construction site.
The CE750A improves on previous designs by the addition of an RS-232 port, on both the Local and Remote Units, that allows you to connect to a serial terminal for configuration (Local Unit) or serial devices such as touchscreens and barcode scanners (Remote Unit).
