Stock Status: 1x unit in stock

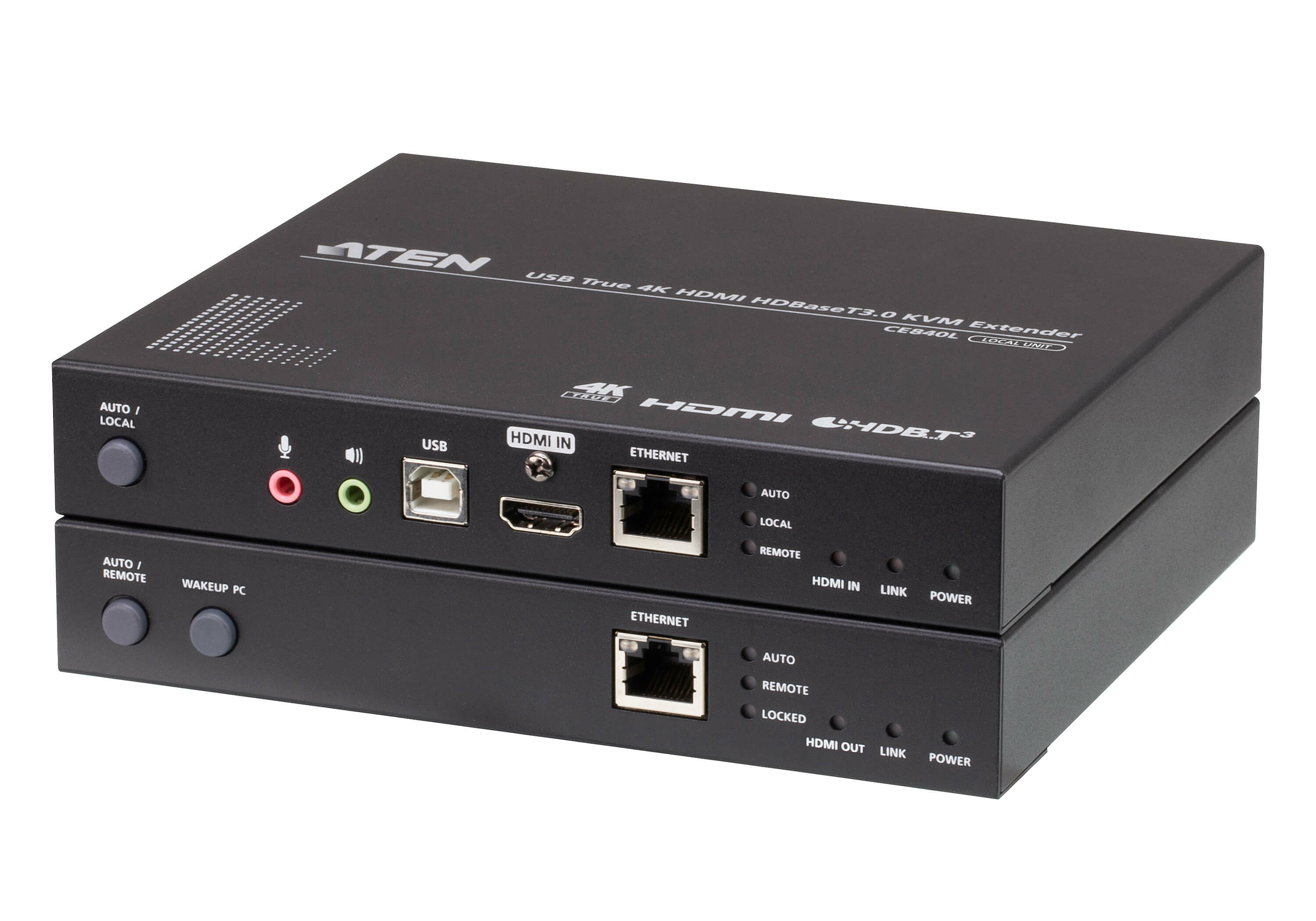

Adopting the latest HDBaseT 3.0 technology, CE840 USB True 4K HDMI HDBaseT 3.0 KVM Extender consists of a local unit and a remote unit, enabling uncompressed True 4K HDMI, audio, RS232, Ethernet, and USB signal transmission across 100m over a single Cat 6A cable (ATEN 2L-2920 Cat 6A Cable recommended) or above. Installation is made easy, neat, and cost-efficient with no compromises on high quality distribution of AV content. The CE840 allows for dual console operation via the two USB ports for USB keyboard and mouse connection and the pushbuttons for switching USB control console between the remote and local end. LEDs on the front panel help indicate which USB control mode that is currently on. Moreover, each unit contains an HDMI output port for local control and the other two USB 2.0 ports for USB peripheral connection. Consequently, operators can acquire data and manage equipment in one location, even from a distance.
The CE840 showcases excellent AV performance with no compression and zero latency. In addition to the support for HDR 10+, the extender is also capable of delivering video signals at up to True 4K (3840 x 2160 @ 60 Hz 4:4:4 and 4096 x 2160 @ 60 Hz 4:4:4) over 100 m. The extender also supports individual stereo audio and HDMI audio formats including LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio.
CE840 is an ideal solution for medium to large size applications that require uncompressed AV and control signal extension and remote access and control, including factories, warehouses, data centers, as well as medical and healthcare applications where precise visualization and accurate representation are essential.
Specs
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
0 - 80% |
| Weight & dimensions |
| Transmitter width |
15.6 cm |
| Transmitter depth |
17.8 cm |
| Transmitter height |
2.88 cm |
| Transmitter weight |
820 g |
| Receiver width |
15.6 cm |
| Receiver depth |
17.8 cm |
| Receiver height |
2.88 cm |
| Receiver weight |
810 g |
| Packaging data |
| Package width |
131 mm |
| Package depth |
540 mm |
| Package height |
233 mm |
| Package weight |
2.98 kg |
| Power |
| Power consumption (transmitter) (max) |
7.36 W |
| Power consumption (receiver) (max) |
7.37 W |
| DC-in jack |
Yes |
| DC voltage |
12 V |
| Features |
| Type |
Transmitter & receiver |
| Connectivity technology |
Wired |
| Maximum transfer distance |
100 m |
| Maximum digital resolution |
4096 x 2160 pixels |
| Supported resolutions |
4096 x 2160
3840 x 2160 |
| Product colour |
Black |
| Material |
Metal |
| LED indicators |
Yes |
| Transmitter |
| Transmitter video port type |
HDMI |
| Transmitter local video port |
Yes |
| Transmitter local video port type |
HDMI |
| RJ-45 ports quantity (transmitter) |
1 |
| Transmitter USB Type-B ports quantity |
1 |
| Receiver |
| Receiver local video port type |
HDMI |
| RJ-45 ports quantity (receiver) |
1 |
| Ports & interfaces |
| USB port type |
USB Type-B |
| RS-232 ports |
1 |
| Logistics data |
| Country of origin |
Taiwan |
| Harmonized System (HS) code |
85176200 |
| Master (outer) case width |
247 mm |
| Master (outer) case length |
556 mm |
| Master (outer) case height |
153 mm |
| Master (outer) case gross weight |
3.54 kg |
| Other features |
| HDCP |
Yes |
| HDCP version |
2.3 |
| Bandwidth |
18 Gbit/s |
| Supported video modes |
480p, 600p, 768p, 800p, 900p, 1024p, 1080i, 1080p, 1440p, 2160p |
Features
ATEN CE840-AT-U. Type: Transmitter & receiver, Connectivity technology: Wired, Maximum transfer distance: 100 m. Transmitter video port type: HDMI, Transmitter local video port type: HDMI. Receiver local video port type: HDMI. USB port type: USB Type-B. Power consumption (transmitter) (max): 7.36 W, Power consumption (receiver) (max): 7.37 W, DC voltage: 12 V
Product Description
Adopting the latest HDBaseT 3.0 technology, CE840 USB True 4K HDMI HDBaseT 3.0 KVM Extender consists of a local unit and a remote unit, enabling uncompressed True 4K HDMI, audio, RS232, Ethernet, and USB signal transmission across 100m over a single Cat 6A cable (ATEN 2L-2920 Cat 6A Cable recommended) or above. Installation is made easy, neat, and cost-efficient with no compromises on high quality distribution of AV content. The CE840 allows for dual console operation via the two USB ports for USB keyboard and mouse connection and the pushbuttons for switching USB control console between the remote and local end. LEDs on the front panel help indicate which USB control mode that is currently on. Moreover, each unit contains an HDMI output port for local control and the other two USB 2.0 ports for USB peripheral connection. Consequently, operators can acquire data and manage equipment in one location, even from a distance.
The CE840 showcases excellent AV performance with no compression and zero latency. In addition to the support for HDR 10+, the extender is also capable of delivering video signals at up to True 4K (3840 x 2160 @ 60 Hz 4:4:4 and 4096 x 2160 @ 60 Hz 4:4:4) over 100 m. The extender also supports individual stereo audio and HDMI audio formats including LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio.
CE840 is an ideal solution for medium to large size applications that require uncompressed AV and control signal extension and remote access and control, including factories, warehouses, data centers, as well as medical and healthcare applications where precise visualization and accurate representation are essential.
