Stock Status: 1x unit in stock
Features

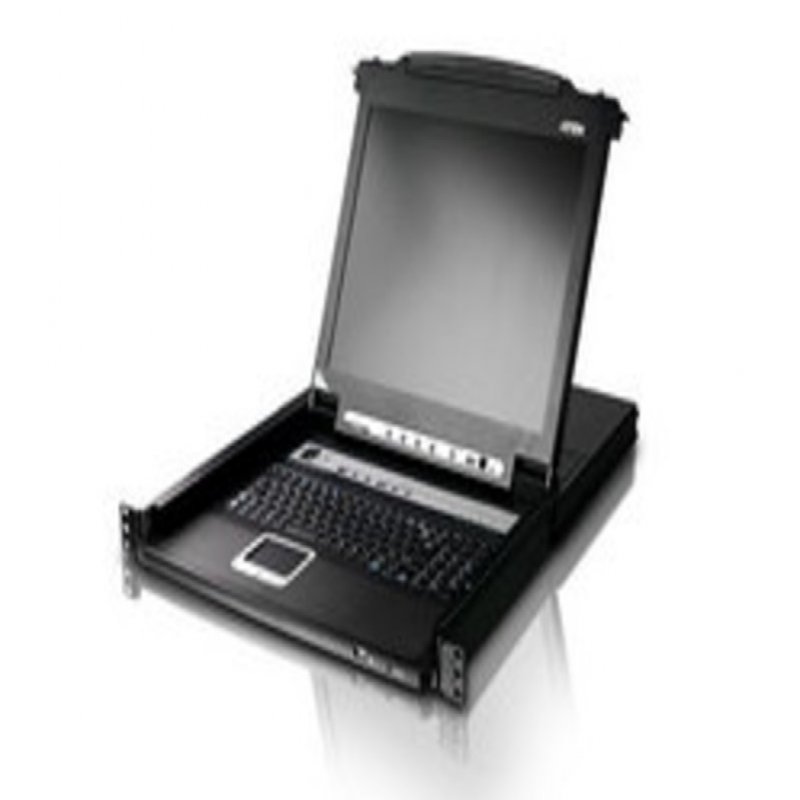

- Integrated KVM console with 17" LCD monitor in a Slideaway™ housing
- Available with or without Fingerprint Identification Reader**
- Space saving technology - up to two consoles (one bus) control up to 8 computers
- Daisy-chain up to 31 additional units - control up to 256 computers from a single console (With compatible KVM Switches: ACS1208A, ACS1216A, CS1708A,CS1716A)
- Dual Interface - supports computers and console with PS/2 or USB keyboards and mice
- LCD module USB port allows each computer to access USB peripherals*
- LCD module rotates up to 115 degrees for a more comfortable viewing angle
- Multiplatform support – Windows, Linux, Mac, and Sun
- Supports multimedia USB keyboards for PC, Mac and Sun
- Auto PS/2 and USB interface detection
- Keyboard and mouse emulation (PS/2 and USB) for smooth switching and simultaneous booting of multiple computers even when the console focus is elsewhere
- Supports external USB mouse
- Superior video quality - supports resolutions up to 1280 x 1024 @ 75 Hz
- No software required - convenient computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menus
- Auto-senses station's position on daisy-chained installations; no need for manual dip switch setting; front panel led indicates station's position
- Port names automatically reconfigured when station sequence is changed
- Two level password security - only authorized users can view and control computers
- Supports one administrator and four user accounts with separate profiles
- Auto Scan mode enables continuous monitoring of user-selected computers
- Broadcast support - commands from the keyboard can be broadcast to all available computers on the installation
- Hot pluggable - add or remove computers without having to power down the switch
- Beeper on/off via hotkey and OSD
- Firmware upgrades to all the chained KVM switches at the same time via the daisy-chain cable
Package Contents
- 1x CL5708 LCD KVM Switch with standard Rack Mount Kit
- 2x Custom KVM Cable Sets
- 1x 5-in-1 USB / PS/2 Console Cable
- 1x Firmware Upgrade Cable
- 1x Power Cord (AC Power Models)
- 1x User Instructions
Specs
| Ports & interfaces |
| Number of computers controlled |
8 |
| Keyboard port type |
No |
| Mouse port type |
USB |
| USB 2.0 ports quantity |
2 |
| Console port |
RS-232 |
| DC-in jack |
Yes |
| Weight & dimensions |
| Width |
480 mm |
| Depth |
634 mm |
| Height |
44 mm |
| Weight |
14.4 kg |
| Operational conditions |
| Operating temperature (T-T) |
0 - 50 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
0 - 80% |
| Power |
| Input voltage |
100-240 V |
| AC input frequency |
50 - 60 Hz |
| Power consumption (typical) |
19.5 W |
| USB powered |
No |
| Display |
| Built-in display |
Yes |
| Display |
LCD |
| Packaging content |
| Cables included |
AC, KVM |
| Manual |
Yes |
| Other features |
| Connectivity technology |
Wired |
| Design |
| Rack mounting |
Yes |
| Product colour |
Black |
| Rack capacity |
1U |
| Housing material |
Metal, Plastic |
| LED indicators |
Yes |
| Certification |
CN ZL 200610081929.7 (19), CN ZL 200710181531.5, TW I339467, TW I340311 (19), US 6564275, US 7505255 (19), US 7585176 |
| Performance |
| Maximum resolution |
1280 x 1024 pixels |
| Packaging data |
| Package dimensions (WxDxH) |
654 x 327.7 x 136.5 mm |
| Package weight |
15.4 kg |
| Sustainability |
| Compliance certificates |
RoHS |
Features
ATEN CL5708N. Mouse port type: USB, Console port: RS-232. Maximum resolution: 1280 x 1024 pixels. Product colour: Black, Rack capacity: 1U, Housing material: Metal, Plastic. Display: LCD. Input voltage: 100-240 V, AC input frequency: 50 - 60 Hz, Power consumption (typical): 19.5 W
Product Description
Features
- Integrated KVM console with 17" LCD monitor in a Slideaway™ housing
- Available with or without Fingerprint Identification Reader**
- Space saving technology - up to two consoles (one bus) control up to 8 computers
- Daisy-chain up to 31 additional units - control up to 256 computers from a single console (With compatible KVM Switches: ACS1208A, ACS1216A, CS1708A,CS1716A)
- Dual Interface - supports computers and console with PS/2 or USB keyboards and mice
- LCD module USB port allows each computer to access USB peripherals*
- LCD module rotates up to 115 degrees for a more comfortable viewing angle
- Multiplatform support – Windows, Linux, Mac, and Sun
- Supports multimedia USB keyboards for PC, Mac and Sun
- Auto PS/2 and USB interface detection
- Keyboard and mouse emulation (PS/2 and USB) for smooth switching and simultaneous booting of multiple computers even when the console focus is elsewhere
- Supports external USB mouse
- Superior video quality - supports resolutions up to 1280 x 1024 @ 75 Hz
- No software required - convenient computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menus
- Auto-senses station's position on daisy-chained installations; no need for manual dip switch setting; front panel led indicates station's position
- Port names automatically reconfigured when station sequence is changed
- Two level password security - only authorized users can view and control computers
- Supports one administrator and four user accounts with separate profiles
- Auto Scan mode enables continuous monitoring of user-selected computers
- Broadcast support - commands from the keyboard can be broadcast to all available computers on the installation
- Hot pluggable - add or remove computers without having to power down the switch
- Beeper on/off via hotkey and OSD
- Firmware upgrades to all the chained KVM switches at the same time via the daisy-chain cable
Package Contents
- 1x CL5708 LCD KVM Switch with standard Rack Mount Kit
- 2x Custom KVM Cable Sets
- 1x 5-in-1 USB / PS/2 Console Cable
- 1x Firmware Upgrade Cable
- 1x Power Cord (AC Power Models)
- 1x User Instructions
