aten CL5716M-AT-EE CL5716M-ATA-EE - MW01
[cl5716m-ata-ee]

Name: aten CL5716M-AT-EE CL5716M-ATA-EE - MW01
Brand: Aten
SKU: cl5716m-ata-ee
Price: 1089.00 GBP
Availability: InStock

TEMPORARILY OUT OF STOCK

Part Number: cl5716m-ata-ee

Manufacturer: Aten

Condition: New

Short Description:

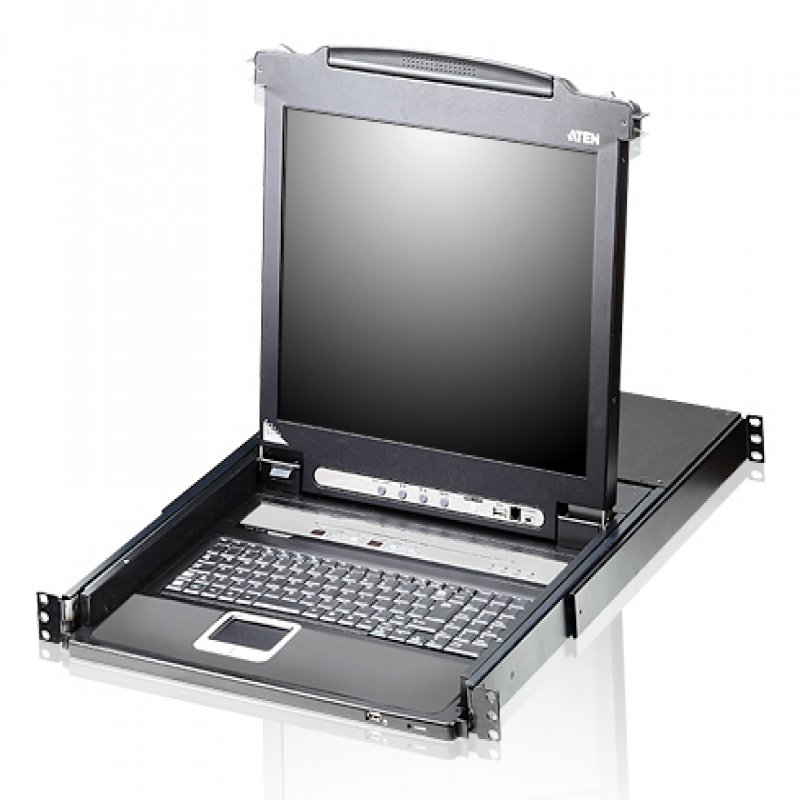

16-Port Slideaway LCD KVM Switch

aten CL5716M-AT-EE CL5716M-ATA-EE - MW01

£1,089.00
£1,306.80 - Inc VAT

Thank you for your request, PLEASE RE-TYPE THE PART NUMBER IN THE SEARCH BOX

Stock Status: 1x unit in stock

Reviews

Specs

Ports & interfaces
Number of computers controlled	512
Keyboard port type	USB, PS/2
Mouse port type	USB, PS/2
Video port type	VGA
Console ports	VGA (D-Sub)
VGA (D-Sub) ports quantity	16
Weight & dimensions
Width	480 mm
Depth	642.7 mm
Height	44 mm
Weight	13.6 kg
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Power
Power source	AC
Input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Input current	1 A
Power consumption (typical)	25.8 W
System requirements
Windows operating systems supported	Yes
Linux operating systems supported	Yes
Mac operating systems supported	Yes
Display
Built-in display	Yes
Display	LCD
Display diagonal	43.2 cm (17")
Packaging content
Cables included	AC, KVM
Quick installation guide	Yes
Manual	Yes
Rack mount kit	Yes
Design
Rack mounting	Yes
Product colour	Black
Rack capacity	1U
Housing material	Metal, Plastic
LED indicators	Yes
Push button	Yes
Hot keys	Yes
Performance
HD type	WUXGA
Maximum resolution	1920 x 1200 pixels
Video bandwidth	60 Hz
Scan interval	1,255 s
DDC2B support	Yes
Hot-Plug support	Yes
Hot-swap	Yes
Daisy chain	Yes
Firmware upgradeable	Yes
Sustainability
Compliance certificates	RoHS

Features

ATEN CL5716M-ATA-EE. Keyboard port type: USB, PS/2, Mouse port type: USB, PS/2, Video port type: VGA. HD type: WUXGA, Maximum resolution: 1920 x 1200 pixels, Video bandwidth: 60 Hz. Product colour: Black, Rack capacity: 1U, Housing material: Metal, Plastic. Display: LCD, Display diagonal: 43.2 cm (17"). Power source: AC, Input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz
