Stock Status: 1x unit in stock

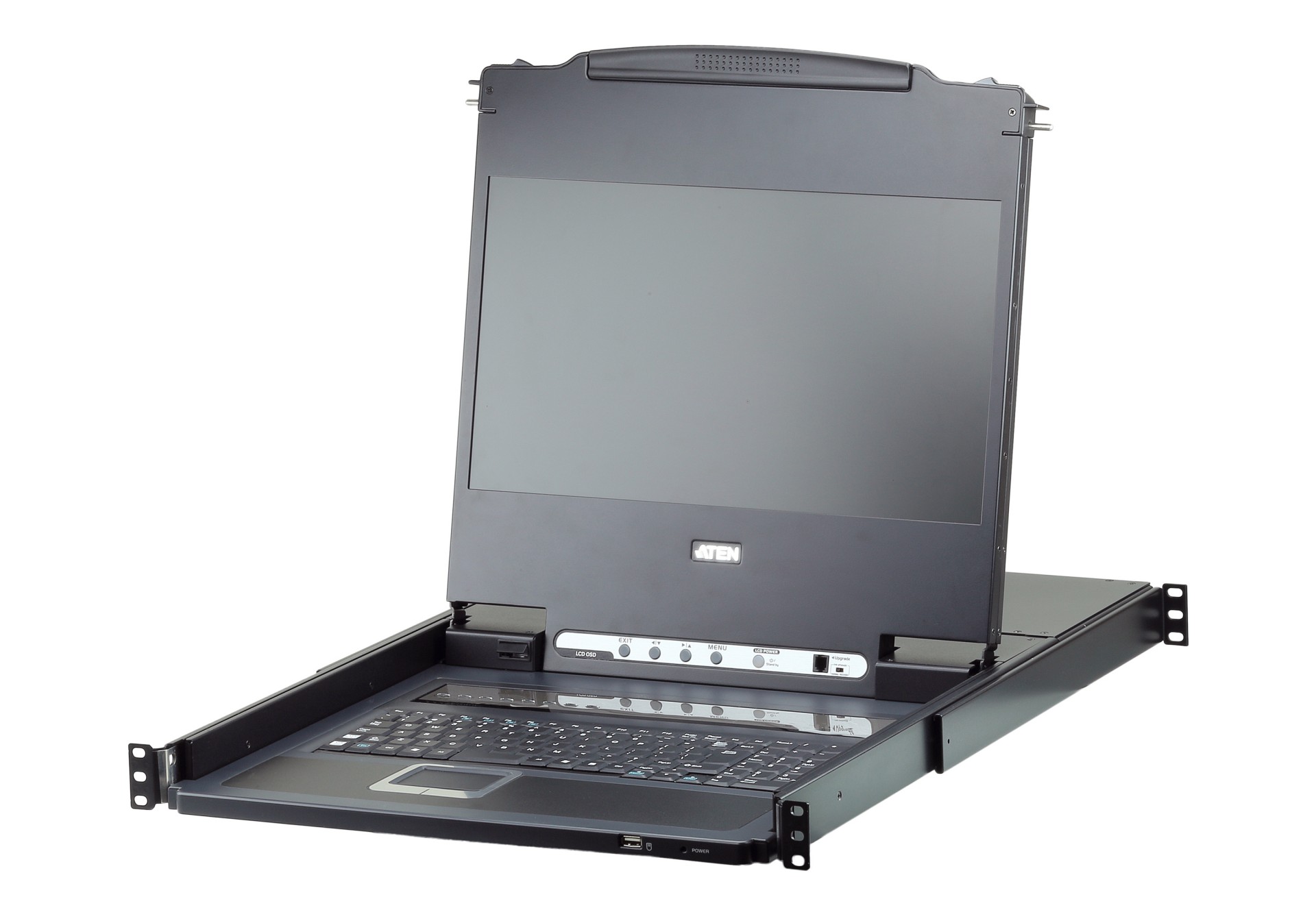

The CL6708MW brings additional versatility to ATEN’s line of LCD KVM Switches with its native DVI compatibility. Building on ATEN’s renowned, space-saving approach to KVM switches – which integrates an LCD panel, full keyboard, and touchpad into a streamlined, 1U housing – the CL6708MW is a highly-scalable LCD KVM switch which features the ability to control up to 64 computers by cascading 8 additional CS1768 8-port KVM switches.
Featuring an integrated 17.3" LED-backlit LCD panel capable of full HD 1080p video – greater clarity than typical analog interfaces – the CL6708MW incorporates the YUV video format for greater compatibility with high-definition signals (e.g. NVR sources). Similarly, the CL6708MW is High-Bandwidth Digital Content Protection (HDCP) compatible, making it well-suited for use with content-protected media in corporate, educational, and commercial settings.
To further enhance usability, ATEN’s LED illumination light is included to ensure keyboard and touchpad visibility in low-light conditions.
Note: Optional rack mount kits are available. For more information, refer to Compatible Accessories below.
Specs
| Weight & dimensions |
| Width |
689.2 mm |
| Height |
44 mm |
| Depth |
480 mm |
| Weight |
12.7 kg |
| Technical details |
| Rack capacity |
1U |
| Material |
Metal, Plastic |
| Product colour |
Black |
| Hot-Plug support |
Yes |
| Operating relative humidity (H-H) |
0 - 80% |
| Built-in KVM switch |
Yes |
| Maximum resolution |
1920 x 1200 pixels |
| Rack mounting |
Yes |
| Number of computers controlled |
64 |
| On/off switch |
Yes |
| LED indicators |
Yes |
| Push button |
Yes |
| Compliance certificates |
RoHS |
| Display |
| Display diagonal |
43.9 cm (17.3") |
| Display resolution |
1920 x 1080 pixels |
| Display |
LCD |
| Display brightness |
250 cd/m² |
| Contrast ratio (typical) |
800:1 |
| Viewing angle, horizontal |
170° |
| Viewing angle, vertical |
170° |
| On Screen Display (OSD) |
Yes |
| Pixel pitch |
0.1989 x 0.1989 mm |
| Aspect ratio |
16:9 |
| Display type |
TFT |
| Response time |
16 ms |
| Supported resolutions |
up to 1920 x 1200 @ 60 Hz (all resolution @ 60 Hz only); 1920 x 1080 @ 60 Hz, DDC2B |
| Power |
| Power consumption (typical) |
29.26 W |
| AC adapter input voltage |
100 - 240 V |
| AC adapter frequency |
50/60 Hz |
| Input current |
1 A |
| AC (power) in |
Yes |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Keyboard |
| Built-in touchpad |
Yes |
| Keyboard language |
US English |
| Keyboard layout |
QWERTY |
| Hot keys |
Yes |
| Ports & interfaces |
| 3.5 mm (1/8-inch) out |
Yes |
| 3.5 mm (1/8-inch) in |
Yes |
| DVI connector type |
DVI-I |
| DVI input ports |
1 |
| DVI output ports |
8 |
| Keyboard port type |
USB |
| Mouse port type |
USB |
| USB 2.0 Type-A ports quantity |
3 |
| USB 2.0 Type-B ports quantity |
8 |
| I/O ports |
1x RJ-11 |
| Packaging content |
| Cables included |
AC, KVM |
| Quick installation guide |
Yes |
| Manual |
Yes |
| AC adapter included |
Yes |
| Rack mount kit |
Yes |
| System requirements |
| Windows operating systems supported |
Yes |
| Mac operating systems supported |
Yes |
| Linux operating systems supported |
Yes |
| Other operating systems supported |
Yes |
Related Products
|
Aten Easy Installation Rack Mount Kit (Short) for LCD KVM 2K-0005 - eet01
|
|
Aten 1.8m USB HDMI to DVI-D KVM Cable 2L-7D02DH - eet01
|
|
Aten DVI Cable 1.8m DVI-D USB KVM Cable 1,8m, 1.8 2L-7D02U - eet01
|
|
ALTUSEN KE8952T Transmitter - KVM Extender - Transmitter - For P/N: CS1144DP4UN KE8952T - C2000
|
|
ALTUSEN KE8900SR Slim HDMI Single Display KVM Over IP Receiver - KVM Extender - Receiver - USB KE8900SR - C2000
|
|
ATEN CN9600 DVI KVM Over IP Switch - Remote Control Device - 1GbE CN9600 - C2000
|
|
ALTUSEN KE8900ST Slim HDMI Single Display KVM Over IP Transmitter - KVM / Audio / Serial / USB Extender - Transmitter - USB - For P/N: CS1144DP4UN KE8900ST - C2000
|
|
ALTUSEN KE8952R 4K HDMI Single Display KVM Over IP - KVM / Audio / Serial / USB Extender - Receiver - USB - For P/N: CS1144DP4UN KE8952R - C2000
|
|
ATEN 2L-7DX2U - Keyboard / Mouse / Video / Audio Cable - USB, HD-15 (VGA), Mini-phone Stereo 3.5 Mm (M) To Mini-phone Stereo 3.5 Mm, USB Type B, DVI-I (M) - 1.8 M 2L-7DX2U - C2000
|
|
ATEN 2X-010G - KVM Console Rack Mounting Kit - For ATEN CL1000, CL1008, CL1016, KL1100, Slideaway CL5708, CL5716 2X-010G - C2000
|
Features
ATEN 8-Port 17.3" DVI Full HD LCD KVM Switch (USB). Display diagonal: 43.9 cm (17.3"), Display resolution: 1920 x 1080 pixels, Display: LCD. DVI connector type: DVI-I, Keyboard port type: USB, Mouse port type: USB. Keyboard language: US English, Keyboard layout: QWERTY. Power consumption (typical): 29.26 W, AC adapter input voltage: 100 - 240 V, AC adapter frequency: 50/60 Hz. Width: 689.2 mm, Height: 44 mm, Depth: 480 mm
Product Description
The CL6708MW brings additional versatility to ATEN’s line of LCD KVM Switches with its native DVI compatibility. Building on ATEN’s renowned, space-saving approach to KVM switches – which integrates an LCD panel, full keyboard, and touchpad into a streamlined, 1U housing – the CL6708MW is a highly-scalable LCD KVM switch which features the ability to control up to 64 computers by cascading 8 additional CS1768 8-port KVM switches.
Featuring an integrated 17.3" LED-backlit LCD panel capable of full HD 1080p video – greater clarity than typical analog interfaces – the CL6708MW incorporates the YUV video format for greater compatibility with high-definition signals (e.g. NVR sources). Similarly, the CL6708MW is High-Bandwidth Digital Content Protection (HDCP) compatible, making it well-suited for use with content-protected media in corporate, educational, and commercial settings.
To further enhance usability, ATEN’s LED illumination light is included to ensure keyboard and touchpad visibility in low-light conditions.
Note: Optional rack mount kits are available. For more information, refer to Compatible Accessories below.
