Stock Status: 1x unit in stock

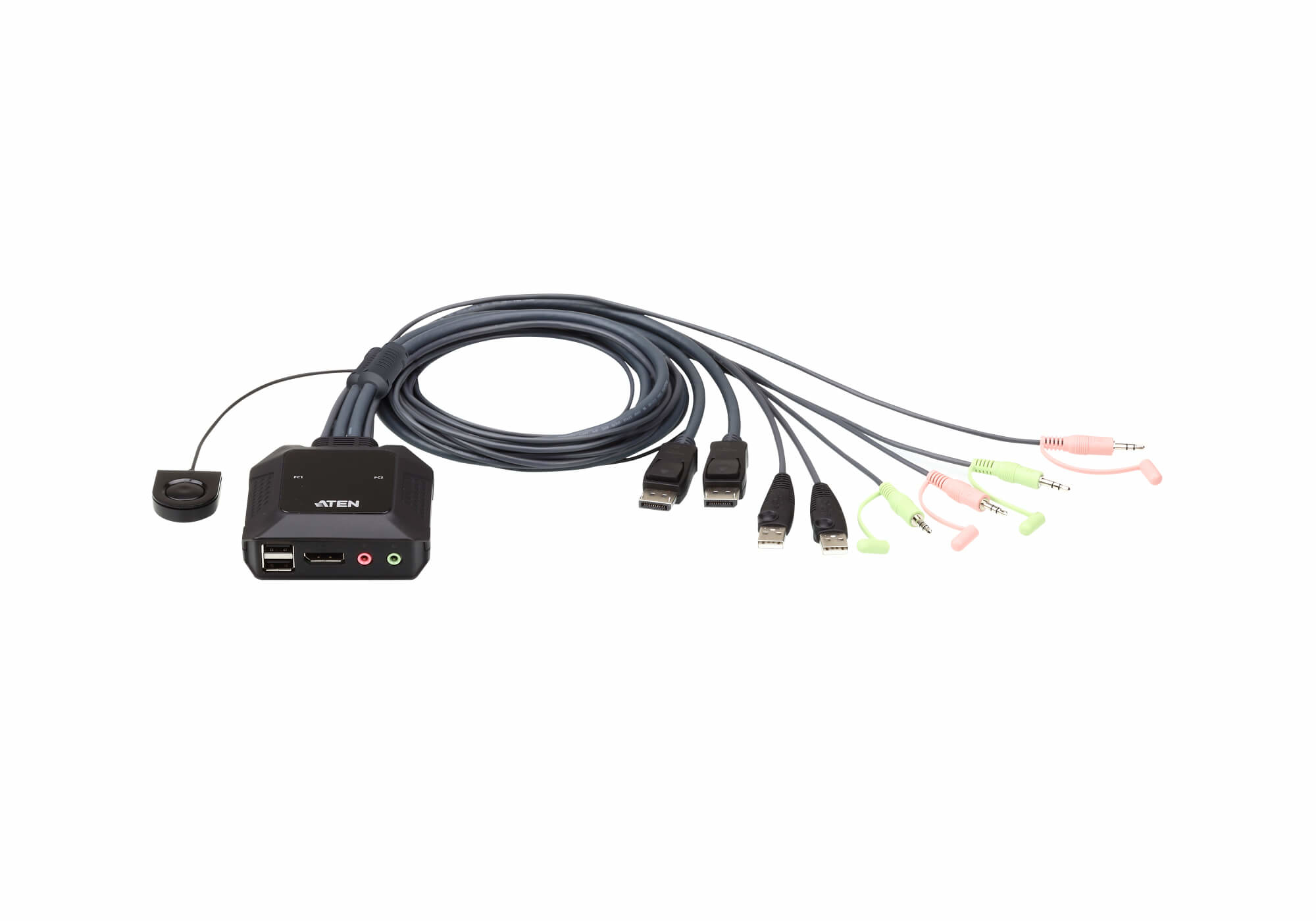

Having two computers running different projects at the same time can be a time saver, but having a KVM console set up to switch between computers via a pushbutton over one shared screen makes multitasking even more productive. Allow the CS22DP compact cable KVM switch to work its magic by de-cluttering your desktop workspace with a neat and space-efficient new look, and further enrich your operations with superb 4K audiovisual quality, making your desktop workflows more enjoyable.
Superior AV Performance in Vivid 4K
The CS22DP empowers your desktop operations with 4K audiovisual enhancement by presenting visual content in outstanding precision.
Smooth Cross-Platform Integration
The CS22DP enables the integration of different computer systems (Windows, Mac and Linux) that are accessible from one KVM console via one-button switching with the remote port selector.
Flexible USB Peripheral Sharing
The console USB ports can be used for plug-n-play connection to compatible USB 2.0 peripheral devices to fulfill data-intensive desktop work requirement.
Plug in. Power on
The CS22DP supports USB hot-plugging and is bus-powered by the connected KVM sources via USB ports.
Applications
The CS22DP Cable KVM Switch allows for an ideal desktop setup in office, media design work and entertainment.
Specs
| Ports & interfaces |
| Number of computers controlled |
2 |
| Keyboard port type |
USB |
| Mouse port type |
USB |
| Video port type |
DisplayPort |
| Console ports |
3.5mm headphone, 3.5mm mic, DisplayPort, USB A |
| DisplayPorts quantity |
2 |
| DisplayPort version |
1.1 |
| Console USB ports quantity |
2 |
| Console DisplayPorts ports quantity |
1 |
| USB 2.0 Type-A hub ports quantity |
2 |
| USB connector type |
Micro-USB B, USB Type-A |
| Audio connections |
Yes |
| Headphone outputs |
1 |
| Number of microphone inputs |
1 |
| Weight & dimensions |
| Width |
84.2 mm |
| Depth |
83.4 mm |
| Height |
30.4 mm |
| Weight |
350 g |
| Operational conditions |
| Operating temperature (T-T) |
0 - 50 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
0 - 80% |
| Networking |
| Ethernet LAN |
No |
| Power |
| Power source |
DC |
| Input voltage |
5 V |
| Power consumption (typical) |
1.38 W |
| System requirements |
| Windows operating systems supported |
Yes |
| Linux operating systems supported |
Yes |
| Mac operating systems supported |
Yes |
| Display |
| Built-in display |
No |
| Packaging content |
| Manual |
Yes |
| Design |
| Rack mounting |
No |
| Product colour |
Black |
| Housing material |
Plastic |
| Wired remote switch |
Yes |
| Cable length |
1.2 m |
| Remote switch cable length |
1.8 m |
| LED indicators |
Yes |
| Performance |
| HD type |
4K Ultra HD |
| Maximum resolution |
4096 x 2160 pixels |
| Video bandwidth |
30 Hz |
| HDCP |
Yes |
| Hot-Plug support |
Yes |
| Sustainability |
| Compliance certificates |
RoHS |
Features
ATEN CS22DP. Keyboard port type: USB, Mouse port type: USB, Video port type: DisplayPort. HD type: 4K Ultra HD, Maximum resolution: 4096 x 2160 pixels, Video bandwidth: 30 Hz. Product colour: Black, Housing material: Plastic, Cable length: 1.2 m. Power source: DC, Input voltage: 5 V, Power consumption (typical): 1.38 W. Compliance certificates: RoHS
Product Description
Having two computers running different projects at the same time can be a time saver, but having a KVM console set up to switch between computers via a pushbutton over one shared screen makes multitasking even more productive. Allow the CS22DP compact cable KVM switch to work its magic by de-cluttering your desktop workspace with a neat and space-efficient new look, and further enrich your operations with superb 4K audiovisual quality, making your desktop workflows more enjoyable.
Superior AV Performance in Vivid 4K
The CS22DP empowers your desktop operations with 4K audiovisual enhancement by presenting visual content in outstanding precision.
Smooth Cross-Platform Integration
The CS22DP enables the integration of different computer systems (Windows, Mac and Linux) that are accessible from one KVM console via one-button switching with the remote port selector.
Flexible USB Peripheral Sharing
The console USB ports can be used for plug-n-play connection to compatible USB 2.0 peripheral devices to fulfill data-intensive desktop work requirement.
Plug in. Power on
The CS22DP supports USB hot-plugging and is bus-powered by the connected KVM sources via USB ports.
Applications
The CS22DP Cable KVM Switch allows for an ideal desktop setup in office, media design work and entertainment.
