Stock Status: 1x unit in stock

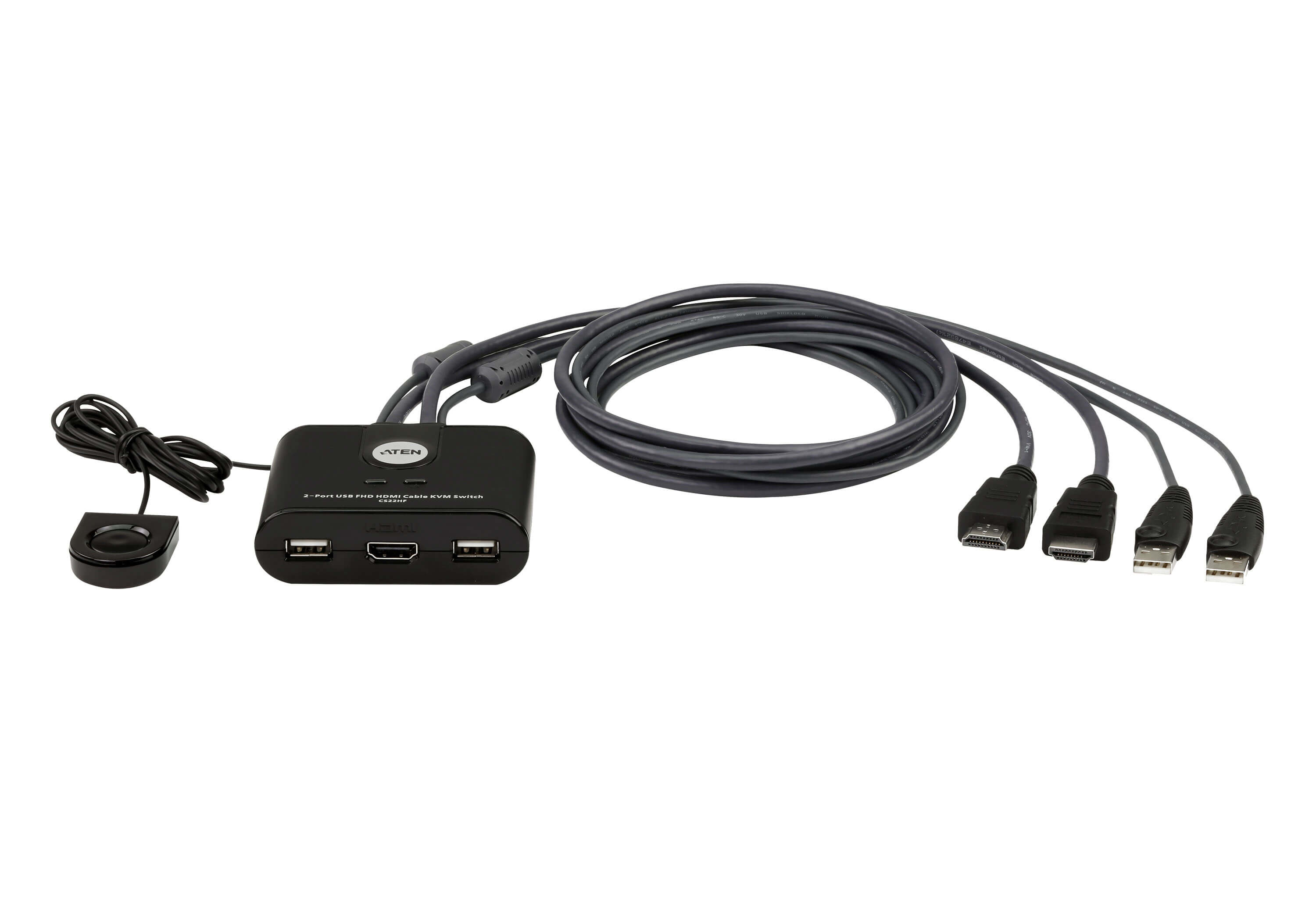

Switching between two computers can be as easy as the push of a button. Refresh your workspace with the CS22HF by setting up a desktop console with one set of keyboard/mouse/display for control over two computers via USB and HDMI connections, and you’re all set. The compact CS22HF helps create an organized desktop with reduced cable clutter, and brings in FHD viewing quality to lift up work performance.
Superior FHD Visual Clarity
The CS22HF empowers your desktop operations with remarkable FHD video quality to expedite visual-intensive workflow.
Space Efficient Desktop Setup
The compact, easy-hook design allows expanding functionality while keeping your desktop in an orderly fashion for improved productivity.
Smooth Cross-Platform Integration
The CS22HF enables the integration of different computer systems (Windows, Mac and Linux) that are accessible over one KVM console.
Flexible USB Peripheral Sharing
The console USB ports can be used for plug-n-play connection to compatible USB 2.0 peripheral devices to fulfill data-intensive desktop work requirements.
Plug in. Power on
The CS22HF supports USB hot-plugging and is bus-powered by the connected KVM sources via USB ports.
Applications
The CS22HF Cable KVM Switch allows for an ideal desktop setup in working scenarios including office, media design, network separation and work from home.
Specs
| Ports & interfaces |
| Number of computers controlled |
2 |
| Keyboard port type |
USB |
| Mouse port type |
USB |
| Video port type |
HDMI |
| Console ports |
HDMI, USB A |
| HDMI ports quantity |
2 |
| Console USB ports quantity |
2 |
| Console HDMI ports quantity |
1 |
| USB 2.0 Type-A hub ports quantity |
2 |
| USB connector type |
USB Type-A |
| DC-in jack |
Yes |
| Weight & dimensions |
| Width |
66.5 mm |
| Depth |
82.4 mm |
| Height |
25.2 mm |
| Weight |
260 g |
| Operational conditions |
| Operating temperature (T-T) |
0 - 50 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
0 - 80% |
| Storage relative humidity (H-H) |
0 - 80% |
| Power |
| Input voltage |
5 V |
| Power consumption (typical) |
1.5 W |
| System requirements |
| Windows operating systems supported |
Yes |
| Linux operating systems supported |
Yes |
| Mac operating systems supported |
Yes |
| Display |
| Built-in display |
No |
| Design |
| Rack mounting |
No |
| Product colour |
Black |
| Housing material |
Plastic |
| Cable length |
1.2 m |
| Remote switch cable length |
1.8 m |
| LED indicators |
Yes |
| Performance |
| HD type |
Full HD |
| Maximum resolution |
1920 x 1200 pixels |
| Video bandwidth |
60 Hz |
| HDCP |
Yes |
Features
ATEN CS22HF. Keyboard port type: USB, Mouse port type: USB, Video port type: HDMI. HD type: Full HD, Maximum resolution: 1920 x 1200 pixels, Video bandwidth: 60 Hz. Product colour: Black, Housing material: Plastic, Cable length: 1.2 m. Input voltage: 5 V, Power consumption (typical): 1.5 W. Width: 66.5 mm, Depth: 82.4 mm, Height: 25.2 mm
Product Description
Switching between two computers can be as easy as the push of a button. Refresh your workspace with the CS22HF by setting up a desktop console with one set of keyboard/mouse/display for control over two computers via USB and HDMI connections, and you’re all set. The compact CS22HF helps create an organized desktop with reduced cable clutter, and brings in FHD viewing quality to lift up work performance.
Superior FHD Visual Clarity
The CS22HF empowers your desktop operations with remarkable FHD video quality to expedite visual-intensive workflow.
Space Efficient Desktop Setup
The compact, easy-hook design allows expanding functionality while keeping your desktop in an orderly fashion for improved productivity.
Smooth Cross-Platform Integration
The CS22HF enables the integration of different computer systems (Windows, Mac and Linux) that are accessible over one KVM console.
Flexible USB Peripheral Sharing
The console USB ports can be used for plug-n-play connection to compatible USB 2.0 peripheral devices to fulfill data-intensive desktop work requirements.
Plug in. Power on
The CS22HF supports USB hot-plugging and is bus-powered by the connected KVM sources via USB ports.
Applications
The CS22HF Cable KVM Switch allows for an ideal desktop setup in working scenarios including office, media design, network separation and work from home.
