Stock Status: 1x unit in stock

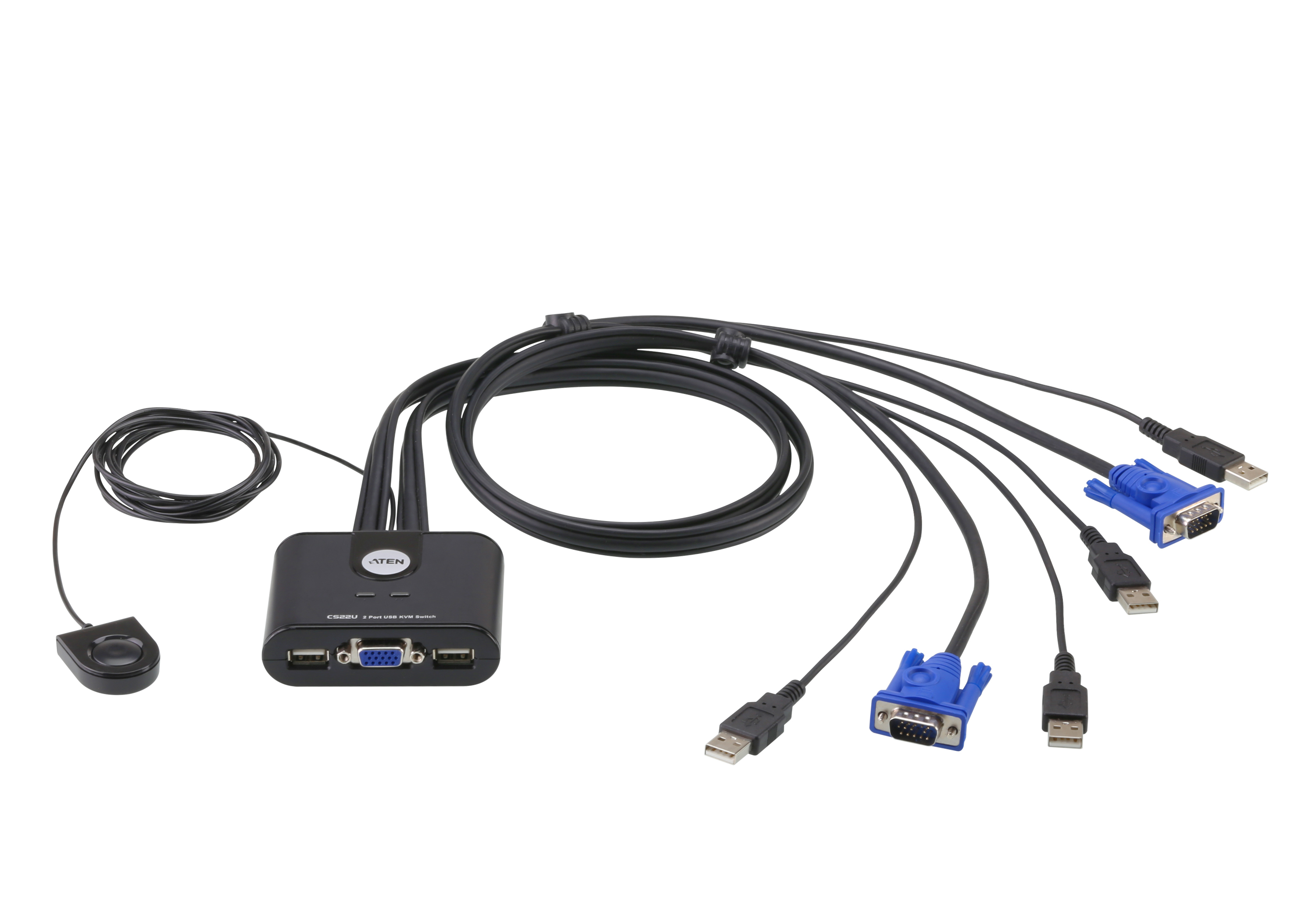

The compact CS22U allows quick switching between 2 VGA-interfaced PCs via one KVM console and flexible media sharing via the console USB ports, which helps to expand desktop workspace while keeping it tidy and organized for improved productivity.
Smooth Cross-Platform Integration
The CS22U enables the integration of different computer systems (Windows, Mac, Linux and Sun) that are accessible from one KVM console.
Flexible USB Peripheral Sharing
The console USB ports can be used for plug-n-play connection to compatible USB 2.0 peripheral devices to fulfill data-intensive desktop work requirements.
Plug in. Power on
The CS22U supports USB hot-plugging and is bus-powered by the connected KVM sources via USB ports.
Specs
| Ports & interfaces |
| Number of computers controlled |
2 |
| Keyboard port type |
USB |
| Mouse port type |
USB |
| Video port type |
VGA |
| Console ports |
USB A, VGA (D-Sub) |
| VGA (D-Sub) ports quantity |
2 |
| USB hub |
Yes |
| USB 2.0 Type-A hub ports quantity |
4 |
| USB connector type |
USB Type-A |
| Weight & dimensions |
| Width |
82.4 mm |
| Depth |
70.1 mm |
| Height |
24.6 mm |
| Weight |
300 g |
| Operational conditions |
| Operating temperature (T-T) |
0 - 50 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
0 - 80% |
| Storage relative humidity (H-H) |
0 - 80% |
| Power |
| Power source |
DC |
| Input voltage |
5 V |
| Power consumption (typical) |
0.14 W |
| Display |
| Built-in display |
No |
| Packaging content |
| Quick installation guide |
Yes |
| Design |
| Rack mounting |
No |
| Product colour |
Black |
| Housing material |
Plastic |
| Cable length |
0.9 m |
| Remote switch cable length |
1.8 m |
| LED indicators |
Yes |
| Performance |
| HD type |
QXGA |
| Maximum resolution |
2048 x 1536 pixels |
| DDC2B support |
Yes |
Features
ATEN CS22U. Keyboard port type: USB, Mouse port type: USB, Video port type: VGA. HD type: QXGA, Maximum resolution: 2048 x 1536 pixels. Product colour: Black, Housing material: Plastic, Cable length: 0.9 m. Power source: DC, Input voltage: 5 V, Power consumption (typical): 0.14 W. Width: 82.4 mm, Depth: 70.1 mm, Height: 24.6 mm
Product Description
The compact CS22U allows quick switching between 2 VGA-interfaced PCs via one KVM console and flexible media sharing via the console USB ports, which helps to expand desktop workspace while keeping it tidy and organized for improved productivity.
Smooth Cross-Platform Integration
The CS22U enables the integration of different computer systems (Windows, Mac, Linux and Sun) that are accessible from one KVM console.
Flexible USB Peripheral Sharing
The console USB ports can be used for plug-n-play connection to compatible USB 2.0 peripheral devices to fulfill data-intensive desktop work requirements.
Plug in. Power on
The CS22U supports USB hot-plugging and is bus-powered by the connected KVM sources via USB ports.
