Stock Status: 1x unit in stock

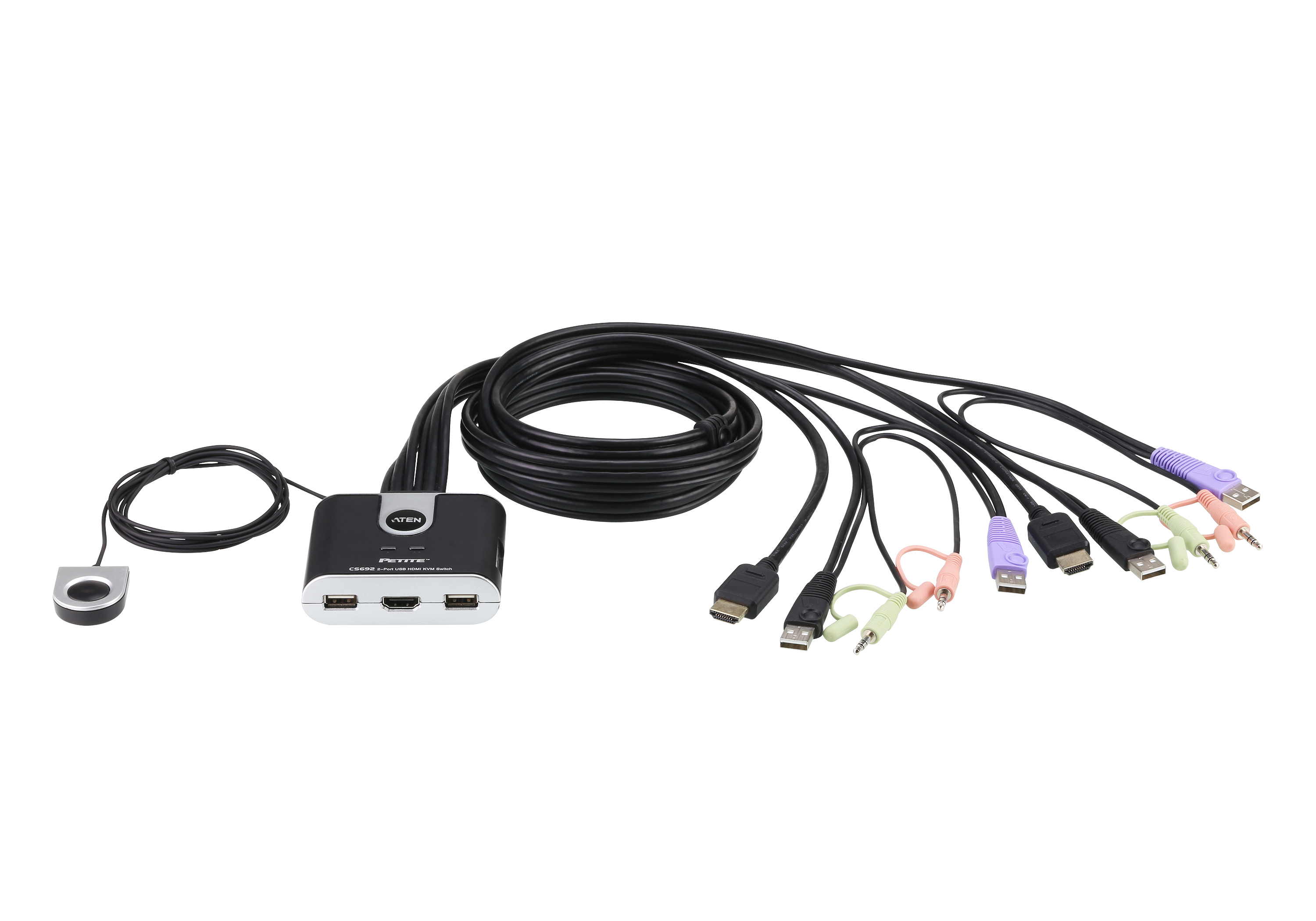

The CS692 2-Port USB HDMI/Audio Cable KVM Switch links two HDMI-enabled PCs or devices to a single USB keyboard, USB mouse, and HD display console. The CS692 Switch takes a giant step forward from prior cable KVM models in the Petite series, by offering full HDMI functionality, USB 2.0 peripheral sharing (via a USB hub attached to the USB mouse port), and a firmware upgrade function that allows you to keep up with latest available versions.
Featuring an unbeatable combination of HDMI functionality, USB 2.0 peripheral sharing convenience, gaming keyboard support, and enhanced user-friendly operations, the CS692 allows users to keep up with the latest innovations in desktop multimedia applications.
Specs
| Ports & interfaces |
| Number of computers controlled |
2 |
| Keyboard port type |
USB |
| Mouse port type |
USB |
| Video port type |
HDMI |
| Console ports |
3.5mm headphone, 3.5mm mic, HDMI, USB A |
| HDMI ports quantity |
2 |
| Console USB ports quantity |
2 |
| Console HDMI ports quantity |
1 |
| USB 2.0 Type-A hub ports quantity |
4 |
| USB connector type |
USB Type-A |
| Audio connections |
Yes |
| Headphone outputs |
3 |
| Number of microphone inputs |
3 |
| Weight & dimensions |
| Width |
82.4 mm |
| Depth |
66.5 mm |
| Height |
25.2 mm |
| Weight |
480 g |
| Operational conditions |
| Operating temperature (T-T) |
0 - 50 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
0 - 80% |
| Storage relative humidity (H-H) |
0 - 80% |
| Power |
| Power source |
DC |
| Input voltage |
5 V |
| Power consumption (typical) |
0.72 W |
| Display |
| Built-in display |
No |
| Packaging content |
| Quick installation guide |
Yes |
| Manual |
Yes |
| Design |
| Rack mounting |
No |
| Product colour |
Black |
| Housing material |
Plastic |
| Cable length |
1.2 m |
| Remote switch cable length |
1.8 m |
| LED indicators |
Yes |
| Push button |
Yes |
| Hot keys |
Yes |
| Performance |
| HD type |
WUXGA |
| Maximum resolution |
1920 x 1200 pixels |
| Video bandwidth |
60 Hz |
| Scan interval |
3,5,10,20 s |
Features
ATEN CS692. Keyboard port type: USB, Mouse port type: USB, Video port type: HDMI. HD type: WUXGA, Maximum resolution: 1920 x 1200 pixels, Video bandwidth: 60 Hz. Product colour: Black, Housing material: Plastic, Cable length: 1.2 m. Power source: DC, Input voltage: 5 V, Power consumption (typical): 0.72 W. Width: 82.4 mm, Depth: 66.5 mm, Height: 25.2 mm
Product Description
The CS692 2-Port USB HDMI/Audio Cable KVM Switch links two HDMI-enabled PCs or devices to a single USB keyboard, USB mouse, and HD display console. The CS692 Switch takes a giant step forward from prior cable KVM models in the Petite series, by offering full HDMI functionality, USB 2.0 peripheral sharing (via a USB hub attached to the USB mouse port), and a firmware upgrade function that allows you to keep up with latest available versions.
Featuring an unbeatable combination of HDMI functionality, USB 2.0 peripheral sharing convenience, gaming keyboard support, and enhanced user-friendly operations, the CS692 allows users to keep up with the latest innovations in desktop multimedia applications.
