Stock Status: 1x unit in stock

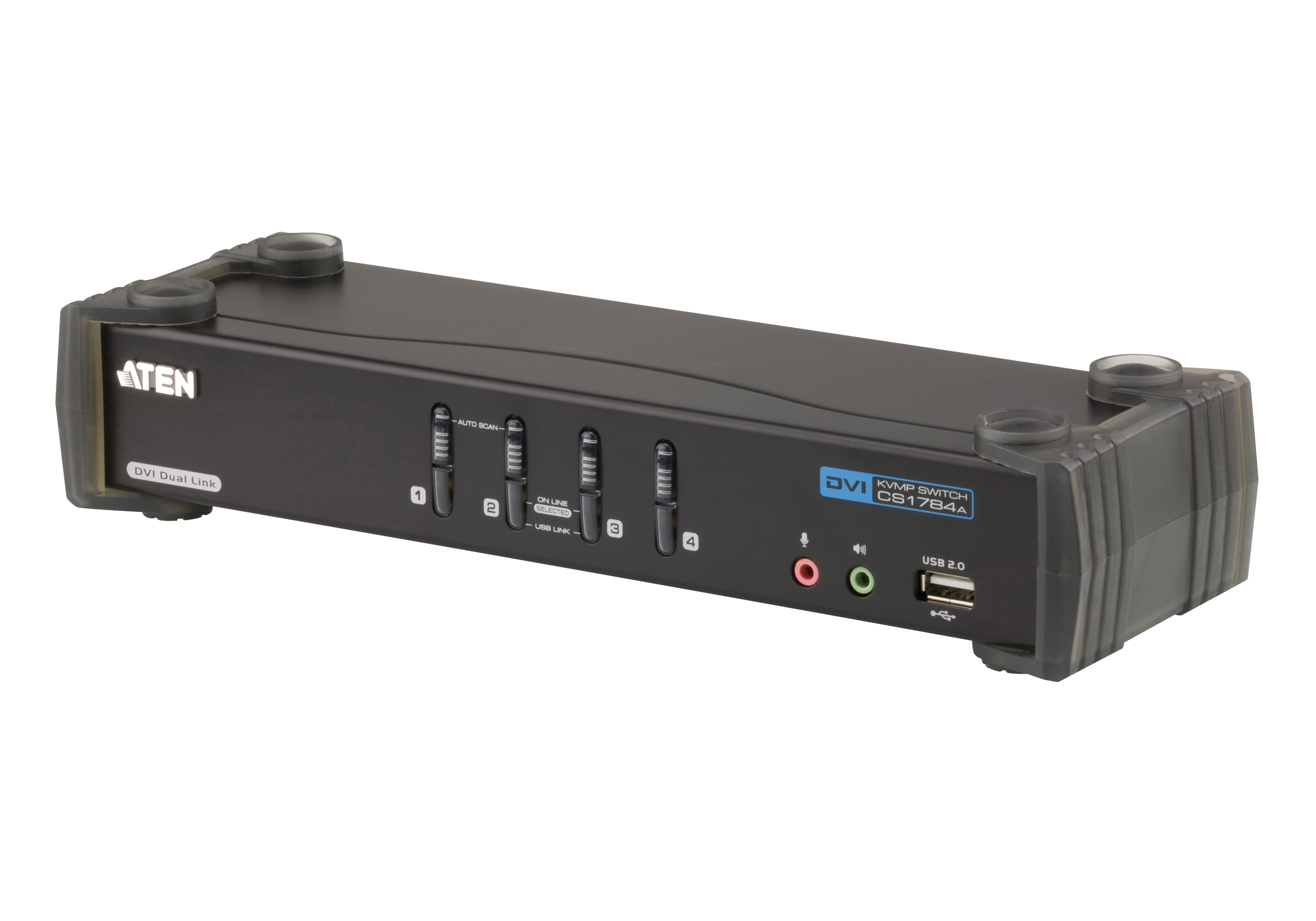

The CS1784A USB DVI Dual Link KVMP™ Switch charts a revolutionary direction in KVM switch functionality. It combines the capabilities of a 4-port KVM switch with a 2-Port USB hub, while providing a DVI monitor interface and audio support. Moreover it carries advanced features, such as nVidia 3D Vision ready 120Hz 3D display support, gaming keyboard compatibility and port selection/switching using a mouse, aimed at giving you flexibility, convenience and enjoyment.
Specs
| Ports & interfaces |
| Number of computers controlled |
4 |
| Keyboard port type |
USB |
| Mouse port type |
USB |
| Video port type |
DVI-I |
| Console ports |
3.5mm headphone, 3.5mm mic, DVI-I, USB A |
| DVI-I ports quantity |
5 |
| Console USB ports quantity |
3 |
| USB 2.0 ports quantity |
2 |
| USB connector type |
USB Type-A |
| Audio connections |
Yes |
| Headphone outputs |
4 |
| Number of microphone inputs |
2 |
| DC-in jack |
Yes |
| Weight & dimensions |
| Width |
270 mm |
| Depth |
88 mm |
| Height |
55.5 mm |
| Weight |
930 g |
| Operational conditions |
| Operating temperature (T-T) |
0 - 50 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
0 - 80% |
| Power |
| Power source |
DC |
| Input voltage |
5.3 V |
| Power consumption (typical) |
10 W |
| System requirements |
| Windows operating systems supported |
Yes |
| Linux operating systems supported |
Yes |
| Mac operating systems supported |
Yes |
| Other operating systems supported |
Yes |
| Display |
| Built-in display |
No |
| Packaging content |
| Cables included |
KVM |
| Manual |
Yes |
| AC adapter included |
Yes |
| Design |
| Rack mounting |
No |
| Product colour |
Black |
| Housing material |
Metal |
| Push button |
Yes |
| Hot keys |
Yes |
| Performance |
| Maximum resolution |
2560 x 1600 pixels |
| Scan interval |
1,99 s |
| HDCP |
Yes |
| Power on detection |
Yes |
| Firmware upgradeable |
Yes |
| Logistics data |
| Harmonized System (HS) code |
85176200 |
| Sustainability |
| Compliance certificates |
RoHS |
Features
ATEN CS1784A. Keyboard port type: USB, Mouse port type: USB, Video port type: DVI-I. Maximum resolution: 2560 x 1600 pixels, Scan interval: 1,99 s. Product colour: Black, Housing material: Metal. Power source: DC, Input voltage: 5.3 V, Power consumption (typical): 10 W. Compliance certificates: RoHS
Product Description
The CS1784A USB DVI Dual Link KVMP™ Switch charts a revolutionary direction in KVM switch functionality. It combines the capabilities of a 4-port KVM switch with a 2-Port USB hub, while providing a DVI monitor interface and audio support. Moreover it carries advanced features, such as nVidia 3D Vision ready 120Hz 3D display support, gaming keyboard compatibility and port selection/switching using a mouse, aimed at giving you flexibility, convenience and enjoyment.
