Stock Status: 1x unit in stock

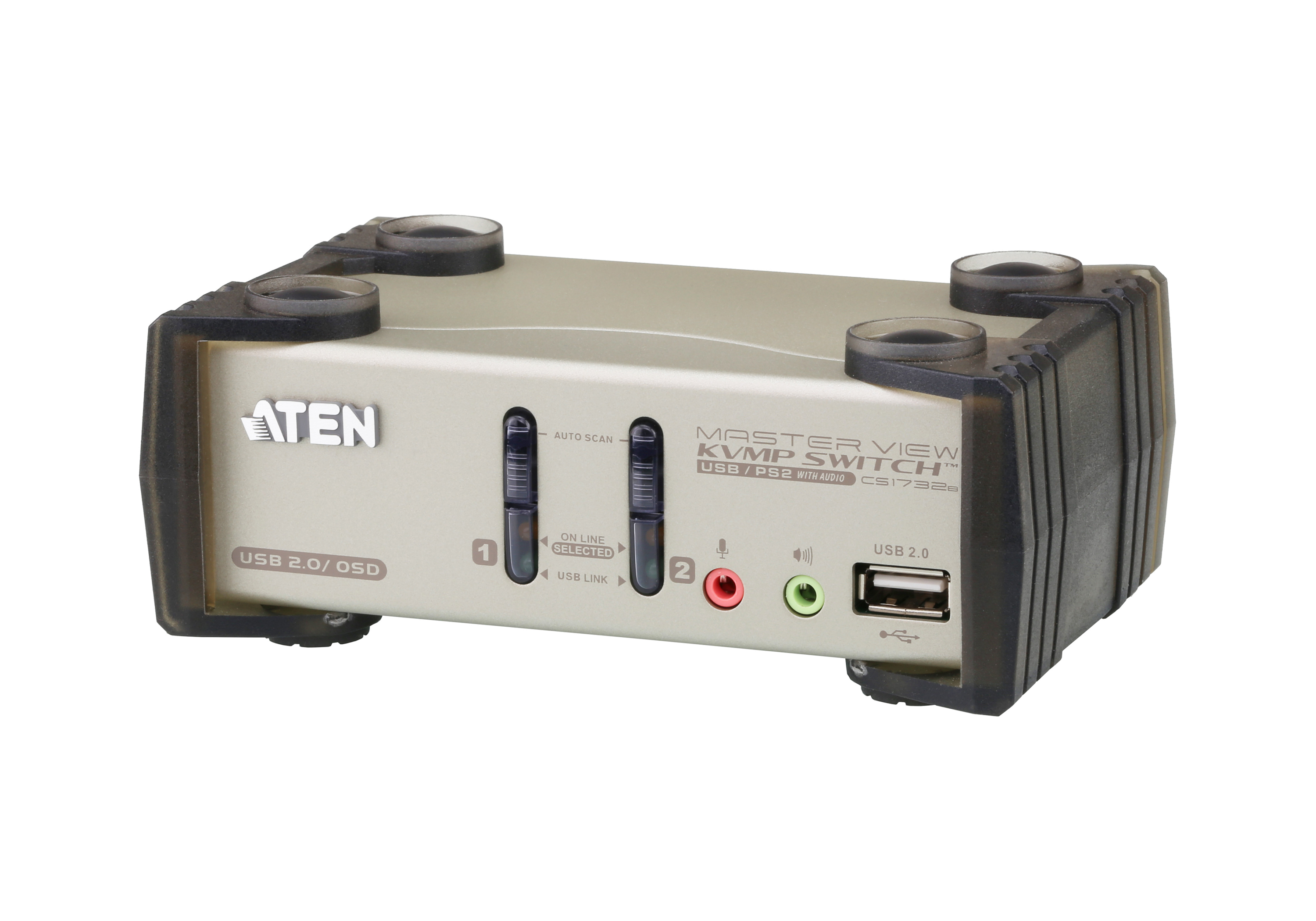

The CS1732B is 2-port KVM switch combined with a 2-port USB 2.0 hub. As a KVM switch, it allows users to access two computers from a single keyboard, monitor, and mouse console. There are four methods to obtain instant access to any computer in your installation: Pushbuttons, Hotkeys, OSD, and mouse.
Specs
| Ports & interfaces |
| Number of computers controlled |
2 |
| Keyboard port type |
USB, PS/2 |
| Mouse port type |
USB, PS/2 |
| Video port type |
VGA |
| Console ports |
3.5mm headphone, 3.5mm mic |
| USB hub |
Yes |
| USB 2.0 ports quantity |
2 |
| USB version |
2.0 |
| Audio connections |
Yes |
| Headphone outputs |
4 |
| Weight & dimensions |
| Width |
140 mm |
| Depth |
88 mm |
| Height |
55.5 mm |
| Weight |
550 g |
| Operational conditions |
| Operating temperature (T-T) |
0 - 50 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
0 - 80% |
| Power |
| Power source |
DC |
| Input voltage |
5.3 V |
| Power consumption (typical) |
2.5 W |
| System requirements |
| Windows operating systems supported |
Yes |
| Mac operating systems supported |
Yes |
| Display |
| On Screen Display (OSD) |
Yes |
| Packaging content |
| Cables included |
KVM |
| Quick installation guide |
Yes |
| Manual |
Yes |
| Design |
| Housing material |
Metal |
| Cable length |
1.2 m |
| LED indicators |
Network, USB |
| Push button |
Yes |
| Hot keys |
Yes |
| Performance |
| Maximum resolution |
2048 x 1536 pixels |
| Video bandwidth |
60 Hz |
| Scan interval |
1,255 s |
| DDC2B support |
Yes |
| Firmware upgradeable |
Yes |
Features
ATEN CS1732B. Keyboard port type: USB, PS/2, Mouse port type: USB, PS/2, Video port type: VGA. Maximum resolution: 2048 x 1536 pixels, Video bandwidth: 60 Hz, Scan interval: 1,255 s. Housing material: Metal, Cable length: 1.2 m, LED indicators: Network, USB. Power source: DC, Input voltage: 5.3 V, Power consumption (typical): 2.5 W. Width: 140 mm, Depth: 88 mm, Height: 55.5 mm
Product Description
The CS1732B is 2-port KVM switch combined with a 2-port USB 2.0 hub. As a KVM switch, it allows users to access two computers from a single keyboard, monitor, and mouse console. There are four methods to obtain instant access to any computer in your installation: Pushbuttons, Hotkeys, OSD, and mouse.
