Stock Status: 1x unit in stock
Power advanced multi-screen workflows with an 8K dual-display KVM switch for creative, financial, and professional applications.
4 DisplayPort PCs, 2 DisplayPort Displays, One KVM Console

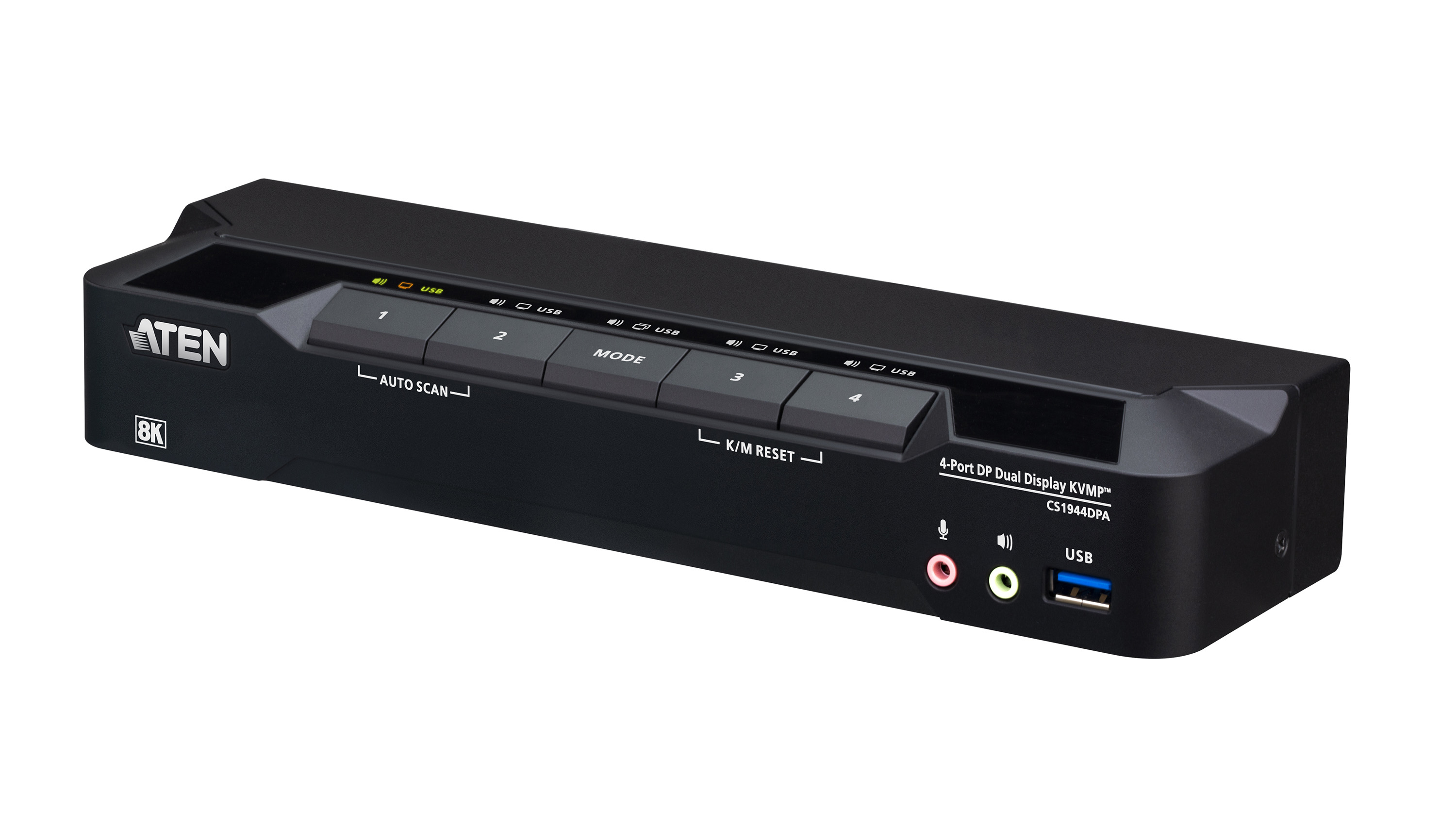

The CS1944DPA is a 4-port KVM switch that empowers you to switch between projects with ease on a 4-PC, dual-display desktop. With a single keyboard and mouse, you can maintain a tidy workspace while simplifying control of four DisplayPort computers across two DisplayPort displays. Whether you're a professional seeking a productivity booster for your daily office routines, a content creator, a hybrid worker, or someone looking for an immersive entertainment setup, the CS1944DPA is definitely your key to a workspace transformation.
Level up your multitasking productivity at this dual-display KVM console with:
? A pristine visual experience up to 4K@240 and 8K@60
? Ultra-wide 21:9 and 32:9 aspect ratios for an expansive viewing experience
? A 2-port USB 3.0 hub for peripheral sharing, supporting up to 5 Gbps data transfer
? Multi-system compatibility with Windows, macOS, and Linux
Specs
| Ports & interfaces |
| Number of computers controlled |
4 |
| Keyboard port type |
USB |
| Mouse port type |
USB |
| Video port type |
DisplayPort |
| Console ports |
3.5mm headphone, DisplayPort, USB A |
| DisplayPorts quantity |
8 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity |
4 |
| Console USB ports quantity |
2 |
| Console DisplayPorts ports quantity |
1 |
| Console RJ-45 ports quantity |
1 |
| USB hub |
Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity |
4 |
| USB connector type |
USB Type-A, USB Type-B |
| Headphone outputs |
6 |
| Number of microphone inputs |
6 |
| DC-in jack |
Yes |
| Weight & dimensions |
| Width |
71.8 mm |
| Depth |
260 mm |
| Height |
43 mm |
| Weight |
620 g |
| Operational conditions |
| Operating temperature (T-T) |
0 - 50 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
0 - 80% |
| Storage relative humidity (H-H) |
0 - 80% |
| Power |
| Power source |
DC |
| Input voltage |
12 V |
| Power consumption (typical) |
3.18 W |
| Display |
| Built-in display |
No |
| Packaging content |
| Quick installation guide |
Yes |
| Design |
| Rack mounting |
No |
| Product colour |
Black |
| LED indicators |
Yes |
| Push button |
Yes |
| Performance |
| HD type |
8K Ultra HD |
| Maximum resolution |
7680 x 4320 pixels |
| Video bandwidth |
60 Hz |
| Scan interval |
1,99 s |
| Maximum refresh rate |
240 Hz |
| Logistics data |
| Harmonized System (HS) code |
84718000 |
| Country of origin |
Taiwan |
Features
ATEN 4-Port USB 3.0 8K DisplayPort Dual-Display KVMP™ Switch (Cables included). Keyboard port type: USB, Mouse port type: USB, Video port type: DisplayPort. HD type: 8K Ultra HD, Maximum resolution: 7680 x 4320 pixels, Video bandwidth: 60 Hz. Product colour: Black. Power source: DC, Input voltage: 12 V, Power consumption (typical): 3.18 W. Width: 71.8 mm, Depth: 260 mm, Height: 43 mm
Product Description
Power advanced multi-screen workflows with an 8K dual-display KVM switch for creative, financial, and professional applications.
4 DisplayPort PCs, 2 DisplayPort Displays, One KVM Console
The CS1944DPA is a 4-port KVM switch that empowers you to switch between projects with ease on a 4-PC, dual-display desktop. With a single keyboard and mouse, you can maintain a tidy workspace while simplifying control of four DisplayPort computers across two DisplayPort displays. Whether you're a professional seeking a productivity booster for your daily office routines, a content creator, a hybrid worker, or someone looking for an immersive entertainment setup, the CS1944DPA is definitely your key to a workspace transformation.
Level up your multitasking productivity at this dual-display KVM console with:
? A pristine visual experience up to 4K@240 and 8K@60
? Ultra-wide 21:9 and 32:9 aspect ratios for an expansive viewing experience
? A 2-port USB 3.0 hub for peripheral sharing, supporting up to 5 Gbps data transfer
? Multi-system compatibility with Windows, macOS, and Linux
