Stock Status: 1x unit in stock

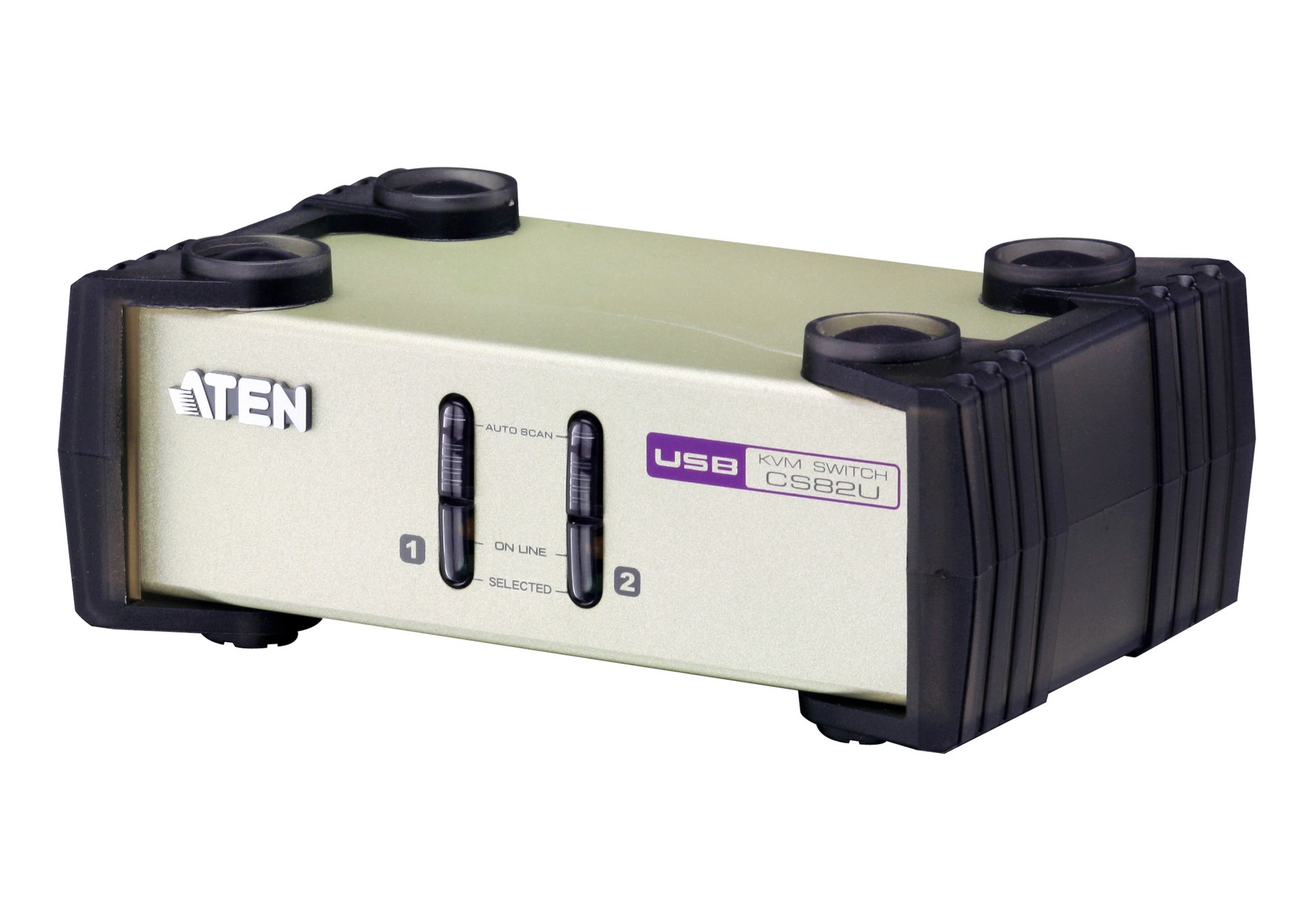

The CS82U PS/2-USB KVM Switch is a desktop control unit that allows users to access two computers from a single KVM console (PS/2 or USB keyboard and mouse, and VGA monitor). In addition, CS82U comes with ATEN's new Video DynaSync™ technology, which eliminates boot-up display problems and optimizes resolution.
Setup is fast and easy; simply plug cables into their appropriate ports. There is no software to configure, no installation routines, and no incompatibility problems. Since the CS82U intercepts keyboard input directly, it will work on multiple computing platforms.
Specs
| Ports & interfaces |
| Number of computers controlled |
2 |
| Keyboard port type |
USB, PS/2 |
| Mouse port type |
USB, PS/2 |
| Video port type |
VGA |
| Console ports |
PS/2, USB A, VGA (D-Sub) |
| VGA (D-Sub) ports quantity |
1 |
| Console USB ports quantity |
2 |
| USB 2.0 Type-A hub ports quantity |
2 |
| USB connector type |
USB Type-A |
| PS/2 ports quantity |
2 |
| DC-in jack |
Yes |
| Weight & dimensions |
| Width |
88 mm |
| Depth |
140 mm |
| Height |
55.5 mm |
| Weight |
540 g |
| Operational conditions |
| Operating temperature (T-T) |
0 - 50 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
0 - 80% |
| Storage relative humidity (H-H) |
0 - 80% |
| Power |
| Power source |
DC |
| Input voltage |
5 V |
| Power consumption (typical) |
1.1 W |
| Display |
| Built-in display |
No |
| Packaging content |
| Quick installation guide |
Yes |
| Manual |
Yes |
| Other features |
| I/O ports |
2x SPHD-18 |
| Design |
| Rack mounting |
No |
| Product colour |
Black, Light grey |
| Housing material |
Metal |
| LED indicators |
Yes |
| Push button |
Yes |
| Hot keys |
Yes |
| Performance |
| HD type |
QXGA |
| Maximum resolution |
2048 x 1536 pixels |
| Video bandwidth |
60 Hz |
| Scan interval |
3,5,10,20 s |
| DDC2B support |
Yes |
Features
ATEN CS82U. Keyboard port type: USB, PS/2, Mouse port type: USB, PS/2, Video port type: VGA. HD type: QXGA, Maximum resolution: 2048 x 1536 pixels, Video bandwidth: 60 Hz. Product colour: Black, Light grey, Housing material: Metal. Power source: DC, Input voltage: 5 V, Power consumption (typical): 1.1 W. Width: 88 mm, Depth: 140 mm, Height: 55.5 mm
Product Description
The CS82U PS/2-USB KVM Switch is a desktop control unit that allows users to access two computers from a single KVM console (PS/2 or USB keyboard and mouse, and VGA monitor). In addition, CS82U comes with ATEN's new Video DynaSync™ technology, which eliminates boot-up display problems and optimizes resolution.
Setup is fast and easy; simply plug cables into their appropriate ports. There is no software to configure, no installation routines, and no incompatibility problems. Since the CS82U intercepts keyboard input directly, it will work on multiple computing platforms.
