Stock Status: 1x unit in stock

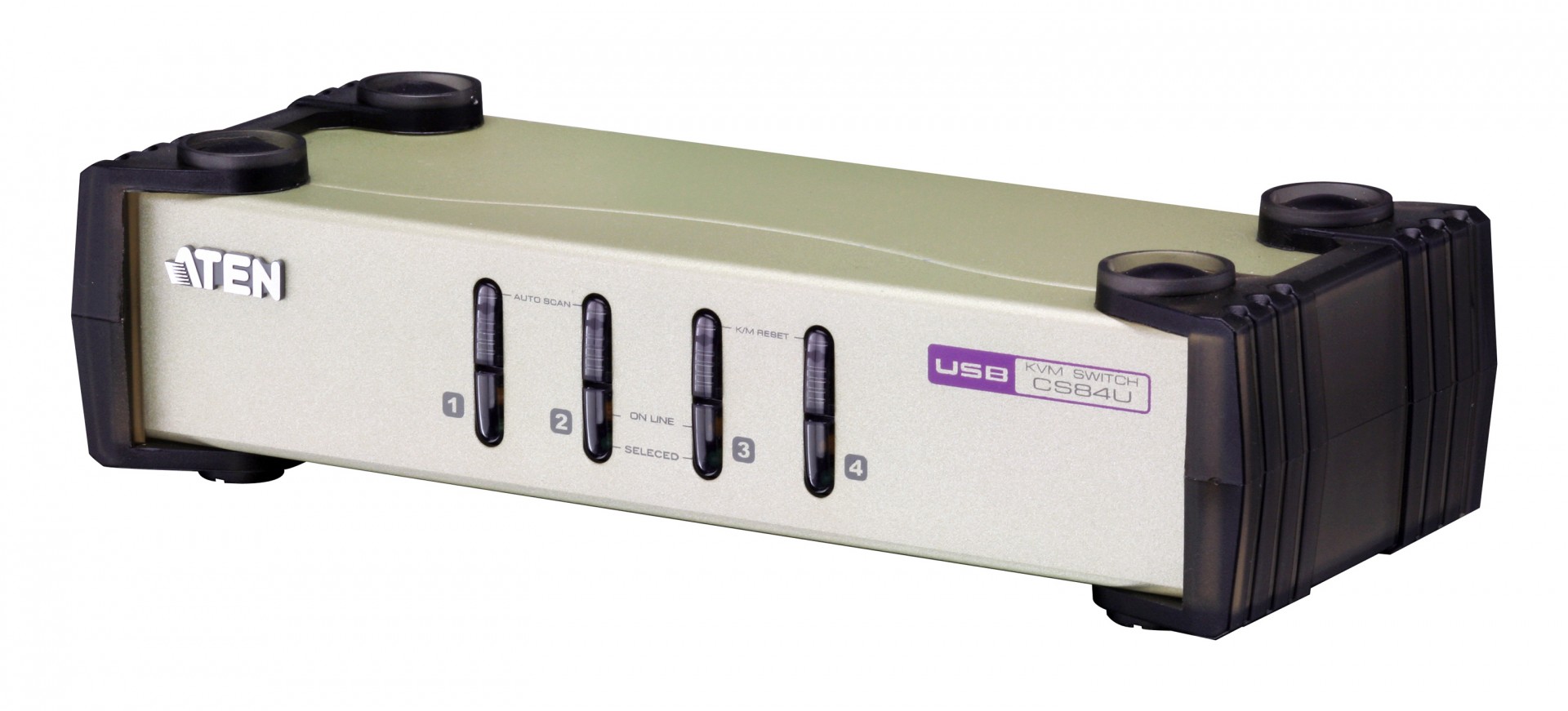

The CS84U enables quick access to up to 4 VGA-interfaced PCs via one KVM console and helps to expand your desktop workspace while keeping it tidy and organized for improved productivity.
One Console Cable, Two Connection Options
CS84U offers two types of console KVM cables in different lengths for selection, allowing connection to either PS/2 or USB keyboard/mouse to flexibly accommodate installation requirements. Access to each PC can be quickly switched via pushbuttons, hotkey or mouse from the KVM console.
Smooth Cross-Platform Integration
The CS84U enables the integration of different computer systems (Windows, Mac, Linux and Sun) that are accessible from one KVM console.
Video DynaSync™
ATEN's patented Video DynaSync™ ensures correct resolutions and display configurations are maintained when switching between ports under all operating systems, while also eliminating boot-up display problems and assuring smooth desktop operation.
Specs
| Ports & interfaces |
| Number of computers controlled |
4 |
| Keyboard port type |
USB |
| Mouse port type |
USB |
| Video port type |
VGA |
| Console ports |
USB A, VGA (D-Sub) |
| VGA (D-Sub) ports quantity |
4 |
| USB 2.0 Type-A hub ports quantity |
2 |
| USB connector type |
USB Type-A |
| DC-in jack |
Yes |
| Weight & dimensions |
| Width |
88 mm |
| Depth |
210 mm |
| Height |
55.5 mm |
| Weight |
770 g |
| Operational conditions |
| Operating temperature (T-T) |
0 - 50 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
0 - 80% |
| Storage relative humidity (H-H) |
0 - 80% |
| Power |
| Power source |
DC |
| Input voltage |
5 V |
| Power consumption (typical) |
0.45 W |
| Display |
| Built-in display |
No |
| Packaging content |
| Quick installation guide |
Yes |
| Manual |
Yes |
| Design |
| Rack mounting |
No |
| Product colour |
Black, Grey |
| Housing material |
Metal |
| LED indicators |
Yes |
| Push button |
Yes |
| Hot keys |
Yes |
| Performance |
| HD type |
QXGA |
| Maximum resolution |
2048 x 1536 pixels |
| Video bandwidth |
60 Hz |
| Scan interval |
3,5,10,20 s |
| DDC2B support |
Yes |
Features
ATEN CS84U. Keyboard port type: USB, Mouse port type: USB, Video port type: VGA. HD type: QXGA, Maximum resolution: 2048 x 1536 pixels, Video bandwidth: 60 Hz. Product colour: Black, Grey, Housing material: Metal. Power source: DC, Input voltage: 5 V, Power consumption (typical): 0.45 W. Width: 88 mm, Depth: 210 mm, Height: 55.5 mm
Product Description
The CS84U enables quick access to up to 4 VGA-interfaced PCs via one KVM console and helps to expand your desktop workspace while keeping it tidy and organized for improved productivity.
One Console Cable, Two Connection Options
CS84U offers two types of console KVM cables in different lengths for selection, allowing connection to either PS/2 or USB keyboard/mouse to flexibly accommodate installation requirements. Access to each PC can be quickly switched via pushbuttons, hotkey or mouse from the KVM console.
Smooth Cross-Platform Integration
The CS84U enables the integration of different computer systems (Windows, Mac, Linux and Sun) that are accessible from one KVM console.
Video DynaSync™
ATEN's patented Video DynaSync™ ensures correct resolutions and display configurations are maintained when switching between ports under all operating systems, while also eliminating boot-up display problems and assuring smooth desktop operation.
