Stock Status: 1x unit in stock
Features
Hardware
- High port density – RJ-45 connectors for up to 8 ports in a 1U housing
- A dedicated USB port directly connects to a laptop for easy Console operation
- One bus for remote KVM over IP access
- Supports PS/2, USB, Sun Legacy (13W3) and serial (RS-232) connectivity
- Local console provides PS/2 and USB keyboard and mouse support
- Multiplatform support - Windows, Mac, Sun and Linux
- Superior Video Quality - up to 1600 x 1200 @ 60Hz at up to 40 meters and 1280 x 1024 @ 75Hz at up to 50 meters*
- Daisy-chain up to 15 additional units – control up to 128 computers from a single console
* With KVM Adapter Cable KA7000 series.
Management
- Up to 64 user accounts – up to 32 users simultaneously share the control
- End session feature – administrators can terminate running sessions
- Event logging and Windows-based Log Server support
- Local Log Event
- Adapter ID – stores port information allowing administrators to relocate the servers to different ports, without having to reconfigure the adapters and switch
- Port Share Mode allows multiple users to gain access to a server simultaneously
- Integration with ALTUSEN CC2000 Management software
- Power Over the NET™ integration for remote power control
- Firmware upgradeable
- IPv6 capable
Ease-to-Use Interface
- Local Console, Browser, and AP GUIs offer a unified Multilanguage interface to minimize user training time and increase productivity
- Multiplatform client support (Windows, Mac OS X, Linux, Sun)
- Multibrowser support (IE, Mozilla, Firefox, Safari, Opera, Netscape)
- Browser-based UI in pure Web technology allows administrators to perform administrative tasks without the need for Java to be pre-installed
- Panel Array Mode#8482;
- Keyboard broadcast – keyboard input can be duplicated on all the attached servers
Advanced Security
- Remote authentication support: RADIUS, LDAP, LDAPS, and MS Active Directory
- 128-bit SSL encryption to protect password when users log in
- Flexible encryption design allows users to choose any combination of 56-bit DES, 168-bit 3DES 256-bit AES, 128-bit RC4, or Random for independent KB/Mouse, and video, data encryption
- IP/MAC Filter for enhanced security protection
- Configurable user and group permissions for server access and control
Virtual Remote Desktop
- Video quality and video tolerance can be adjusted to optimize data transfer speed; monochrome color depth setting, threshold and noise settings for compression of the data bandwidth in low bandwidth situations
- Full screen or scalable video display
- Message Board for communication among remote users
- Mouse DynaSync™ - automatically synchronizes the local and remote mouse movements
- On-screen keyboard with multilanguage support
- Exit Macros support
- BIOS-level access
Package Contents

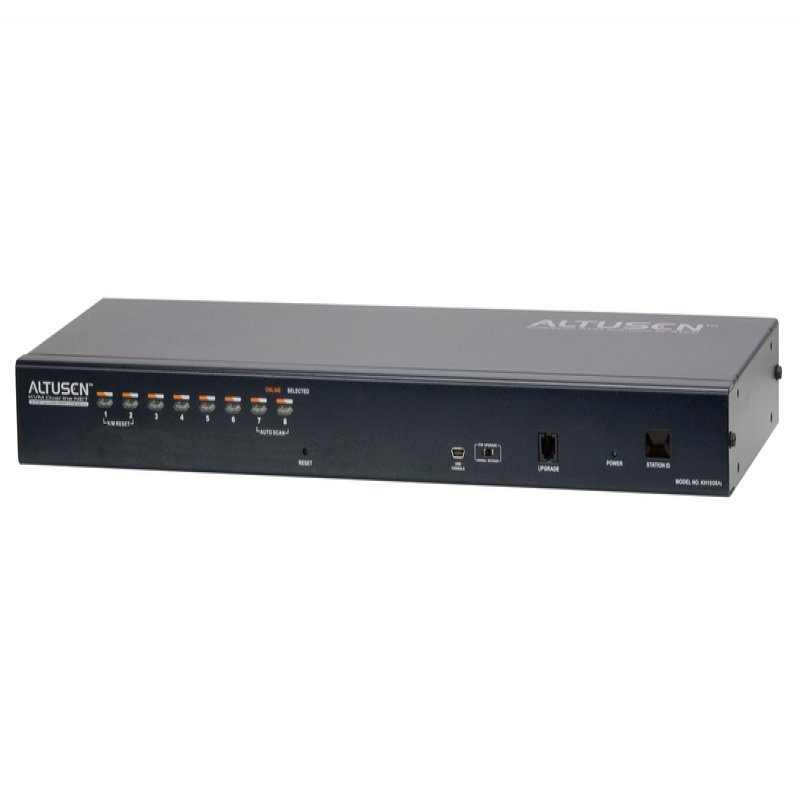

- 1x KH1508Ai Cat 5 High-Density KVM Over the NET™ Switch
- 1x Firmware Upgrade Cable
- 1x Laptop USB Console Cable
- 1x 0AD8-0C05-34EG Power Cord
- 1x Rack Mount Kit
- 1x Foot Pad Set (4 pcs.)
- 1x User Instructions
Specs
| Ports & interfaces |
| Number of computers controlled |
8 |
| Video port type |
VGA |
| HDMI ports quantity |
0 |
| DVI-D ports quantity |
0 |
| DVI-I ports quantity |
0 |
| VGA (D-Sub) ports quantity |
1 |
| USB 2.0 ports quantity |
3 |
| Weight & dimensions |
| Width |
161 mm |
| Depth |
437 mm |
| Height |
44 mm |
| Weight |
2.8 kg |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
0 - 80% |
| Networking |
| Ethernet LAN |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| Networking standards |
IEEE 802.3, IEEE 802.3u |
| Security algorithms |
256-bit AES, 3DES, 802.1x RADIUS, DES, SSL/TLS |
| Power |
| Power consumption (typical) |
12.5 W |
| Packaging content |
| Quick installation guide |
Yes |
| Manual |
Yes |
| Other features |
| Connectivity technology |
Wired |
| Ports quantity |
8 |
| Power requirements |
1A |
| Minimum system requirements |
Pentium III 1 GHz 1024 x 768
VGA/SVGA/Multisync
USB Type A
6-pin mini-DIN |
| Display resolution at frequency |
1600 x 1200 @ 60Hz
1280 x 1024 @ 75Hz |
| Design |
| Rack mounting |
Yes |
| Product colour |
Black |
| Rack capacity |
1U |
| Housing material |
Metal |
| Cable length |
50.29 m |
| LED indicators |
Yes |
| Performance |
| Maximum resolution |
1600 x 1200 pixels |
| Scan interval |
255 s |
| Packaging data |
| Package weight |
4.08 kg |
Features
ATEN KH1508Ai. Video port type: VGA. Networking standards: IEEE 802.3, IEEE 802.3u, Security algorithms: 256-bit AES, 3DES, 802.1x RADIUS, DES, SSL/TLS. Maximum resolution: 1600 x 1200 pixels, Scan interval: 255 s. Product colour: Black, Rack capacity: 1U, Housing material: Metal. Power consumption (typical): 12.5 W
Product Description
Features
Hardware
- High port density – RJ-45 connectors for up to 8 ports in a 1U housing
- A dedicated USB port directly connects to a laptop for easy Console operation
- One bus for remote KVM over IP access
- Supports PS/2, USB, Sun Legacy (13W3) and serial (RS-232) connectivity
- Local console provides PS/2 and USB keyboard and mouse support
- Multiplatform support - Windows, Mac, Sun and Linux
- Superior Video Quality - up to 1600 x 1200 @ 60Hz at up to 40 meters and 1280 x 1024 @ 75Hz at up to 50 meters*
- Daisy-chain up to 15 additional units – control up to 128 computers from a single console
* With KVM Adapter Cable KA7000 series.
Management
- Up to 64 user accounts – up to 32 users simultaneously share the control
- End session feature – administrators can terminate running sessions
- Event logging and Windows-based Log Server support
- Local Log Event
- Adapter ID – stores port information allowing administrators to relocate the servers to different ports, without having to reconfigure the adapters and switch
- Port Share Mode allows multiple users to gain access to a server simultaneously
- Integration with ALTUSEN CC2000 Management software
- Power Over the NET™ integration for remote power control
- Firmware upgradeable
- IPv6 capable
Ease-to-Use Interface
- Local Console, Browser, and AP GUIs offer a unified Multilanguage interface to minimize user training time and increase productivity
- Multiplatform client support (Windows, Mac OS X, Linux, Sun)
- Multibrowser support (IE, Mozilla, Firefox, Safari, Opera, Netscape)
- Browser-based UI in pure Web technology allows administrators to perform administrative tasks without the need for Java to be pre-installed
- Panel Array Mode#8482;
- Keyboard broadcast – keyboard input can be duplicated on all the attached servers
Advanced Security
- Remote authentication support: RADIUS, LDAP, LDAPS, and MS Active Directory
- 128-bit SSL encryption to protect password when users log in
- Flexible encryption design allows users to choose any combination of 56-bit DES, 168-bit 3DES 256-bit AES, 128-bit RC4, or Random for independent KB/Mouse, and video, data encryption
- IP/MAC Filter for enhanced security protection
- Configurable user and group permissions for server access and control
Virtual Remote Desktop
- Video quality and video tolerance can be adjusted to optimize data transfer speed; monochrome color depth setting, threshold and noise settings for compression of the data bandwidth in low bandwidth situations
- Full screen or scalable video display
- Message Board for communication among remote users
- Mouse DynaSync™ - automatically synchronizes the local and remote mouse movements
- On-screen keyboard with multilanguage support
- Exit Macros support
- BIOS-level access
Package Contents
- 1x KH1508Ai Cat 5 High-Density KVM Over the NET™ Switch
- 1x Firmware Upgrade Cable
- 1x Laptop USB Console Cable
- 1x 0AD8-0C05-34EG Power Cord
- 1x Rack Mount Kit
- 1x Foot Pad Set (4 pcs.)
- 1x User Instructions
