Stock Status: 1x unit in stock

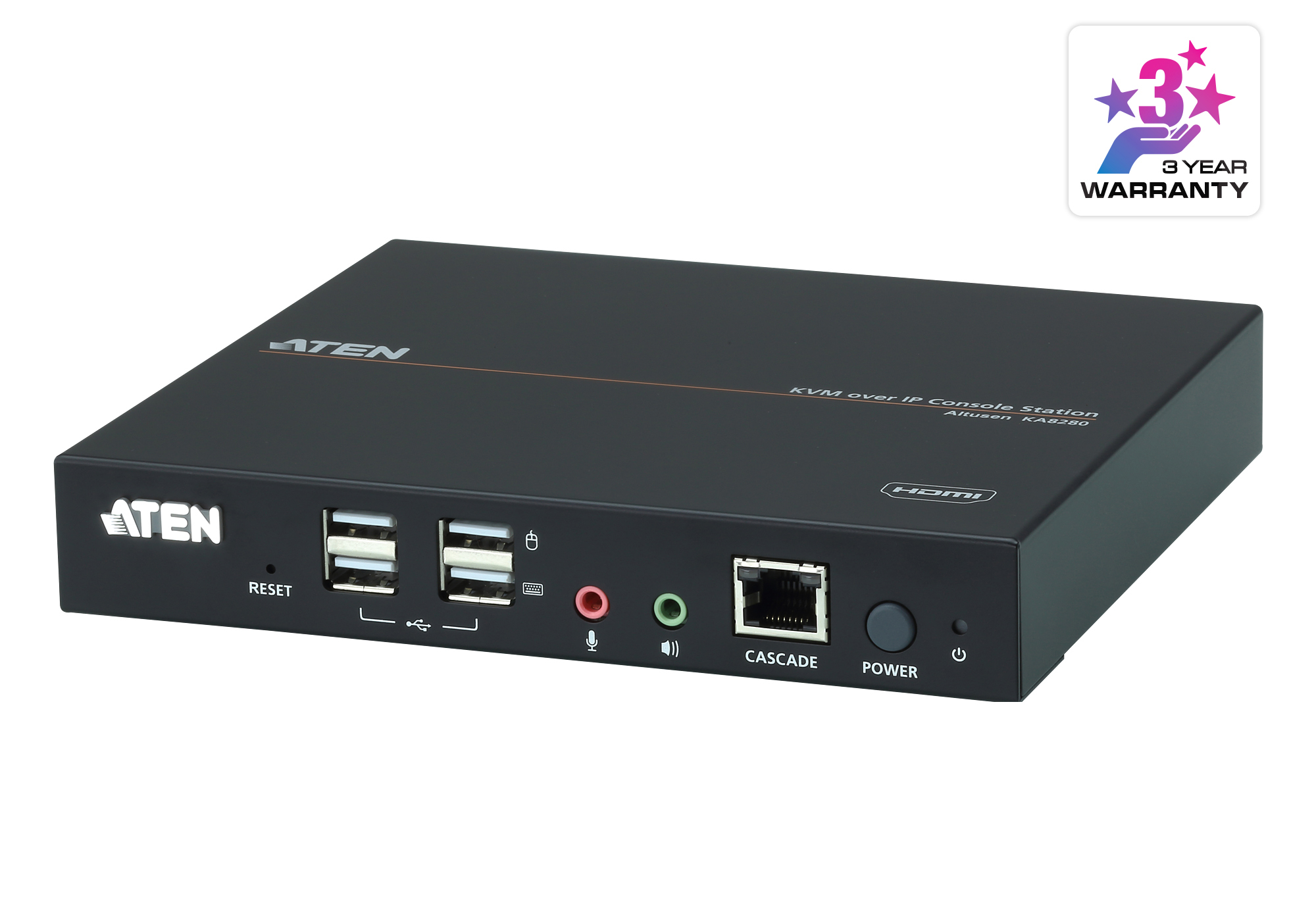

The KVM over IP Console Station KA8280 is a standalone console that replaces PC or NB, enabling users to remotely access, monitor and control all servers connected to multiple ATEN’s KVM over IP switches* with impenetrable security against virus threats. It also supports various data encryption methods, ensuring impervious data protection. The KVM over IP Console Station can be deployed anywhere instant access is needed and stringent security required, ideal for applications such as studios, offices, data centers, broadcast stations, control rooms, or network operations centers (NOC).
The KA8280 supports USB mouse/keyboard and two USB ports for Virtual Media function, and supports 1 HDMI video output at resolutions up to 1920 x 1200 @ 60 Hz.
In addition, the KVM over IP Console Station provides Panel Array Mode™ function, enabling administrators to monitor the video output of up to 64 servers simultaneously. The feature makes it possible for previewing the content of all the ports at the same time, which is especially suitable for environments such as manufacturing and surveillance that often require monitoring of a much higher number of ports.
The KVM over IP Console Station can be set on a desk, mounted on a wall or at the rear of a rack with its spacesaving 0U rack mount design. It is flexible and easy to install, and provides a GUI with multi-language interface for device management, user profile customization, as well as hassle-free configuration for large deployments.
Specs
| Ports & interfaces |
| Keyboard port type |
USB |
| Mouse port type |
USB |
| Video port type |
HDMI |
| HDMI ports quantity |
1 |
| USB connector type |
USB Type-A |
| Serial port type |
DE-9 (DB-9) |
| Serial ports quantity |
1 |
| Audio connections |
Yes |
| Headphone outputs |
1 |
| Number of microphone inputs |
1 |
| DC-in jack |
Yes |
| Weight & dimensions |
| Width |
155.4 mm |
| Depth |
174.2 mm |
| Height |
28.8 mm |
| Weight |
750 g |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
0 - 80% |
| Networking |
| Ethernet LAN |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| Power |
| Power source |
DC |
| Input voltage |
5 V |
| Power consumption (typical) |
4.66 W |
| Display |
| Built-in display |
No |
| Packaging content |
| Cables included |
AC |
| Manual |
Yes |
| AC adapter included |
Yes |
| Design |
| Rack mounting |
Yes |
| Product colour |
Black |
| Housing material |
Metal |
| LED indicators |
Power |
| Push button |
Yes |
| Performance |
| HD type |
Full HD+ |
| Maximum resolution |
1920 x 1200 pixels |
| Video bandwidth |
60 Hz |
| Sustainability |
| Compliance certificates |
RoHS |
Features
ATEN KA8280. Keyboard port type: USB, Mouse port type: USB, Video port type: HDMI. HD type: Full HD+, Maximum resolution: 1920 x 1200 pixels, Video bandwidth: 60 Hz. Product colour: Black, Housing material: Metal, LED indicators: Power. Power source: DC, Input voltage: 5 V, Power consumption (typical): 4.66 W. Compliance certificates: RoHS
Product Description
The KVM over IP Console Station KA8280 is a standalone console that replaces PC or NB, enabling users to remotely access, monitor and control all servers connected to multiple ATEN’s KVM over IP switches* with impenetrable security against virus threats. It also supports various data encryption methods, ensuring impervious data protection. The KVM over IP Console Station can be deployed anywhere instant access is needed and stringent security required, ideal for applications such as studios, offices, data centers, broadcast stations, control rooms, or network operations centers (NOC).
The KA8280 supports USB mouse/keyboard and two USB ports for Virtual Media function, and supports 1 HDMI video output at resolutions up to 1920 x 1200 @ 60 Hz.
In addition, the KVM over IP Console Station provides Panel Array Mode™ function, enabling administrators to monitor the video output of up to 64 servers simultaneously. The feature makes it possible for previewing the content of all the ports at the same time, which is especially suitable for environments such as manufacturing and surveillance that often require monitoring of a much higher number of ports.
The KVM over IP Console Station can be set on a desk, mounted on a wall or at the rear of a rack with its spacesaving 0U rack mount design. It is flexible and easy to install, and provides a GUI with multi-language interface for device management, user profile customization, as well as hassle-free configuration for large deployments.
