Stock Status: 1x unit in stock

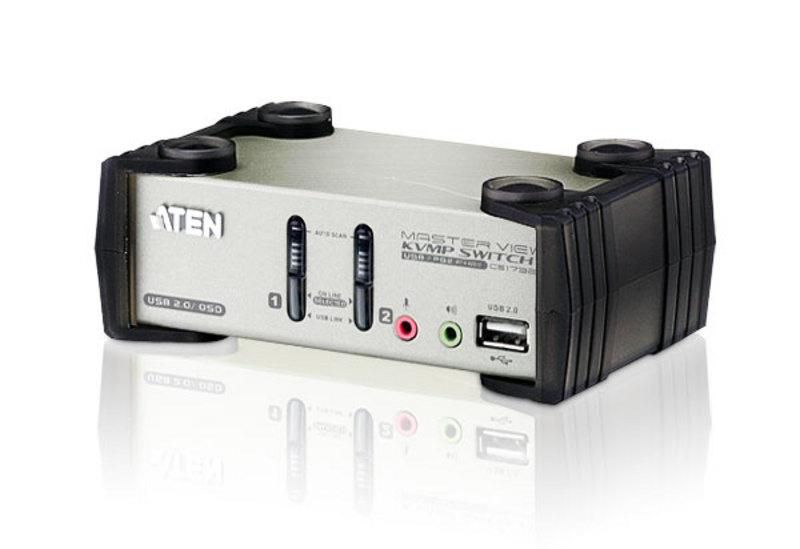

The CS1732B is 2-port KVM switch combined with a 2-port USB 2.0 hub. As a KVM switch, it allows users to access two computers from a single keyboard, monitor, and mouse console. There are four methods to obtain instant access to any computer in your installation: Pushbuttons, Hotkeys, OSD, and mouse.
1 x CS1732B 2-Port USB 2.0 KVMP™ Switch
2 x 2L-5301U USB KVM Cables (1.2m)
1 x LIN5-04A2-J13G Firmware Upgrade Cable
1 x 0AD8-1605-24M1 Power Adapter
2 x OSD/Hotkey Stickers
1 x User Instructions
Specs
| Ports & interfaces |
| Number of computers controlled |
2 |
| Keyboard port type |
USB, PS/2 |
| Mouse port type |
USB, PS/2 |
| Video port type |
VGA |
| Console ports |
3.5mm headphone, 3.5mm mic |
| USB hub |
Y |
| USB 2.0 Type-A hub ports quantity |
2 |
| Audio connections |
Y |
| Headphone outputs |
4 |
| Number of microphone inputs |
4 |
| DC-in jack |
Y |
| Weight & dimensions |
| Width |
140 mm |
| Depth |
88 mm |
| Height |
55.5 mm |
| Weight |
1.15 kg |
| Operational conditions |
| Operating temperature (T-T) |
0 - 50 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
0 - 80% |
| Power |
| Power source |
DC |
| DC input voltage |
5.3 V |
| Power consumption (typical) |
2.5 W |
| System requirements |
| Windows operating systems supported |
Y |
| Mac operating systems supported |
Y |
| Display |
| On Screen Display (OSD) |
Y |
| Packaging content |
| Cables included |
KVM |
| Quick installation guide |
Y |
| Manual |
Y |
| Design |
| Product colour |
Black, Metallic |
| Housing material |
Metal |
| Cable length |
1.2 m |
| LED indicators |
Y |
| Push button |
Y |
| Hot keys |
Y |
| Performance |
| HD type |
QXGA |
| Maximum resolution |
2048 x 1536 pixels |
| Video bandwidth |
60 Hz |
| Scan interval |
1,255 s |
| DDC2B support |
Y |
| Firmware upgradeable |
Y |
| Packaging data |
| Package width |
62 mm |
| Package depth |
283 mm |
| Package height |
173 mm |
| Package weight |
1.34 kg |
Features
ATEN CS1732B-AT-E. Keyboard port type: USB, PS/2, Mouse port type: USB, PS/2, Video port type: VGA. HD type: QXGA, Maximum resolution: 2048 x 1536 pixels, Video bandwidth: 60 Hz. Product colour: Black, Metallic, Housing material: Metal, Cable length: 1.2 m. Power source: DC, DC input voltage: 5.3 V, Power consumption (typical): 2.5 W. Width: 140 mm, Depth: 88 mm, Height: 55.5 mm
Product Description
The CS1732B is 2-port KVM switch combined with a 2-port USB 2.0 hub. As a KVM switch, it allows users to access two computers from a single keyboard, monitor, and mouse console. There are four methods to obtain instant access to any computer in your installation: Pushbuttons, Hotkeys, OSD, and mouse.
1 x CS1732B 2-Port USB 2.0 KVMP™ Switch
2 x 2L-5301U USB KVM Cables (1.2m)
1 x LIN5-04A2-J13G Firmware Upgrade Cable
1 x 0AD8-1605-24M1 Power Adapter
2 x OSD/Hotkey Stickers
1 x User Instructions
