Stock Status: 1x unit in stock

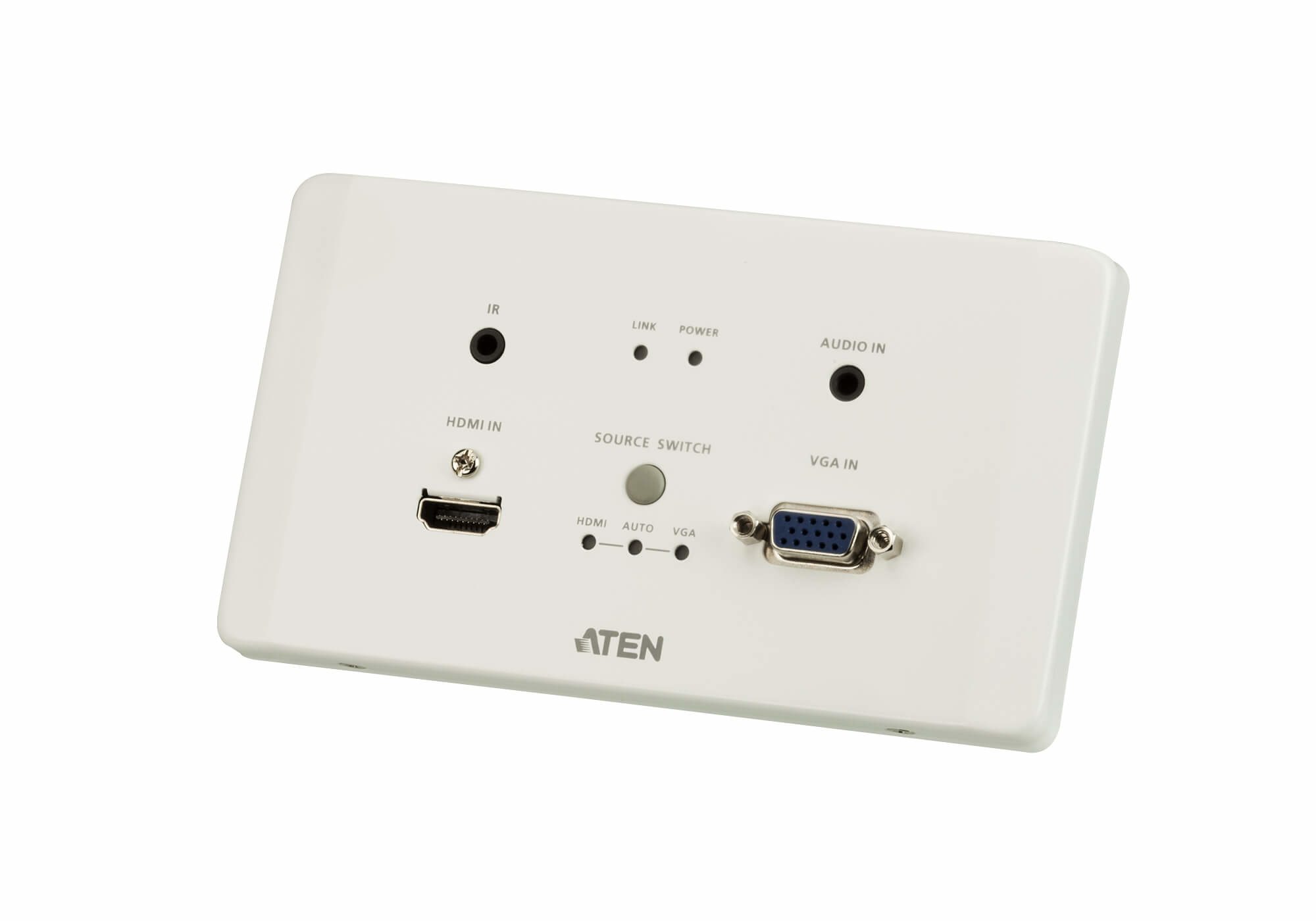

ATEN VE2812EUT is a transmitter for sending VGA (with audio) and HDMI signals up to 100 m over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable. With EU Wall Plate design, the VE2812EUT can be conveniently mounted in a two-gang junction box. The VE2812EUT guarantees reliable transmission of HDMI / VGA signals. For HDMI signal transmission, it supports 3D, Deep Color, and embedded HD lossless audio formats. To pursue longer distance transmission, it supports Long Reach Mode up to 150 m via a single Cat 5e/6 cable at resolutions up to 1080p.
For utility flexibility, the VE2812EUT can serve as a video switch by connecting two sources and distribute them to an identical output. The compact wall plate design does away with bulky cables, allowing a neat and convenient installation. Therefore, The VE2812EUT is specifically designed for use in meeting rooms, digital educational environment or wherever needed to meet application requirements.
Specs
| Ports & interfaces |
| Connectivity technology |
Wired |
| Ethernet LAN |
Yes |
| VGA (D-Sub) input ports |
1 |
| HDMI in |
1 |
| RS-232 input ports |
1 |
| VGA (D-Sub) ports quantity |
1 |
| Audio (L/R) out |
1 |
| AUX in |
Yes |
| 3.5 mm (1/8-inch) in |
Yes |
| Weight & dimensions |
| Width |
108 mm |
| Depth |
50 mm |
| Height |
51.7 mm |
| Weight |
350 g |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
0 - 80% |
| Power |
| Power consumption (transmitter) (max) |
3.14 W |
| Features |
| Type |
AV transmitter |
| Maximum resolution |
4096 x 2160 pixels |
| Cable types supported |
Cat5e, Cat6, Cat6a |
| Maximum transfer distance |
150 m |
| Maximum refresh rate |
60 Hz |
| Supported graphics resolutions |
1600 x 1200 (UXGA), 1920 x 1080 (HD 1080), 3840 x 2160, 4096 x 2160 |
| Bandwidth |
340 MHz |
| HDCP |
Yes |
| Material |
Metal |
| Wall mountable |
Yes |
| Impedance |
100 Ω |
| Product colour |
White |
Features
ATEN VE2812EUT-AT-E. Type: AV transmitter, Maximum resolution: 4096 x 2160 pixels, Cable types supported: Cat5e, Cat6, Cat6a. Connectivity technology: Wired. Power consumption (transmitter) (max): 3.14 W. Width: 108 mm, Depth: 50 mm, Height: 51.7 mm
Product Description
ATEN VE2812EUT is a transmitter for sending VGA (with audio) and HDMI signals up to 100 m over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable. With EU Wall Plate design, the VE2812EUT can be conveniently mounted in a two-gang junction box. The VE2812EUT guarantees reliable transmission of HDMI / VGA signals. For HDMI signal transmission, it supports 3D, Deep Color, and embedded HD lossless audio formats. To pursue longer distance transmission, it supports Long Reach Mode up to 150 m via a single Cat 5e/6 cable at resolutions up to 1080p.
For utility flexibility, the VE2812EUT can serve as a video switch by connecting two sources and distribute them to an identical output. The compact wall plate design does away with bulky cables, allowing a neat and convenient installation. Therefore, The VE2812EUT is specifically designed for use in meeting rooms, digital educational environment or wherever needed to meet application requirements.
