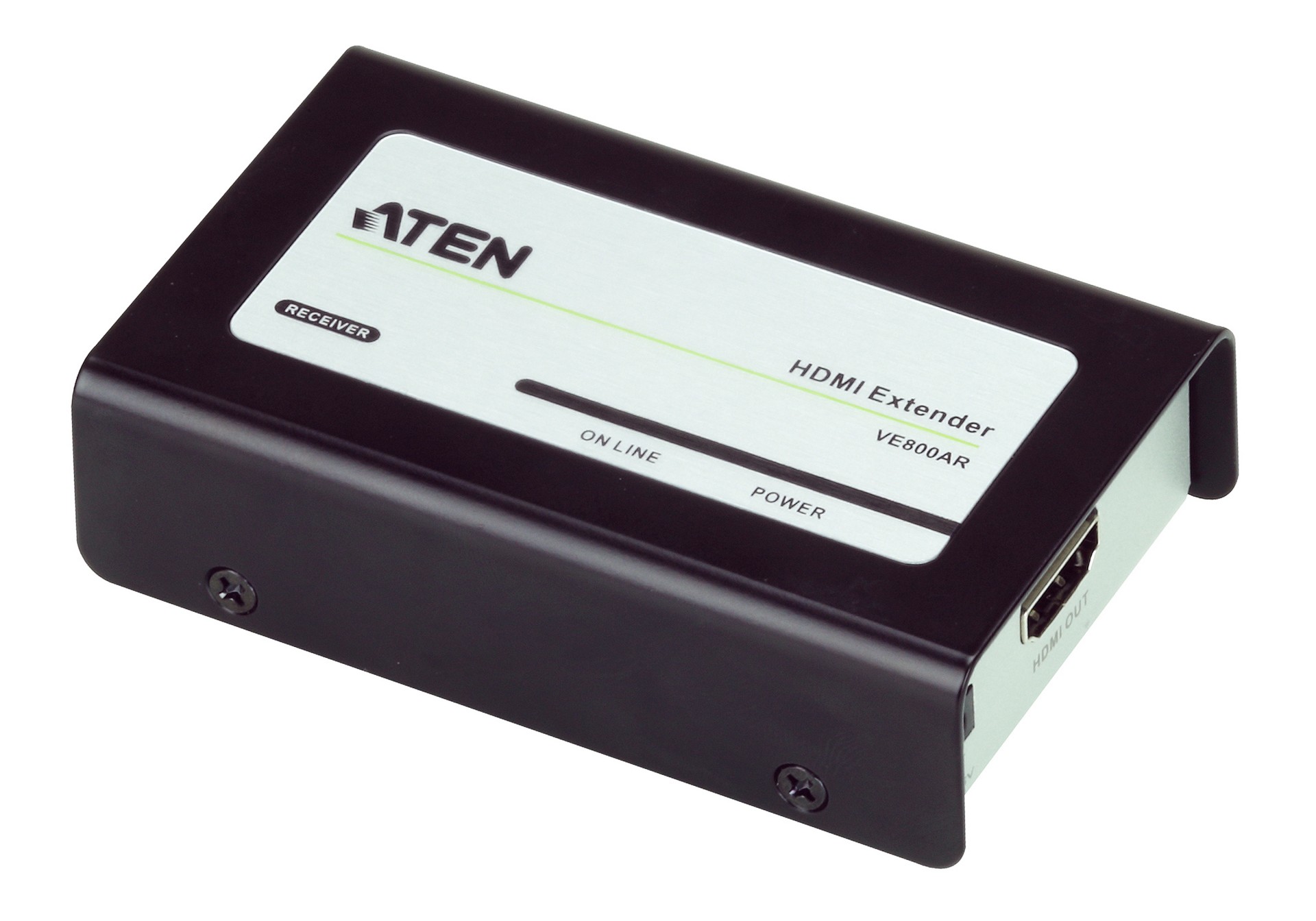

aten VE800AR-AT-E VE800AR - MW01
[ve800ar]

Name: aten VE800AR-AT-E VE800AR - MW01
Brand: Aten
SKU: ve800ar
Price: 59.00 GBP
Availability: InStock

Part Number: ve800ar

Manufacturer: Aten

Condition: New

Short Description:

HDMI Extender Receiver Single UTP

£59.00
£70.80 - Inc VAT

Stock Status: 1x unit in stock

The VE800AR HDMI Receiver connects to a transmitter* to extend signals up to 60m from the source using a Cat 5e cable. ATEN’s VE800A incorporates new technology that allows the A/V signals to be transmitted over a single Cat 5e cable. DDC port is provided for the ability to use the display’s EDID by simply connecting another Cat 5e cable. The VE800A supports HDMI features such as 3D and Deep Color to give you the picture perfect viewing experience you desire.

Compatible Transmitter Units: VS1804T 4-Port HDMI Over Cat 5 Splitter
VS1808T 8-Port HDMI Over Cat 5 Splitter

Reviews

Specs

Ports & interfaces
Connectivity technology	Wired
HDMI in	1
Number of HDMI outputs	1
Audio input	1
Audio output	1
DC-in jack	Yes
Weight & dimensions
Receiver dimensions (WxDxH)	55 x 90 x 23 mm
Receiver weight	160 g
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Power
Operating voltage	5 V
Power consumption (receiver) (max)	0.75 W
Packaging content
Manual	Yes
Mounting kit	Yes
Features
Type	AV receiver
Maximum resolution	1920 x 1080 pixels
Cable types supported	Cat5e
Maximum transfer distance	60 m
Supported video modes	1080i, 1080p
Supported graphics resolutions	1920 x 1080 (HD 1080)
Bandwidth	225 MHz
HDCP	Yes
Material	Metal
Impedance	100 Ω
Product colour	Black

Related Products

ATEN CS1844 KVMP Switch - KVM / Audio / USB Switch - 4 X KVM / Audio / USB - 1 Local User - Desktop - For VanCryst VS184B CS1844 - C2000

ATEN CS1842 2-Port USB 3.0 4K HDMI Dual Display KVMP Switch - KVM / Audio / USB Switch - 2 X KVM / Audio / USB - 1 Local User - Desktop - For VanCryst VS184B CS1842 - C2000

Aten 10M HDMI 1.4 Cable M/M 28AWG Gold Black 2L-7D10H - eet01

Aten High Speed HDMI Cable with Ethernet True 4K ( 4096X2160 2L-7D02H-1 - eet01

ATEN 2L-7D01H - HDMI Cable With Ethernet - HDMI Male To HDMI Male - 1 M - Shielded - Black - 4K Support - For ATEN VM5404HA, VM5808HA, VanCryst VM0808HA, VM5404H, VM6404HB, VM6809H, VS0801H 2 - C2000

Features

ATEN VE800AR. Type: AV receiver, Maximum resolution: 1920 x 1080 pixels, Cable types supported: Cat5e. Connectivity technology: Wired. Operating voltage: 5 V, Power consumption (receiver) (max): 0.75 W. Receiver dimensions (WxDxH): 55 x 90 x 23 mm, Receiver weight: 160 g

Product Description

The VE800AR HDMI Receiver connects to a transmitter* to extend signals up to 60m from the source using a Cat 5e cable. ATEN’s VE800A incorporates new technology that allows the A/V signals to be transmitted over a single Cat 5e cable. DDC port is provided for the ability to use the display’s EDID by simply connecting another Cat 5e cable. The VE800A supports HDMI features such as 3D and Deep Color to give you the picture perfect viewing experience you desire.

Compatible Transmitter Units: VS1804T 4-Port HDMI Over Cat 5 Splitter
VS1808T 8-Port HDMI Over Cat 5 Splitter
