Stock Status: 1x unit in stock

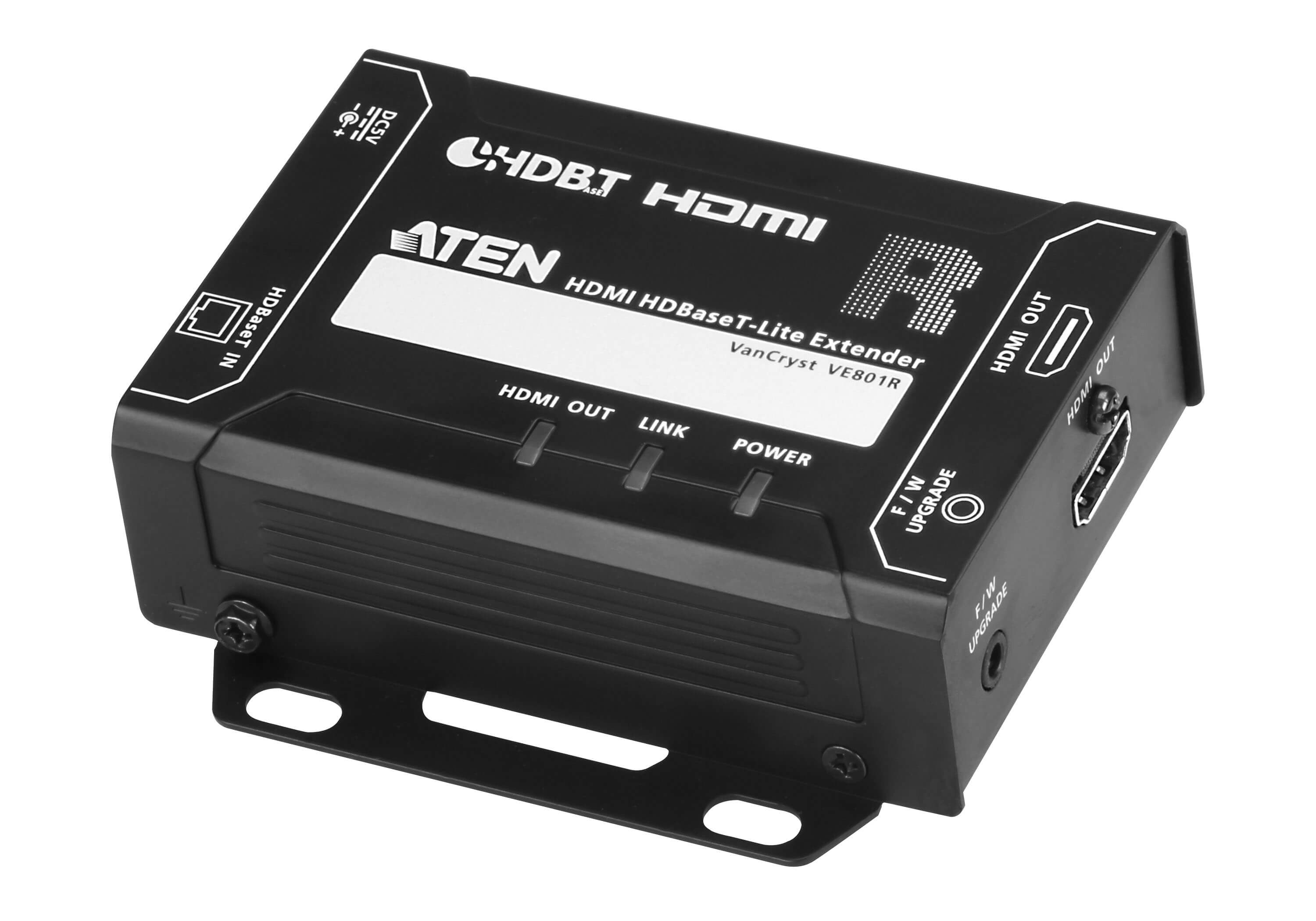

The VE801R HDMI HDBaseT-Lite Receiver incorporating connects with HDBaseT transmitters* to extend signal up to 70m from the source using one Cat 5e/6/6a cable. It supports HDMI features that include 3D, Deep Color and 4K image resolutions, plus Dolby Digital 5.1, DTS HD audio and it is HDCP compatible. The VE801R all-in-one design provides an easy method for mounting the device in any location. The side panel provides slip-resistant grooves that help prevent accidental drops when installing the unit. The grooves also enhance the ability to see the LED status lights. The VE801R is perfect for digital entertainment centers or any installation that requires superior HDMI video quality to be extended for great distances.
* Compatible HDBaseT Transmitter Units: VE801T
Specs
| Technical details |
| Compliance certificates |
RoHS |
| Ports & interfaces |
| Ethernet LAN |
Yes |
| RJ-45 input ports |
1 |
| Number of HDMI outputs |
1 |
| DC-in jack |
Yes |
| Weight & dimensions |
| Dimensions (WxDxH) |
87 x 103 x 30 mm |
| Weight |
250 g |
| Operational conditions |
| Operating temperature (T-T) |
0 - 50 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
0 - 80% |
| Power |
| Power consumption (typical) |
4.23 W |
| Packaging content |
| AC adapter included |
Yes |
| Features |
| Type |
AV receiver |
| Maximum resolution |
3840 x 2160 pixels |
| Cable types supported |
Cat5e, Cat6, Cat6a |
| Maximum transfer distance |
70 m |
| LED indicators |
Yes |
| Supported video modes |
1080p |
| Bandwidth |
340 MHz |
| HDCP |
Yes |
| Material |
Metal |
| Product colour |
Black |
Features
ATEN HDMI Receiver only over 1 CAT5e/6 Cable (70m) ,4K / HDBaseT-Lite (Class B). Type: AV receiver, Maximum resolution: 3840 x 2160 pixels, Cable types supported: Cat5e, Cat6, Cat6a. Power consumption (typical): 4.23 W. Dimensions (WxDxH): 87 x 103 x 30 mm, Weight: 250 g
Product Description
The VE801R HDMI HDBaseT-Lite Receiver incorporating connects with HDBaseT transmitters* to extend signal up to 70m from the source using one Cat 5e/6/6a cable. It supports HDMI features that include 3D, Deep Color and 4K image resolutions, plus Dolby Digital 5.1, DTS HD audio and it is HDCP compatible. The VE801R all-in-one design provides an easy method for mounting the device in any location. The side panel provides slip-resistant grooves that help prevent accidental drops when installing the unit. The grooves also enhance the ability to see the LED status lights. The VE801R is perfect for digital entertainment centers or any installation that requires superior HDMI video quality to be extended for great distances.
* Compatible HDBaseT Transmitter Units: VE801T
