aten VE802-AT-E VE802 - MW01
[ve802]

Name: aten VE802-AT-E VE802 - MW01
Brand: Aten
SKU: ve802
Price: 331.00 GBP
Availability: InStock

TEMPORARILY OUT OF STOCK

Part Number: ve802

Manufacturer: Aten

Condition: New

Short Description:

HDMI HDBaseT-Lite Extender With POH

£331.00
£397.20 - Inc VAT

Thank you for your request, PLEASE RE-TYPE THE PART NUMBER IN THE SEARCH BOX

Stock Status: 1x unit in stock

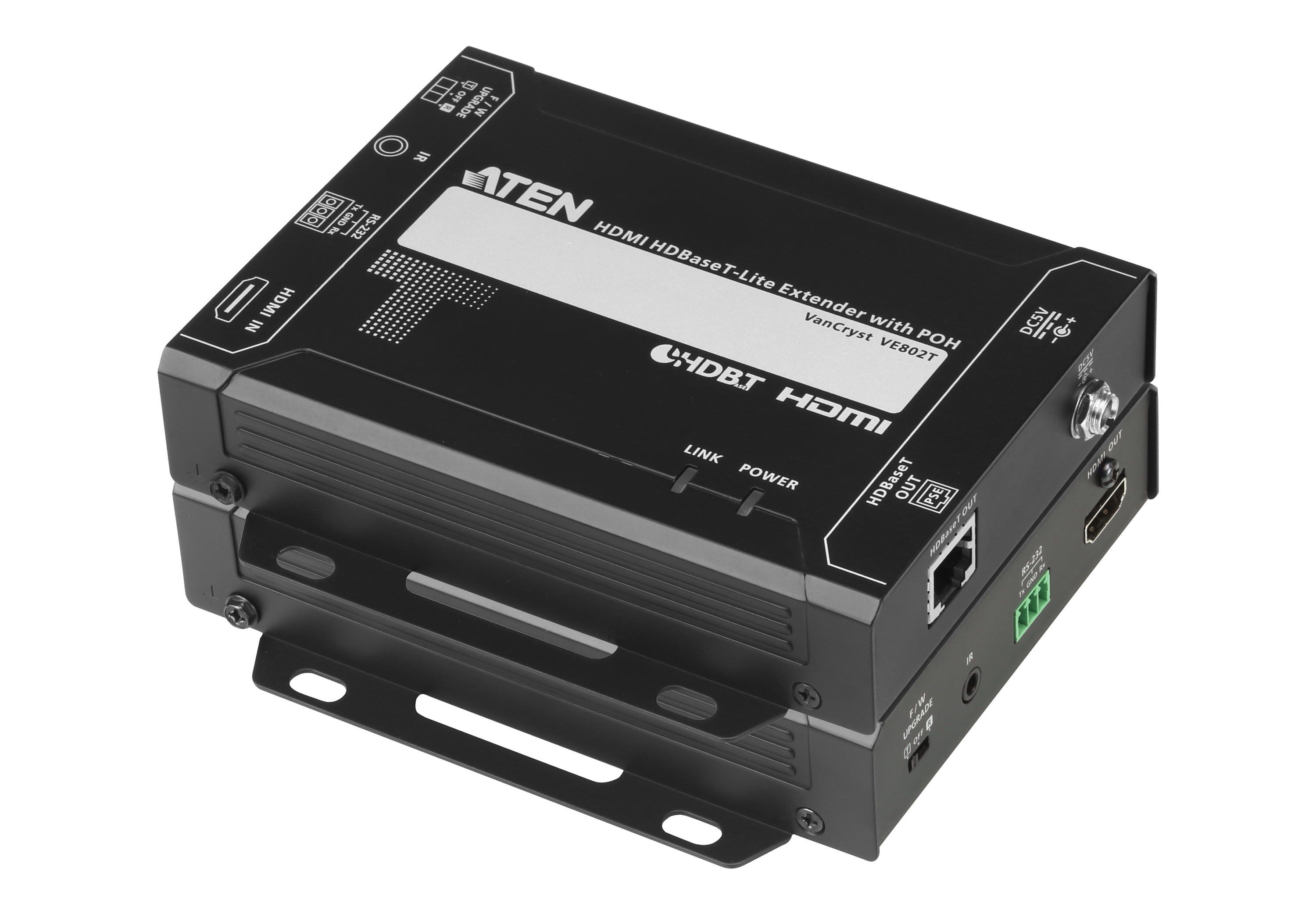

The VE802 HDMI HDBaseT-Lite Extender extends an HDBaseT signal up to 70m from the HDBaseT source using one Cat 5e/6/6a cable. VE802 supports RS-232 and IR signaling passthrough, allowing you to control the HDMI source device from the remote unit (VE802R) while also granting access to the HDMI display device from the local unit (VE802T). IR signals can also be extended in both directions. The VE802 features Power over HDBaseT (POH) which can send power over Cat 5e/6/6a cable without an additional power supply. The VE802 is HDMI (3D, Deep Color,4k) and HDCP compatible. The VE802 is perfect for a digital entertainment center or any installation that requires superior video quality.

Reviews

Specs

Technical details
Colour	Yes
Ports & interfaces
Connectivity technology	Wired
Number of HDMI outputs	1
RS-232 input ports	1
DC-in jack	Yes
Weight & dimensions
Dimensions (WxDxH)	144 x 123 x 30 mm
Weight	440 g
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Features
Type	AV transmitter & receiver
Maximum resolution	4096 x 2160 pixels
Cable types supported	Cat6a, Cat6e
Maximum transfer distance	1.8 m
Maximum refresh rate	340 Hz
Bandwidth	10 Gbit/s
HDCP	Yes
Material	Metal
3D	Yes
Plug and Play	Yes
Impedance	100 Ω
Product colour	Black
