Stock Status: 1x unit in stock

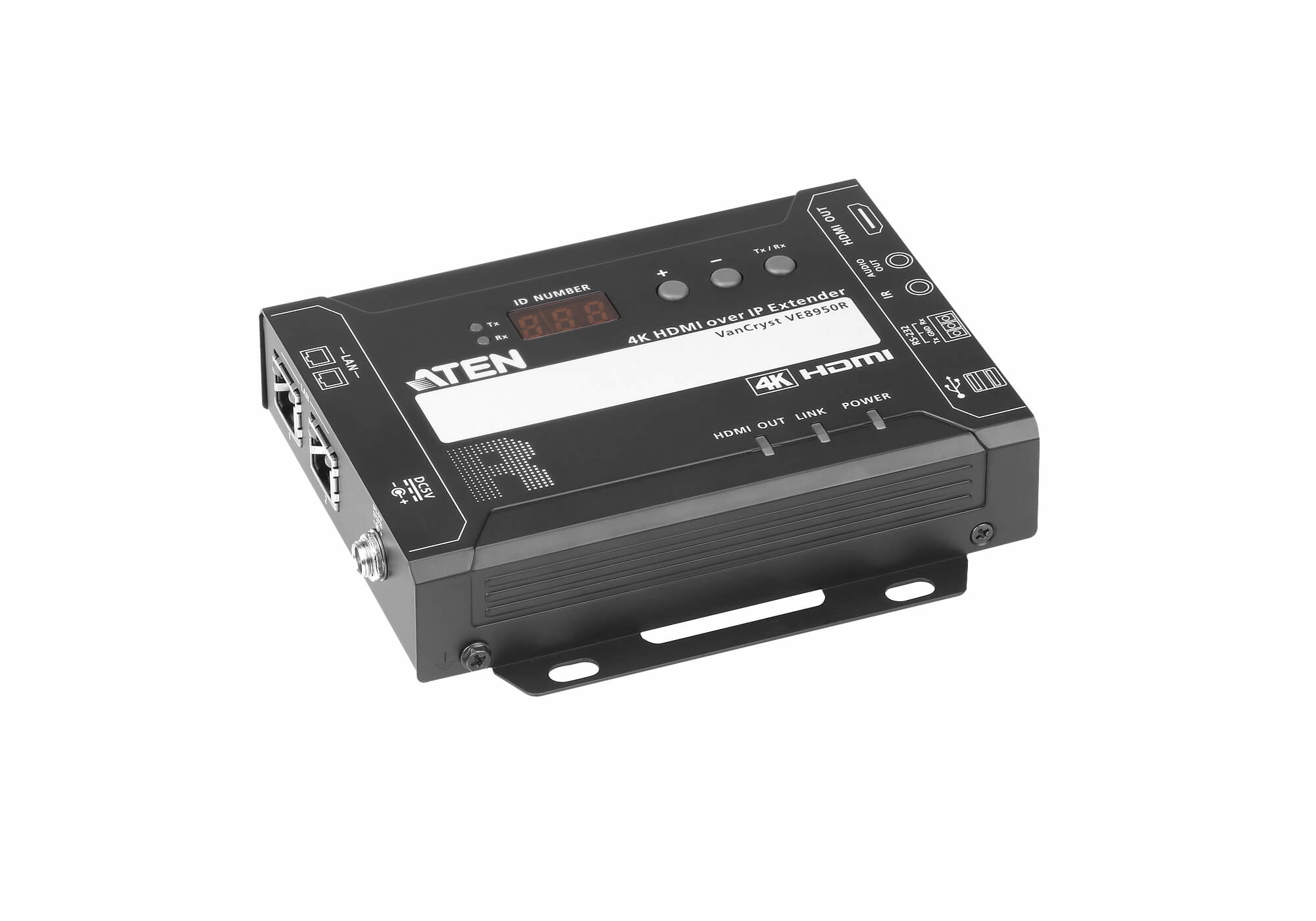

The ATEN VE8950R Video over IP Receiver delivers visually lossless 4K AV signals with low latency over long distance via a local network of standard Gigabit network switch*.
The VE8950R provides an effective, easy-to-use, and economical digital signage solution with the following features and advantages that directly address the challenges system integrators encounter when implementing AV over IP systems:
- Limitless scalability and flexibility
- No complicated IP setup
- No additional server PCs or software required required
- Go further for less with daisy chaining
Engineered to meet today’s demands of large scale, multi-display, 4K signal transmission, and designed to be easy to set up and operate, the VE8950R Video over IP Receiver is an ideal product for a wide range of environments, such as trade shows, airports, university campuses, conference centers, and shopping centers.
Package Contents
- 1x VE8950R 4K HDMI over IP Receiver
- 1x RS-232 Terminal block
- 1x 5V Power adapter
- 1x User instructions
Specs
| Technical details |
| Compliance certificates |
RoHS |
| Ports & interfaces |
| Connectivity technology |
Wired |
| RJ-45 input ports |
1 |
| Number of HDMI outputs |
1 |
| USB ports quantity |
1 |
| USB version |
2.0 |
| USB connector type |
USB Type-A |
| Video out |
1 |
| Audio output |
1 |
| Serial ports quantity |
1 |
| Serial interface type |
RS-232 |
| Remote (IR) output |
1 |
| DC-in jack |
Yes |
| Weight & dimensions |
| Width |
136 mm |
| Depth |
101 mm |
| Height |
29.6 mm |
| Weight |
490 g |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Power |
| Operating voltage |
5 V |
| Power consumption (typical) |
4.53 W |
| External power adapter |
Yes |
| Packaging content |
| AC adapter included |
Yes |
| Manual |
Yes |
| Features |
| Type |
AV receiver |
| Maximum resolution |
4096 x 2160 pixels |
| Cable types supported |
Cat5e, Cat6 |
| Maximum transfer distance |
100 m |
| Audio system |
stereo |
| LED indicators |
Yes |
| Supported video modes |
1080p, 2160p |
| Supported graphics resolutions |
1920 x 1080 (HD 1080), 3840 x 2160, 4096 x 2160 |
| HDCP |
Yes |
| Material |
Metal |
| Control type |
Buttons |
| Firmware upgradeable |
Yes |
| Baud rate |
19.2 Kbit/s |
| Impedance |
100 Ω |
| Daisy chain |
Yes |
| Product colour |
Black |
Features
ATEN VE8950R. Type: AV receiver, Maximum resolution: 4096 x 2160 pixels, Cable types supported: Cat5e, Cat6. Connectivity technology: Wired, USB connector type: USB Type-A, Serial interface type: RS-232. Operating voltage: 5 V, Power consumption (typical): 4.53 W. Width: 136 mm, Depth: 101 mm, Height: 29.6 mm
Product Description
The ATEN VE8950R Video over IP Receiver delivers visually lossless 4K AV signals with low latency over long distance via a local network of standard Gigabit network switch*.
The VE8950R provides an effective, easy-to-use, and economical digital signage solution with the following features and advantages that directly address the challenges system integrators encounter when implementing AV over IP systems:
- Limitless scalability and flexibility
- No complicated IP setup
- No additional server PCs or software required required
- Go further for less with daisy chaining
Engineered to meet today’s demands of large scale, multi-display, 4K signal transmission, and designed to be easy to set up and operate, the VE8950R Video over IP Receiver is an ideal product for a wide range of environments, such as trade shows, airports, university campuses, conference centers, and shopping centers.
Package Contents
- 1x VE8950R 4K HDMI over IP Receiver
- 1x RS-232 Terminal block
- 1x 5V Power adapter
- 1x User instructions
