Stock Status: 1x unit in stock

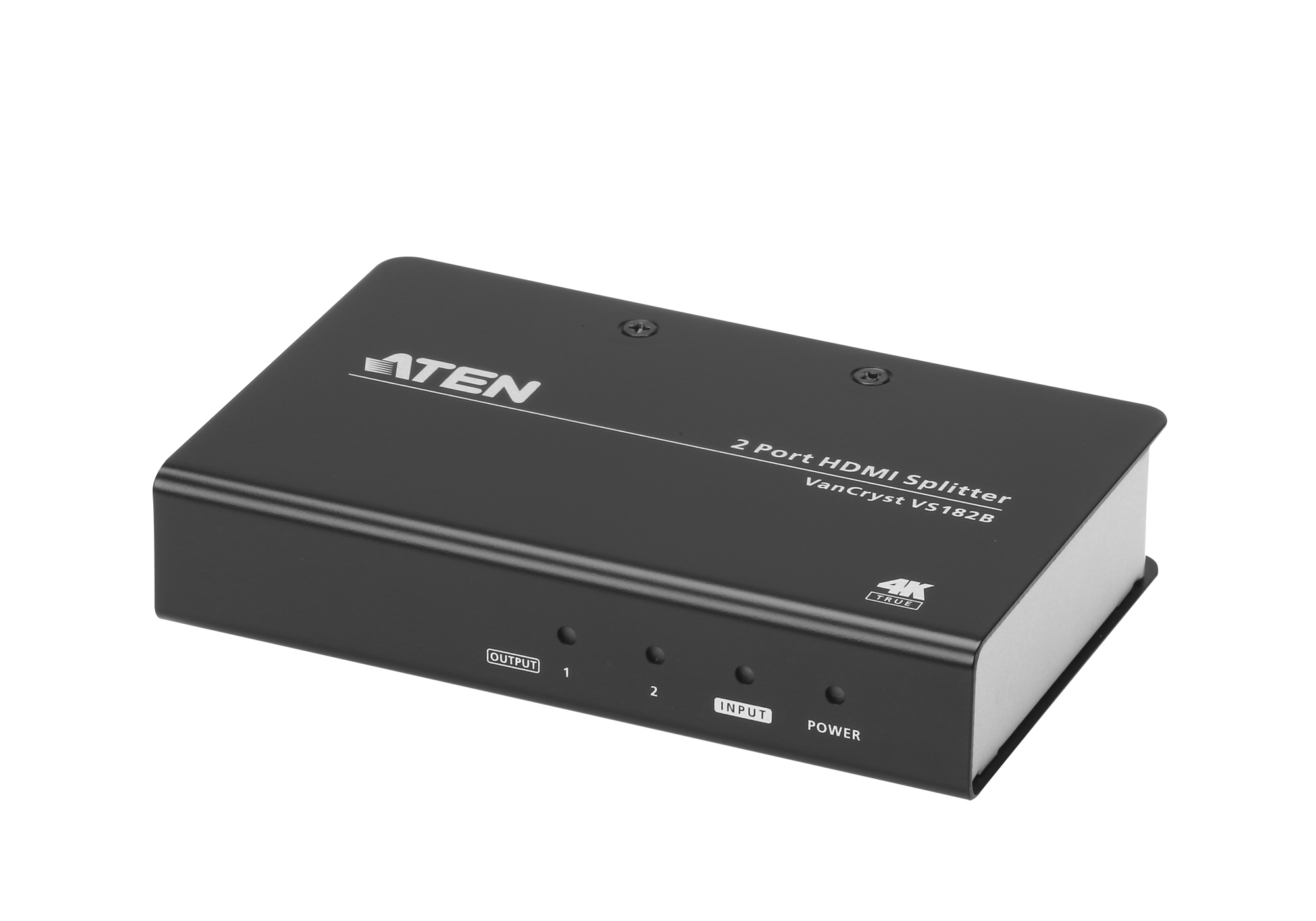

The VS182B True 4K HDMI Splitter is the perfect solution for anyone who needs to send one source of digital high definition video to two displays at the same time. It supports all HDMIenabled equipment, such as DVD players, satellite set- top boxes and all HDMI monitors, displays, projectors, or TVs.
The VS182B True 4K HDMI Splitter is HDMI 2.0 compliant, 4K at 60Hz (4:4:4), and supports multiple streaming audio, making it effective for use with all HDMI displays in home theater applications, as well as in corporate, educational and commercial settings.
Specs
| Packaging content |
| Cables included |
AC, HDMI |
| User guide |
Yes |
| Ports & interfaces |
| Video ports quantity |
3 |
| Video port type |
HDMI |
| Video out |
2x HDMI |
| Audio ports quantity |
3 |
| Weight & dimensions |
| Dimensions (WxDxH) |
80 x 125 x 250 mm |
| Weight |
320 g |
| Power |
| AC input voltage |
5 V |
| Power consumption (typical) |
4.25 W |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
0 - 80% |
| Logistics data |
| Harmonized System (HS) code |
85176990 |
| Features |
| Maximum resolution |
4096 x 2160 pixels |
| Product colour |
Silver, Black |
| Housing material |
Metal |
| Maximum operating distance |
15 m |
| HDCP |
Yes |
| Supported graphics resolutions |
1920 x 1200 (WUXGA), 3840 x 2160, 4096 x 2160 |
| Plug and Play |
Yes |
Related Products
|
ATEN VM0202HB 2 X 2 - Video/audio Switch - Desktop, Rack-mountable - For VanCryst VS182B VM0202HB - C2000
|
|
ATEN VanCryst VM0404HB 4 X 4 True 4K HDMI Matrix Switch - Video/audio Switch - Desktop, Rack-mountable VM0404HB - C2000
|
|
ATEN CE 820 - KVM / Audio / Serial / USB / Network Extender - HDBaseT 2.0 - USB - Up To 150 M - For VanCryst VS182B CE820 - C2000
|
|
ATEN VS482B - Video/audio Switch - 4 X HDMI - Desktop, Rack-mountable - For VanCryst VS182B, VS184B VS482B - C2000
|
|
ATEN CS1824 KVMP Switch - KVM / Audio / USB Switch - 4 X KVM / Audio / USB - 1 Local User - Desktop - For VanCryst VS182B CS1824 - C2000
|
|
ATEN CS1822 KVMP Switch - KVM / Audio / USB Switch - 2 X KVM / Audio / USB - 1 Local User - Desktop - For VanCryst VS182B CS1822 - C2000
|
|
ATEN VanCryst VS184B - Video/audio Splitter - 4 X HDMI - Desktop - For VanCryst VS182B, VS184B VS184B - C2000
|
|
ATEN VanCryst VM0808HB 8 X 8 True 4K HDMI Matrix Switch - Video/audio Switch - Desktop, Rack-mountable VM0808HB - C2000
|
|
ATEN VanCryst VE811 HDMI HDBaseT Extender - Transmitter And Receiver - Video/audio Extender - HDBaseT - Up To 150 M - For ATEN VM5404, VM5808, VanCryst VM0808, VM1600, VM3200, VM5404, VM6809, - C2000
|
Features
ATEN VS182B. Video port type: HDMI, Video out: 2x HDMI. Maximum resolution: 4096 x 2160 pixels, Product colour: Silver, Black, Housing material: Metal. AC input voltage: 5 V, Power consumption (typical): 4.25 W. Dimensions (WxDxH): 80 x 125 x 250 mm, Weight: 320 g. Cables included: AC, HDMI
Product Description
The VS182B True 4K HDMI Splitter is the perfect solution for anyone who needs to send one source of digital high definition video to two displays at the same time. It supports all HDMIenabled equipment, such as DVD players, satellite set- top boxes and all HDMI monitors, displays, projectors, or TVs.
The VS182B True 4K HDMI Splitter is HDMI 2.0 compliant, 4K at 60Hz (4:4:4), and supports multiple streaming audio, making it effective for use with all HDMI displays in home theater applications, as well as in corporate, educational and commercial settings.
