Stock Status: 1x unit in stock

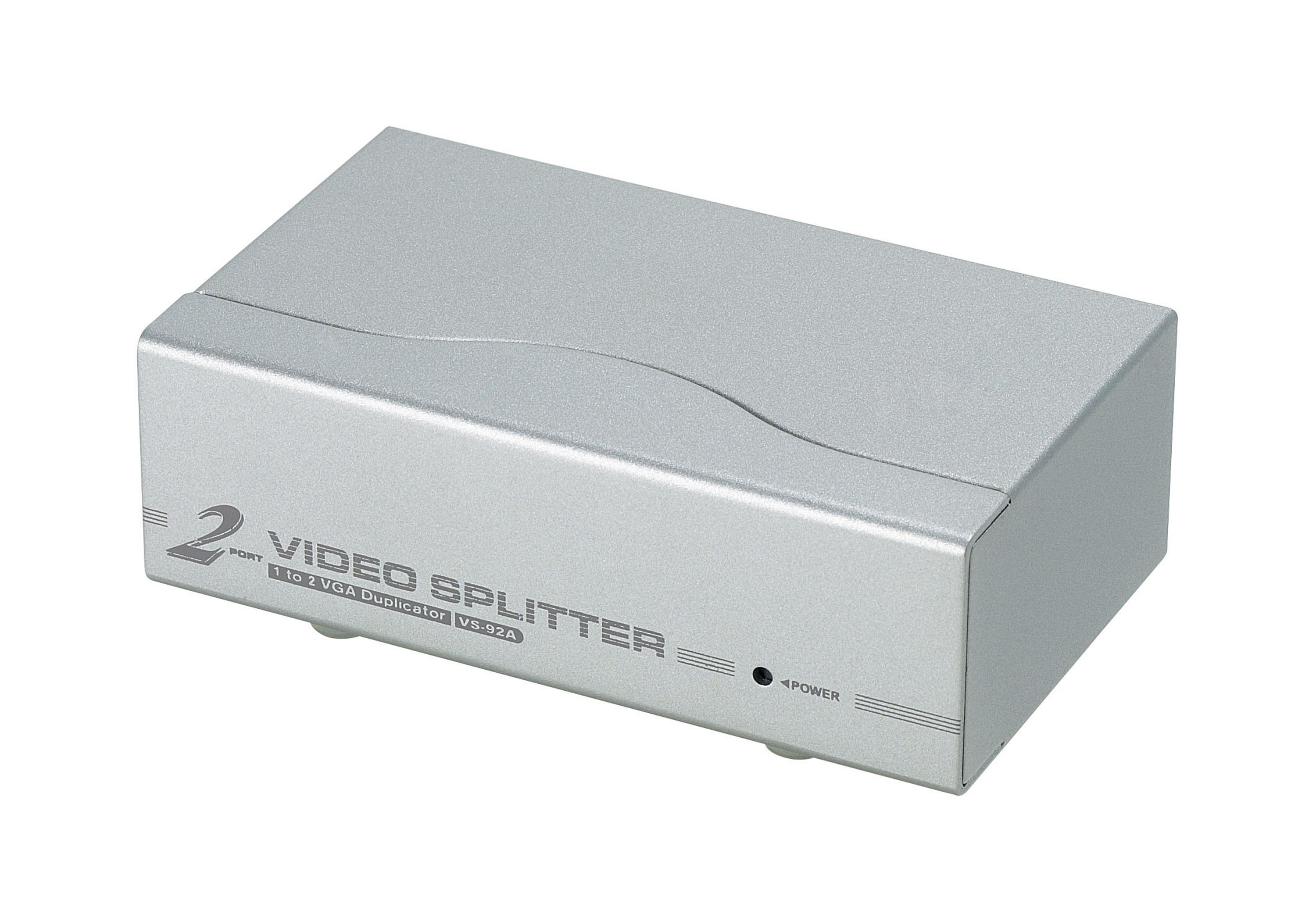

The VS92A is a video splitter that not only duplicates the video signal from any VGA, XGA, SVGA, UXGA, or multisync monitor to two outputs, but also boosts the video signal over a distance of up to 30 meters. Cascadable to support up to 8 displays, and offering bandwidth up to 350 MHz, the VS92A is ideal for broadcasting and enhancing video information to the public, monitoring your work environments from safe locations, or offering superior video for company or classroom training.
Specs
| Packaging content |
| Manual |
Yes |
| Ports & interfaces |
| Video ports quantity |
2 |
| Video port type |
VGA |
| Video out |
2x VGA |
| Ethernet LAN (RJ-45) ports |
0 |
| Audio ports quantity |
0 |
| Connector(s) |
HDB-15 |
| Serial ports quantity |
0 |
| Weight & dimensions |
| Dimensions (WxDxH) |
130 x 75 x 45 mm |
| Weight |
420 g |
| Power |
| Power consumption (typical) |
0.85 W |
| USB powered |
No |
| Operational conditions |
| Operating temperature (T-T) |
0 - 50 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
0 - 85% |
| Logistics data |
| Harmonized System (HS) code |
85176990 |
| Features |
| Maximum resolution |
1920 x 1440 pixels |
| Product colour |
Silver |
| 3D |
No |
| Maximum operating distance |
65 m |
| Bandwidth |
350 MHz |
| Remote control included |
No |
| HDCP |
No |
| Power LED |
Yes |
| Network |
| Ethernet LAN |
No |
Features
ATEN AT-VS92AUK. Video port type: VGA, Video out: 2x VGA, Connector(s): HDB-15. Maximum resolution: 1920 x 1440 pixels, Product colour: Silver, Maximum operating distance: 65 m. Power consumption (typical): 0.85 W. Dimensions (WxDxH): 130 x 75 x 45 mm, Weight: 420 g
Product Description
The VS92A is a video splitter that not only duplicates the video signal from any VGA, XGA, SVGA, UXGA, or multisync monitor to two outputs, but also boosts the video signal over a distance of up to 30 meters. Cascadable to support up to 8 displays, and offering bandwidth up to 350 MHz, the VS92A is ideal for broadcasting and enhancing video information to the public, monitoring your work environments from safe locations, or offering superior video for company or classroom training.
