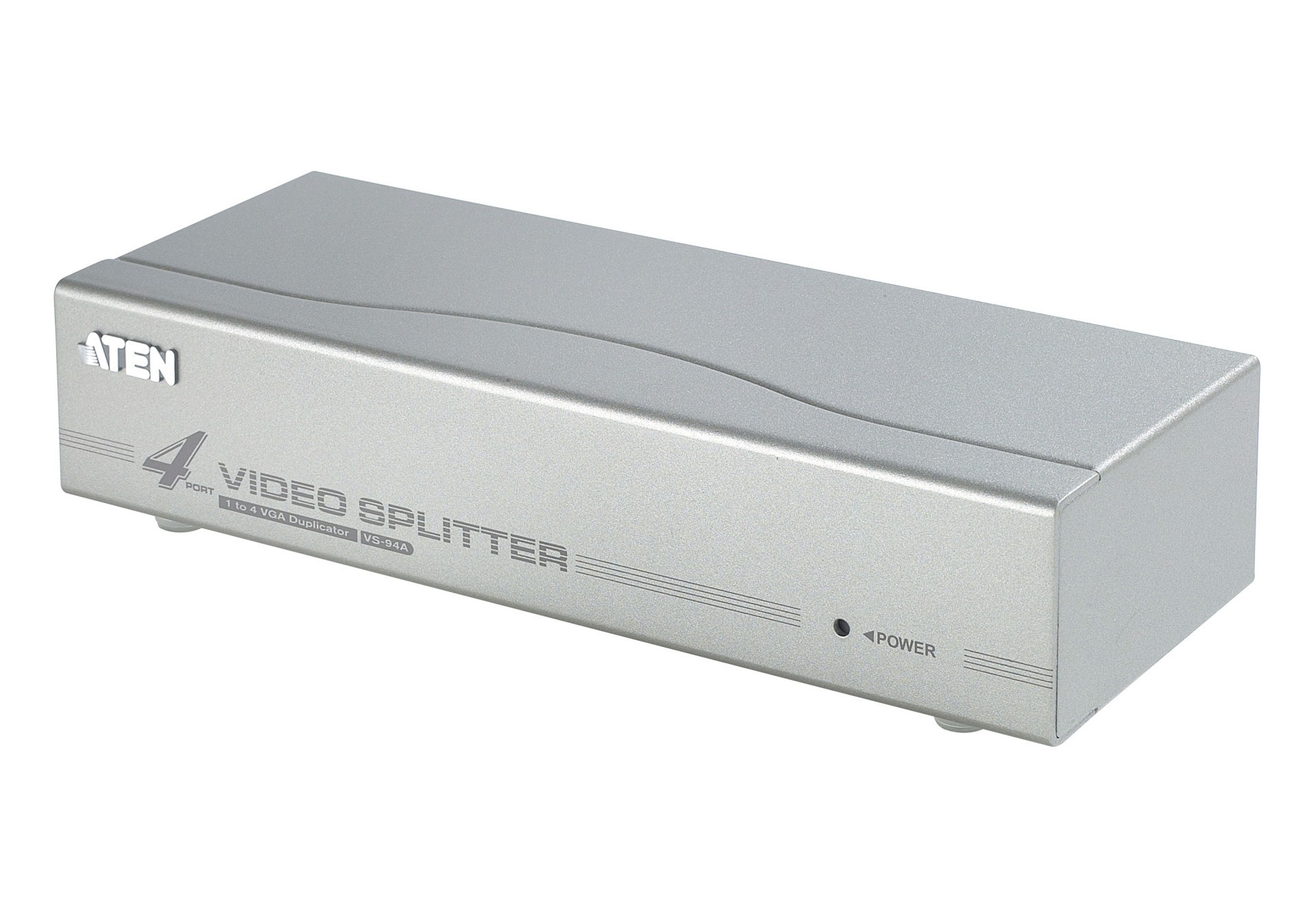

The VS94A is a video splitter that not only duplicates the video signal from any VGA, XGA, SVGA, UXGA, or multisync monitor to four outputs, but also boosts the video signal over a distance of up to 30 meters. Cascadable to support up to 64 displays, and offering bandwidth up to 350 MHz, the VS94A is ideal for broadcasting and enhancing video information to the public, monitoring your work environments from safe locations, or offering superior video for company or classroom training.
Specs
| Packaging content |
| User guide |
Yes |
| AC adapter included |
Yes |
| Ports & interfaces |
| Video ports quantity |
4 |
| Video port type |
VGA |
| Video out |
4x VGA |
| Video in |
1 x HDB-15 Male (Blue) |
| DC-in jack |
Yes |
| Weight & dimensions |
| Dimensions (WxDxH) |
200 x 75.1 x 44 mm |
| Weight |
610 g |
| Power |
| AC input voltage |
9 V |
| Power consumption (typical) |
2.03 W |
| Operational conditions |
| Operating temperature (T-T) |
0 - 50 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
0 - 80% |
| Logistics data |
| Harmonized System (HS) code |
85176990 |
| Features |
| Maximum resolution |
1920 x 1400 pixels |
| Full HD |
Yes |
| Maximum operating distance |
30 m |
| Bandwidth |
350 MHz |
| Rack mounting |
Yes |
| Windows operating systems supported |
Yes |
| Mac operating systems supported |
Yes |
| Mac compatibility |
Yes |
Features
ATEN VS94A. Video port type: VGA, Video out: 4x VGA, Video in: 1 x HDB-15 Male (Blue). Maximum resolution: 1920 x 1400 pixels, Maximum operating distance: 30 m, Bandwidth: 350 MHz. AC input voltage: 9 V, Power consumption (typical): 2.03 W. Dimensions (WxDxH): 200 x 75.1 x 44 mm, Weight: 610 g
Product Description
The VS94A is a video splitter that not only duplicates the video signal from any VGA, XGA, SVGA, UXGA, or multisync monitor to four outputs, but also boosts the video signal over a distance of up to 30 meters. Cascadable to support up to 64 displays, and offering bandwidth up to 350 MHz, the VS94A is ideal for broadcasting and enhancing video information to the public, monitoring your work environments from safe locations, or offering superior video for company or classroom training.
