Stock Status: 1x unit in stock
The ideal solution for education, conferencing, telemedicine, livestreaming & broadcasting!
PTZ Camera Controller

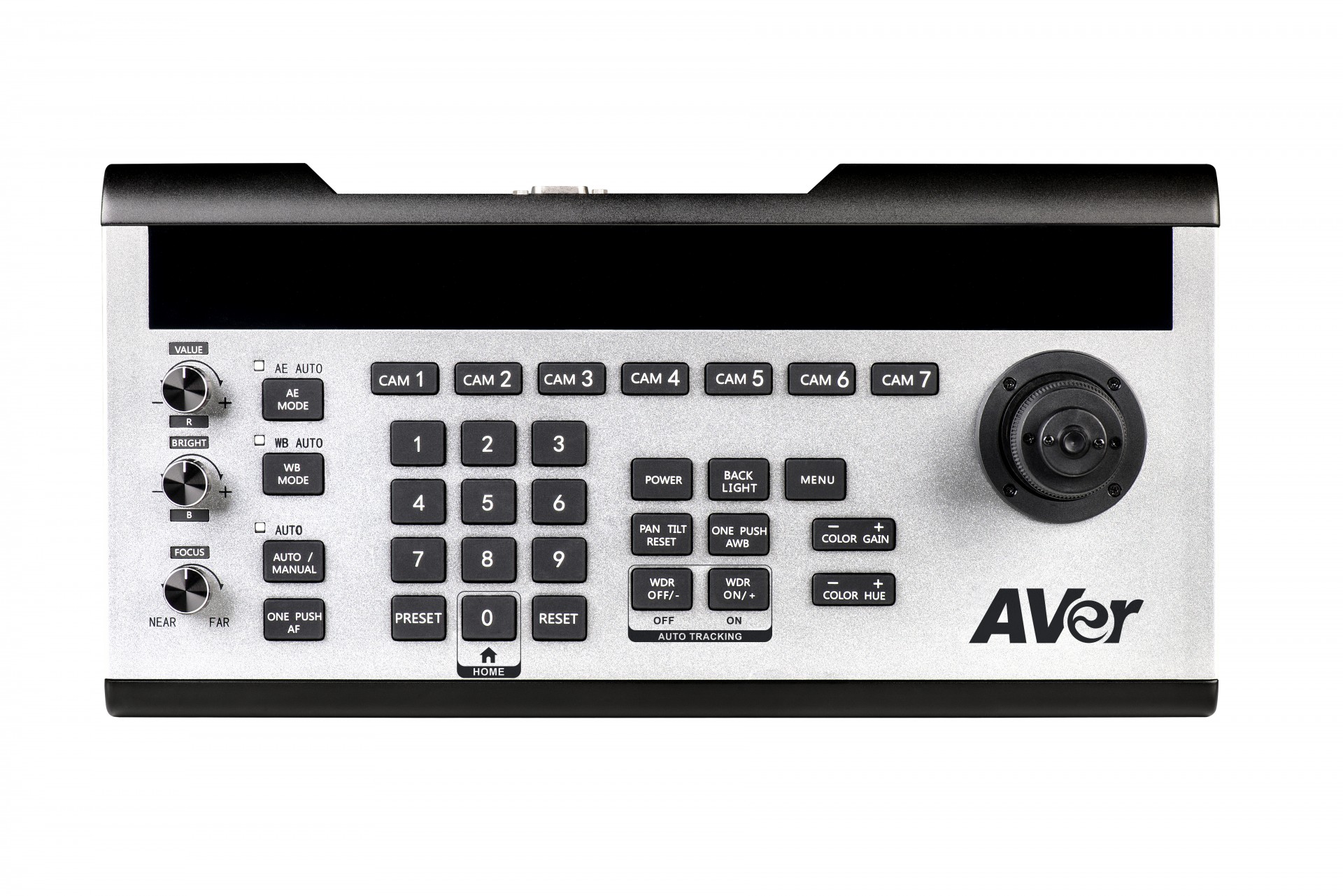

The AVer CL01 is a professional PTZ camera controller with a robust communication interface, built-in VISCA and Pelco-D/P protocols. It supports RS-422 / RS-485 / RS-232 / IP control for compatibility with most PTZ cameras. Simple configuration makes it easy to operate the 7 camera shortcut channels, 3 infinite rotation knobs, and more.
Specs
| Packaging data |
| Package width |
210 mm |
| Package depth |
175 mm |
| Package height |
385 mm |
| Package weight |
2.82 kg |
| Weight & dimensions |
| Width |
350 mm |
| Depth |
180 mm |
| Height |
130 mm |
| Weight |
2.45 kg |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Display |
| Built-in display |
Yes |
| Display type |
OLED |
| Networking |
| Ethernet LAN |
Yes |
| Packaging content |
| Cables included |
RS-485 |
| AC adapter included |
Yes |
| Manual |
Yes |
| Design |
| Product colour |
Black, Silver |
| Control type |
Buttons, Joystick, Rotary |
| Power |
| Power source type |
DC |
| Power consumption (max) |
24 W |
| DC input voltage |
12 V |
| Input current (max) |
2 A |
| Ports & interfaces |
| RJ-45 ports quantity |
1 |
| RS-232 ports |
1 |
| Micro-USB ports quantity |
1 |
| DC-in jack |
Yes |
| RS-422/485 ports |
1 |
| Performance |
| Maximum number of cameras supported |
7 |
| Logistics data |
| Country of origin |
China |
| Products per master (outer) case |
1 pc(s) |
| Features |
| Baud rates |
384000 Bd |
| Firmware upgradeable |
Yes |
Features
AVer CL01. Display type: OLED. Product colour: Black, Silver, Control type: Buttons, Joystick, Rotary. Country of origin: China, Products per master (outer) case: 1 pc(s). Baud rates: 384000 Bd. Power source type: DC, Power consumption (max): 24 W, DC input voltage: 12 V
Product Description
The ideal solution for education, conferencing, telemedicine, livestreaming & broadcasting!
PTZ Camera Controller
The AVer CL01 is a professional PTZ camera controller with a robust communication interface, built-in VISCA and Pelco-D/P protocols. It supports RS-422 / RS-485 / RS-232 / IP control for compatibility with most PTZ cameras. Simple configuration makes it easy to operate the 7 camera shortcut channels, 3 infinite rotation knobs, and more.
