Stock Status: 1x unit in stock

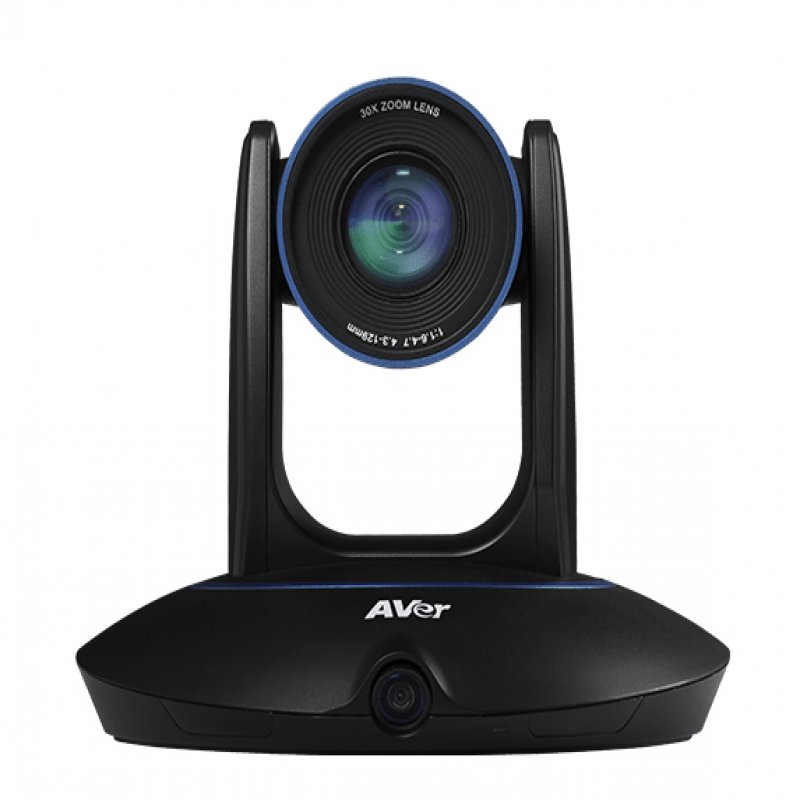

Professional Auto Tracking Camera
The PTC500+ integrates auto tracking, Multi-Presenter Detection, and streaming with a superior dual lens tracking design.
Boasting a PTZ camera with a powerful 30X optical zoom and a secondary 120° FOV panoramic camera, the PTC500+ stably captures Full HD 1080p video without the need for a camera operator.
USB Connectivity Rocks!
Are you ready to experience plug-and-play video streaming? New USB connectivity for the PTC500+ allows you to shift from audience mode to presenter mode during a video conferencing session. Also, unparalleled UVC and UAC protocols make these cameras compatible with popular streaming and broadcasting software so you can go live anytime.
Up to 30X Optical Zoom
Featuring a PTZ camera with market-leading 30X optical zoom, the PTC500+ sports a 350° pan and 120° tilt radius that are perfectly suited for large classrooms or auditoriums. Full HD 1080p 60fps video and a powerful remote autofocus function track the moving presenter more precisely and display important details more distinctly. Capture the full joy of the classroom with the most realistic and dynamic image quality.
No Extra Devices Needed
Exclusive algorithms enable the PTC500+ to automatically track a presenter’s face and movements. Speakers are free to walk around the classroom without wearing any accessories to give guidance and solve problems for students, ensuring quality education. With no need to worry about the connection restrictions, charging security, or added expense of a wearable device, you can focus on building zero-distance interactive teaching.
Dual Lens Design
A dual lens design integrates a PTZ camera with a super-wide 120° FOV secondary camera to track the speaker and capture a panoramic view of the classroom at the same time. Also, enable and adjust PIP mode while capturing to simultaneously view the speaker and the rest of the room. Clearly present every detail of the lesson and never miss a teachable moment.
Multi-Presenter Detection
Multi-Presenter Detection accurately helps when there are two or more people in the effective area. This feature allows the camera to continue tracking when teachers conduct group discussions, interactive games, and more in front of the class. Use one camera to capture every detail of every learning situation.
Wide Area Tracking
Capture Every Interaction
Track your target everywhere with Wide Area Tracking. This feature provides presenters the flexibility to leave the stage and interact with a crowd or students, all while being continuously tracked even if obscured by other people or objects.
Specs
| Weight & dimensions |
| Width |
296 mm |
| Depth |
250 mm |
| Height |
256 mm |
| Weight |
7.17 kg |
| Packaging data |
| Package width |
312 mm |
| Package depth |
286 mm |
| Package height |
520 mm |
| Package weight |
8 kg |
| Camera |
| Megapixel (approx.) |
2 MP |
| Camera type |
Dual camera |
| Second camera resolution |
2 MP |
| Sensor type |
CMOS |
| Optical sensor size |
25.4 / 2.8 mm (1 / 2.8") |
| Optical zoom |
30x |
| Digital zoom |
12x |
| Sensor zoom |
1x |
| Focal length range |
4.3 - 129 mm |
| Horizontal field of view (wide) |
65° |
| Horizontal field of view (tele) |
2.3° |
| Vertical field of view (wide) |
38° |
| Vertical field of view (tele) |
1.3° |
| Minimum illumination |
0.23 lx |
| Signal-to-Noise Ratio (SNR) |
50 dB |
| White balance |
Auto, Manual |
| Auto exposure |
Yes |
| Light exposure modes |
Manual, Shutter priority AE |
| Closest focusing distance |
0.1 m |
| Gain control type |
Auto/Manual |
| Slowest camera shutter speed |
0.2 s |
| Fastest camera shutter speed |
1/32000 s |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
20 - 80% |
| Storage relative humidity (H-H) |
20 - 95% |
| Power |
| Power source type |
AC, PoE |
| AC input voltage |
110 - 220 V |
| Operating voltage |
12 V |
| Operating current |
5 A |
| Power consumption (typical) |
24 W |
| Video |
| Maximum video resolution |
1920 x 1080 pixels |
| Maximum frame rate |
60 fps |
| HD type |
Full HD |
| Supported video modes |
720p, 1080i, 1080p |
| Video formats supported |
H.264, M-JPEG |
| Number of TV lines |
900 |
| Ports & interfaces |
| HDMI ports quantity |
1 |
| RS-232 ports |
1 |
| 3G-SDI output |
Yes |
| Line-in |
Yes |
| Design |
| Product colour |
Black |
| Tilt angle range |
-30 - 90° |
| Pan range |
-175 - 175° |
| Web-based management |
Yes |
| Tilt speed (min) |
2 °/sec |
| Tilt speed (max) |
50 °/sec |
| Pan speed (min) |
2 °/sec |
| Pan speed (max) |
50 °/sec |
| Country of origin |
Taiwan |
| Packaging content |
| Mounting kit |
Yes |
| System requirements |
| Windows operating systems supported |
Windows 10, Windows 7, Windows 8, Windows 8.1 |
| Mac operating systems supported |
Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur |
| Performance |
| Remote control function |
Yes |
| Remote control type |
IR |
| Cable lock slot |
Yes |
| Cable lock slot type |
Kensington |
| Audio |
| Noise reduction |
Yes |
| Supported sample rates |
48 kHz |
| Audio codecs |
AAC-LC, G.711 |
| Network |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Bit rate control |
Constant Bit Rate (CBR) |
| Supported network protocols |
IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, DHCP, RTP/RTCP, RTSP, RTMP, VISCA Over IP, ONVIF |
| Logistics data |
| Products per master (outer) case |
2 pc(s) |
| Products per pallet |
48 pc(s) |
| Harmonized System (HS) code |
8525890000 |
Features
AVer PTC500+. Megapixel (approx.): 2 MP, Sensor type: CMOS. HD type: Full HD, Maximum video resolution: 1920 x 1080 pixels, Supported video modes: 720p, 1080i, 1080p, Maximum frame rate: 60 fps. Optical zoom: 30x, Digital zoom: 12x. Product colour: Black
Product Description
Professional Auto Tracking Camera
The PTC500+ integrates auto tracking, Multi-Presenter Detection, and streaming with a superior dual lens tracking design.
Boasting a PTZ camera with a powerful 30X optical zoom and a secondary 120° FOV panoramic camera, the PTC500+ stably captures Full HD 1080p video without the need for a camera operator.
USB Connectivity Rocks!
Are you ready to experience plug-and-play video streaming? New USB connectivity for the PTC500+ allows you to shift from audience mode to presenter mode during a video conferencing session. Also, unparalleled UVC and UAC protocols make these cameras compatible with popular streaming and broadcasting software so you can go live anytime.
Up to 30X Optical Zoom
Featuring a PTZ camera with market-leading 30X optical zoom, the PTC500+ sports a 350° pan and 120° tilt radius that are perfectly suited for large classrooms or auditoriums. Full HD 1080p 60fps video and a powerful remote autofocus function track the moving presenter more precisely and display important details more distinctly. Capture the full joy of the classroom with the most realistic and dynamic image quality.
No Extra Devices Needed
Exclusive algorithms enable the PTC500+ to automatically track a presenter’s face and movements. Speakers are free to walk around the classroom without wearing any accessories to give guidance and solve problems for students, ensuring quality education. With no need to worry about the connection restrictions, charging security, or added expense of a wearable device, you can focus on building zero-distance interactive teaching.
Dual Lens Design
A dual lens design integrates a PTZ camera with a super-wide 120° FOV secondary camera to track the speaker and capture a panoramic view of the classroom at the same time. Also, enable and adjust PIP mode while capturing to simultaneously view the speaker and the rest of the room. Clearly present every detail of the lesson and never miss a teachable moment.
Multi-Presenter Detection
Multi-Presenter Detection accurately helps when there are two or more people in the effective area. This feature allows the camera to continue tracking when teachers conduct group discussions, interactive games, and more in front of the class. Use one camera to capture every detail of every learning situation.
Wide Area Tracking
Capture Every Interaction
Track your target everywhere with Wide Area Tracking. This feature provides presenters the flexibility to leave the stage and interact with a crowd or students, all while being continuously tracked even if obscured by other people or objects.
