| Wireless LAN features |
| Wi-Fi band |
Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard |
Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (max) |
5400 Mbit/s |
| Wi-Fi standards |
Wi-Fi 4 (802.11n), 802.11b, 802.11a, 802.11g, Wi-Fi 5 (802.11ac) |
| WLAN data transfer rate (first band) |
4804 Mbit/s |
| WLAN data transfer rate (second band) |
574 Mbit/s |
| Modulation |
1024-QAM, OFDM |
| Ports & interfaces |
| Ethernet LAN (RJ-45) ports |
4 |
| USB port |
Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
1 |
| Networking |
| Ethernet LAN |
Yes |
| Ethernet LAN interface type |
Gigabit Ethernet |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Cabling technology |
10/100/1000Base-T(X) |
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g |
| Port forwarding |
Yes |
| Port triggering |
Yes |
| Dynamic DNS (DDNS) |
Yes |
| Number of guest networks (2.4 GHz) |
1 |
| Number of guest networks (5 GHz) |
1 |
| Support Samba (storage) |
Yes |
| Built-in FTP server |
Yes |
| Media server |
Yes |
| Protocols |
| DHCP client |
Yes |
| Universal Plug and Play (UPnP) |
Yes |
| Supported network protocols |
IPv4, IPv6 |
| Antenna |
| Antenna design |
External |
| Antennas quantity |
6 |
| Management features |
| Web-based management |
Yes |
| Quality of Service (QoS) support |
Yes |
| Reset button |
Yes |
| WPS push button |
Yes |
| MU-MIMO technology |
Yes |
| Security |
| Security algorithms |
WPA, WPA-Enterprise, WPA2, WPA2-Enterprise, WPA3 |
| Firewall |
Yes |
| Access Control List (ACL) |
Yes |
| Stateful Packet Inspection (SPI) |
Yes |
| DoS attack prevention |
Yes |
| Parental control |
Yes |
| Filtering |
Yes |
| MAC address filtering |
Yes |
| IP address filtering |
Yes |
| DMZ support |
Yes |
| Network address translation (NAT) |
Yes |
| Power |
| Power source type |
DC |
| Output voltage |
12 V |
| Output current |
2.5 A |
| Weight & dimensions |
| Width |
272.5 mm |
| Depth |
147.2 mm |
| Height |
49.2 mm |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
5 - 90% |
| Design |
| Product type |
Portable router |
| Product colour |
Black |
| On/off switch |
Yes |
| Features |
| Built-in processor |
Yes |
| Processor frequency |
1500 MHz |
| Processor cores |
3 |
| Firmware upgradeable |
Yes |
| WAN connection |
| Ethernet WAN |
Yes |
| DSL WAN |
No |
| SIM card slot |
No |
| 3G/4G USB modem compatibility |
No |
| WAN connection type |
RJ-45 |
| Logistics data |
| Quantity per pack |
1 pc(s) |
| Harmonized System (HS) code |
85176990 |
| Country of origin |
Malaysia |
| Packaging data |
| Package width |
124 mm |
| Package depth |
310 mm |
| Package height |
38 mm |
| Package weight |
800 g |
| Certification |
| Compliance certificates |
RoHS, Federal Communications Commission (FCC), CE |
| Packaging content |
| Cables included |
LAN (RJ-45) |
| AC adapter included |
Yes |
| Quick installation guide |
Yes |
| Packaging content |

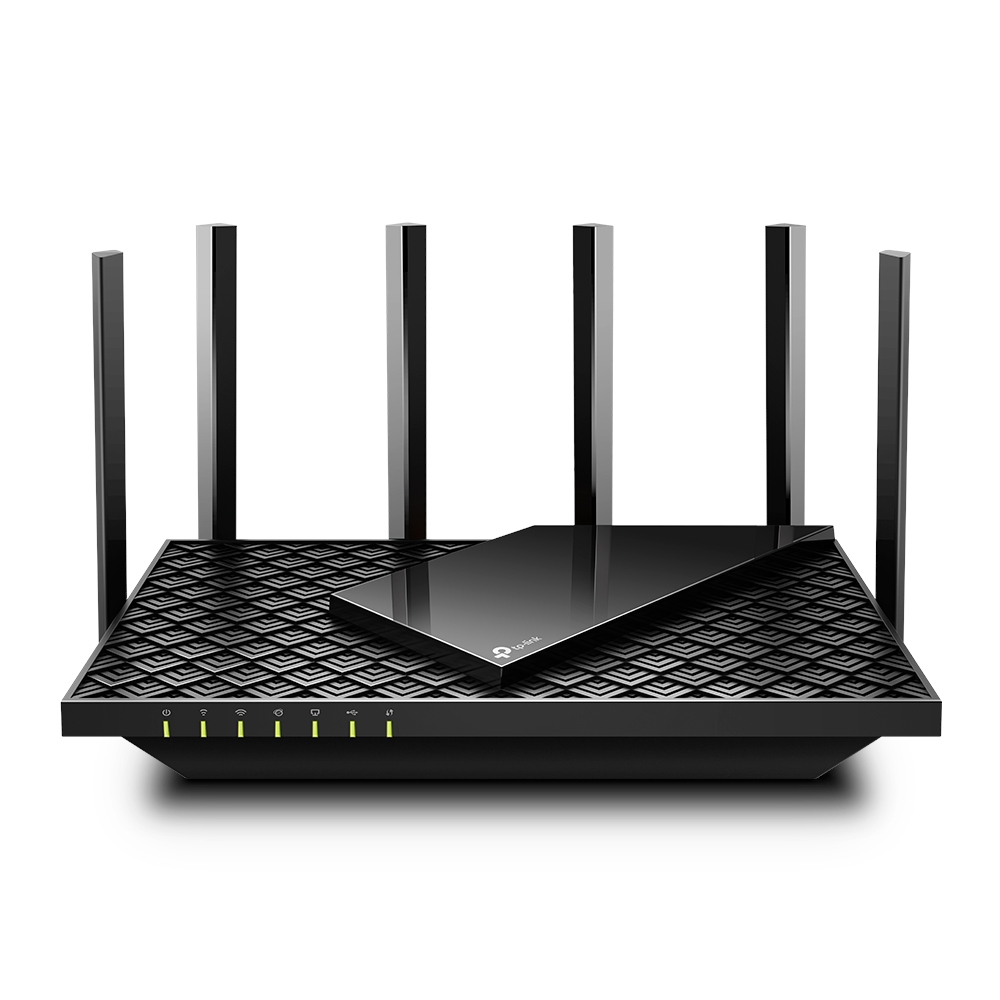

1 x TP-Link Archer AX5400 Dual-Band Gigabit Wi-Fi 6 Router, Black |
| Sustainability |
| Sustainability compliance |
Yes |
