Stock Status: 1x unit in stock
Immersive Entertainment
Ready for demanding interactive projection projects
BenQ Immersive Entertainment Projector Series
Installer Ready
Simulation-grade visual system, factory-tuned for accuracy
*Preset configuration. Automatic edge blending software not included. Additional software or hardware is required to complete edge blending.
Blending Ready Mode
One-click preset in the OSD that applies key settings to prepare images for multi-projector blending.
* Preset configuration. Automatic edge blending software not included. Additional software or hardware is required to complete edge blending.
Brilliant visuals with accurate colour and stable performance
The LH860ST delivers brilliant image clarity and stable performance across every detail—from vivid Rec.709 colour and high contrast to 5000-lumen brightness and 20,000-hour laser life.
BenQ WBA for Seamless Multi-Projector White Calibration
BenQ’s factory white balance adjustment (WBA) reduce variables between images projected from different projectors, significantly reducing manual calibration effort. It can save up to a full day of setup time in large-scale installations while ensuring seamless multi-projector alignment for edge blending.
Full Flexibility for Ceilings, Walls and Floors
Design for Compact Setups and Ceilings
Dust Protection and Easy Maintenance
1. IP6X Sealed Engine Design
Shields the projector’s optical engine from dust intrusion, ensuring long-term stability and reliable performance.
2. Optional Air Filter for Extra Protection
Provides added protection in dusty environments and helps extend projector life.
3. Auto Reset Mechanism
Automatically tracks filter usage and resets the timer when a new filter is installed, without any manual setup.
IT Takes Control
Streamlined Device Management
Remote Monitoring and Diagnostics
Easily track projector status and diagnose issues remotely, eliminating frequent on-site visits.
Firmware Management Over Network
Easily update all projectors via LAN to keep firmware current without physical access.
Reliable Performance, Less Maintenance
Ensure long-term stability, freeing SI teams to focus on creative installations rather than routine upkeep.
Specs
| Weight & dimensions |
| Weight |
5.2 kg |
| Width |
343.8 mm |
| Depth |
265.5 mm |
| Height |
130.6 mm |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Projector |
| Projector brightness |
5000 ANSI lumens |
| Projection technology |
DLP |
| Projector native resolution |
1080p (1920x1080) |
| Contrast ratio (typical) |
3000000:1 |
| Native aspect ratio |
16:9 |
| Horizontal scan range |
15 - 135 kHz |
| Vertical scan range |
23 - 240 Hz |
| Keystone correction, horizontal |
±30° |
| Keystone correction, vertical |
±30° |
| Colour gamut |
93% |
| Video |
| Full HD |
Yes |
| 3D |
Yes |
| Supported graphics resolutions |
640 x 480 (VGA), 1920 x 1080 (HD 1080) |
| Video colour modes |
Bright cinema, Presentation, Sports, sRGB |
| Display |
| Built-in display |
No |
| Lens system |
| Zoom capability |
Yes |
| Zoom type |
Fixed |
| Throw ratio |
0.5 |
| Offset |
105% |
| Power |
| Power source |
AC |
| Power consumption (typical) |
281 W |
| Power consumption (standby) |
0.5 W |
| AC input voltage |
100-240 V |
| AC input frequency |
50/60 Hz |
| Cord length |
1.8 m |
| Ports & interfaces |
| VGA (D-Sub) ports quantity |
0 |
| HDMI ports quantity |
2 |
| DVI port |
No |
| Serial interface type |
RS-232 |
| HDMI version |
2.2 |
| DisplayPorts quantity |
1 |
| USB 2.0 Type-A ports quantity |
2 |
| Mini-USB 2.0 ports quantity |
1 |
| Audio (L/R) out |
1 |
| 3D sync port |
Yes |
| AC (power) in |
Yes |
| DC-in jack |
Yes |
| Audio Return Channel (ARC) |
Yes |
| Enhanced Audio Return Channel (eARC) |
Yes |
| Networking |
| Smart TV |
No |
| Ethernet LAN |
Yes |
| Wi-Fi |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| Wi-Fi standards |
802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Storage |
| Card reader integrated |
No |
| Packaging content |
| Remote control included |
Yes |
| Batteries included |
Yes |
| 3D glasses included |
Yes |
| Mounting brackets included |
Yes |
| Design |
| Product type |
Short throw projector |
| Market positioning |
Home cinema |
| Product colour |
Black |
| Multimedia |
| Built-in speaker(s) |
Yes |
| RMS rated power |
10 W |
| Number of built-in speakers |
1 |
| Features |
| Noise level |
36 dB |
| Interactive |
No |
| Noise level (economic mode) |
31 dB |
| HDCP |
Yes |
| International Protection (IP) code |
IPX5 |
| Light source |
| Light source type |
Laser |
| Service life of light source |
20000 h |
| Service life of light source (economic mode) |
30000 h |
Features

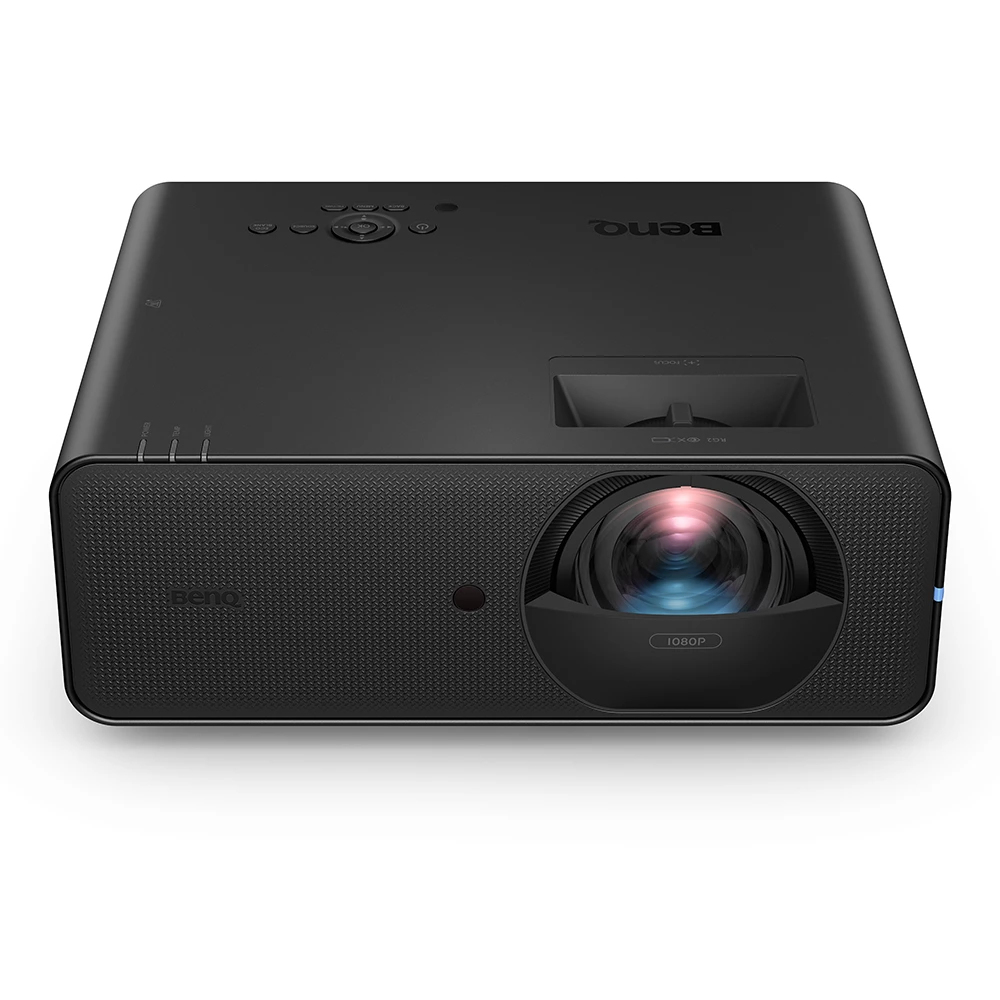

BenQ LH860ST. Projector brightness: 5000 ANSI lumens, Projection technology: DLP, Projector native resolution: 1080p (1920x1080). Light source type: Laser, Service life of light source: 20000 h, Service life of light source (economic mode): 30000 h. Zoom type: Fixed, Offset: 105%. Supported graphics resolutions: 640 x 480 (VGA), 1920 x 1080 (HD 1080), Video colour modes: Bright cinema, Presentation, Sports, sRGB. Serial interface type: RS-232
Product Description
Immersive Entertainment
Ready for demanding interactive projection projects
BenQ Immersive Entertainment Projector Series
Installer Ready
Simulation-grade visual system, factory-tuned for accuracy
*Preset configuration. Automatic edge blending software not included. Additional software or hardware is required to complete edge blending.
Blending Ready Mode
One-click preset in the OSD that applies key settings to prepare images for multi-projector blending.
* Preset configuration. Automatic edge blending software not included. Additional software or hardware is required to complete edge blending.
Brilliant visuals with accurate colour and stable performance
The LH860ST delivers brilliant image clarity and stable performance across every detail—from vivid Rec.709 colour and high contrast to 5000-lumen brightness and 20,000-hour laser life.
BenQ WBA for Seamless Multi-Projector White Calibration
BenQ’s factory white balance adjustment (WBA) reduce variables between images projected from different projectors, significantly reducing manual calibration effort. It can save up to a full day of setup time in large-scale installations while ensuring seamless multi-projector alignment for edge blending.
Full Flexibility for Ceilings, Walls and Floors
Design for Compact Setups and Ceilings
Dust Protection and Easy Maintenance
1. IP6X Sealed Engine Design
Shields the projector’s optical engine from dust intrusion, ensuring long-term stability and reliable performance.
2. Optional Air Filter for Extra Protection
Provides added protection in dusty environments and helps extend projector life.
3. Auto Reset Mechanism
Automatically tracks filter usage and resets the timer when a new filter is installed, without any manual setup.
IT Takes Control
Streamlined Device Management
Remote Monitoring and Diagnostics
Easily track projector status and diagnose issues remotely, eliminating frequent on-site visits.
Firmware Management Over Network
Easily update all projectors via LAN to keep firmware current without physical access.
Reliable Performance, Less Maintenance
Ensure long-term stability, freeing SI teams to focus on creative installations rather than routine upkeep.
