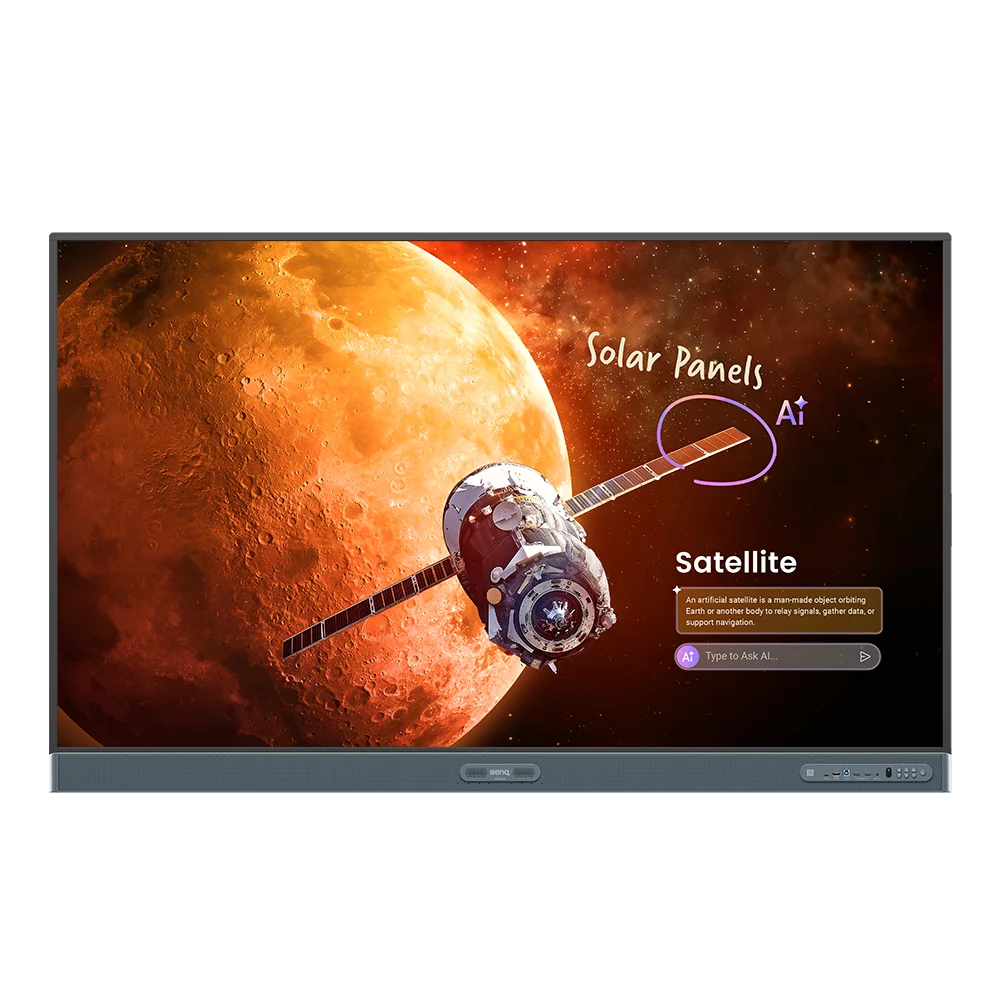

The BenQ Board Pro RP05 is a Google ELDA-certified interactive display by BenQ. It combines the computing power of an 8-core Arm Cortex chipset, Ultra Precision IR touch, top-of-the line hardware and software, a full set of ClassroomCare® technologies, and Google Mobile Services. Users of the BenQ Board can utilize the interactive display for effective and engaging learning experiences and workplace collaboration.
Specs
| Weight & dimensions |
| Width |
1709.4 mm |
| Height |
1060.8 mm |
| Depth |
130 mm |
| Power |
| Power consumption (typical) |
91.1 W |
| Power consumption (standby) |
0.5 W |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| Ports & interfaces |
| Interface |
HDMI |
| USB connector type |
USB Type-A, USB Type-B, USB Type-C |
| HDMI ports quantity |
4 |
| USB Type-C ports quantity |
3 |
| HDMI version |
2.0 |
| HDMI output ports quantity |
1 |
| USB Power Delivery (USB PD) |
Yes |
| DisplayPort version |
1.2a |
| DisplayPorts quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| VGA (D-Sub) ports quantity |
1 |
| Line-in |
Yes |
| Line-out |
Yes |
| OPS slot |
1 |
| S/PDIF out port |
Yes |
| Microphone connectivity |
3.5 mm |
| Headphone connectivity |
3.5 mm |
| RS-232 ports |
1 |
| Audio |
| Built-in speaker(s) |
Yes |
| Number of built-in speakers |
2 |
| Speaker power |
25 W |
| Built-in subwoofer |
Yes |
| Subwoofer RMS power |
20 W |
| Built-in microphone |
Yes |
| Number of microphone arrays |
8 |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
20 - 80% |
| Storage temperature (T-T) |
-20 - 60 °C |
| Storage relative humidity (H-H) |
10 - 60% |
| Packaging data |
| Package width |
1863 mm |
| Package depth |
205 mm |
| Package height |
1170 mm |
| Package weight |
45.1 kg |
| Quantity per pack |
1 pc(s) |
| Packaging content |
| Manual |
Yes |
| Cables included |
HDMI, USB Type-C |
| Remote control included |
Yes |
| Mounting kit |
Yes |
| Stylus included |
Yes |
| Number of stylus pens |
2 |
| Ergonomics |
| Product colour |
Black |
| VESA mounting |
Yes |
| Panel mounting interface |
800 x 400 mm |
| Wall mountable |
Yes |
| Projector |
| Built-in projector |
No |
| Performance |
| Temperature sensor |
Yes |
| Display |
| Display diagonal |
190.5 cm (75") |
| Touchscreen |
Yes |
| Working area |
1649.7 x 927.9 mm |
| Display brightness |
450 cd/m² |
| Display resolution |
3840 x 2160 pixels |
| Anti-glare screen |
Yes |
| HD type |
4K Ultra HD |
| Panel type |
IPS |
| Native aspect ratio |
16:9 |
| Contrast ratio (typical) |
1500:1 |
| Contrast ratio (dynamic) |
50000:1 |
| Response time |
8 ms |
| Touch technology |
Multi-touch |
| Touchscreen type |
Infrared |
| Number of simultaneous touchpoints |
50 |
| Touch system response time |
2.5 ms |
| Colour gamut |
72% |
| Surface material |
Tempered glass |
| Hardness |
9H |
| Network |
| Wi-Fi |
Yes |
| Top Wi-Fi standard |
Wi-Fi 6 (802.11ax) |
| Bluetooth |
Yes |
| Bluetooth version |
5.2 |
| Ethernet LAN |
Yes |
| Near Field Communication (NFC) |
Yes |
| Sustainability |
| Sustainability certificates |
ENERGY STAR |
| Computer system |
| Operating system installed |
Android |
| Operating system version |
15 |
| Built-in processor |
Yes |
| Processor architecture |
ARM Cortex A78 + ARM Cortex A55 |
| Processor cores |
8 |
| Maximum internal memory |
128 GB |
| RAM capacity |
16 GB |
| Graphics card family |
ARM |
Features
BenQ RP7505. Display diagonal: 190.5 cm (75"), Working area: 1649.7 x 927.9 mm, Display brightness: 450 cd/m². Operating system installed: Android, Processor architecture: ARM Cortex A78 + ARM Cortex A55, Maximum internal memory: 128 GB. Speaker power: 25 W, Subwoofer RMS power: 20 W. Top Wi-Fi standard: Wi-Fi 6 (802.11ax). Interface: HDMI, USB connector type: USB Type-A, USB Type-B, USB Type-C, DisplayPort version: 1.2a
Product Description
The BenQ Board Pro RP05 is a Google ELDA-certified interactive display by BenQ. It combines the computing power of an 8-core Arm Cortex chipset, Ultra Precision IR touch, top-of-the line hardware and software, a full set of ClassroomCare® technologies, and Google Mobile Services. Users of the BenQ Board can utilize the interactive display for effective and engaging learning experiences and workplace collaboration.
